Junction Box Mounting Bracket for IP Turrets and Varifocal Cameras

Junction Box Mounting Bracket for IP Turrets and Varifocal Cameras

Name: Junction Box Mounting Bracket for IP Turrets and Varifocal Cameras
Brand: Camera Brackets
SKU: SCD-JB03H-BK
Price: 8.74 USD
Availability: InStock

Camera BracketsSKU: SCD-JB03H-BK

Color:

Variant

Price:

$8.74 USD

Stock:

In stock

Quantity:

Share this product

Description
Product Weights

Description

Overview

This junction box mounting bracket is designed to mount a turret IP camera or varifocal camera. It has side and bottom inlets for easier installation. It is constructed of treated aluminum alloy material for better protection against the elements in outdoor applications.

Specifications

Physical Characteristics
Color	Black / White
Material	Aluminum alloy

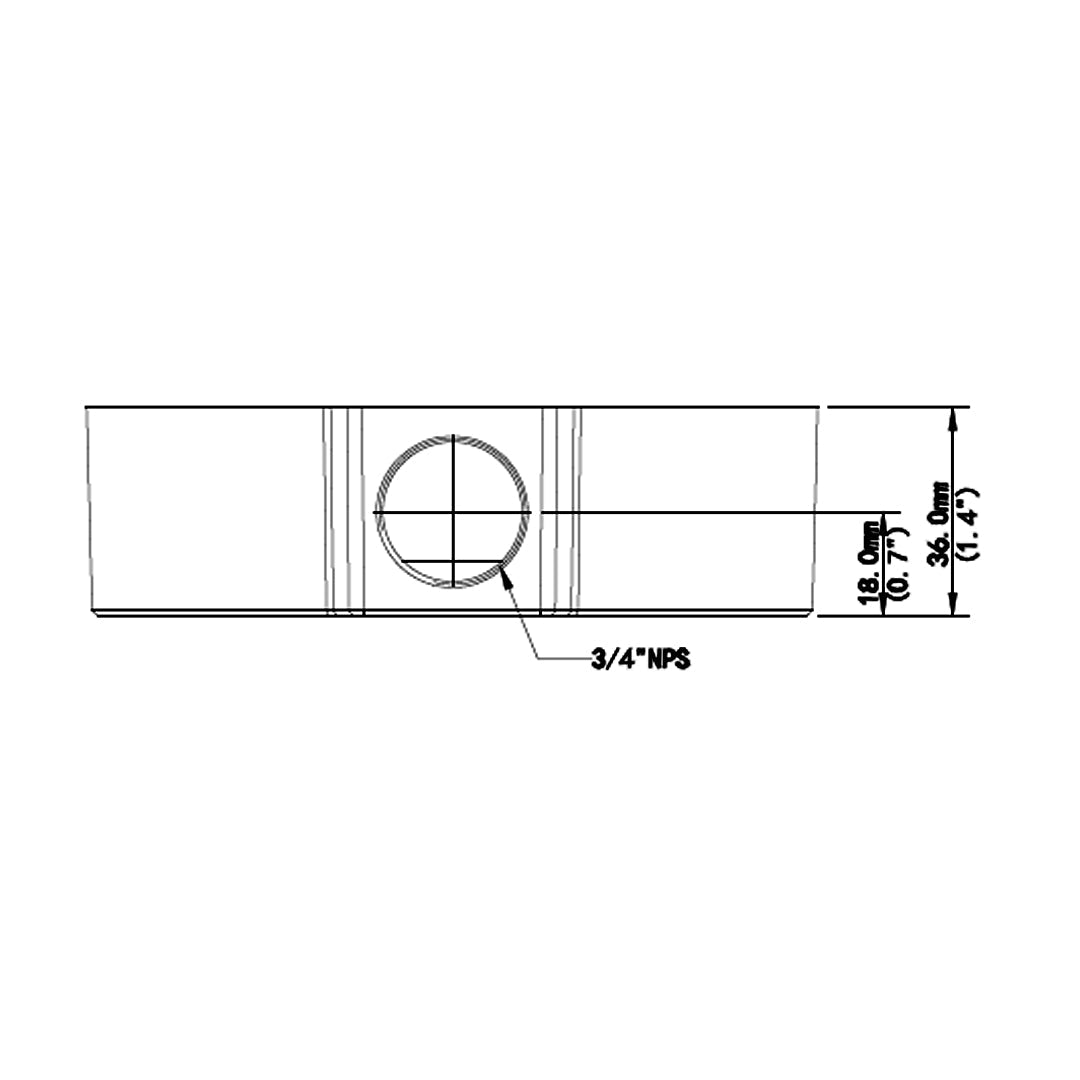

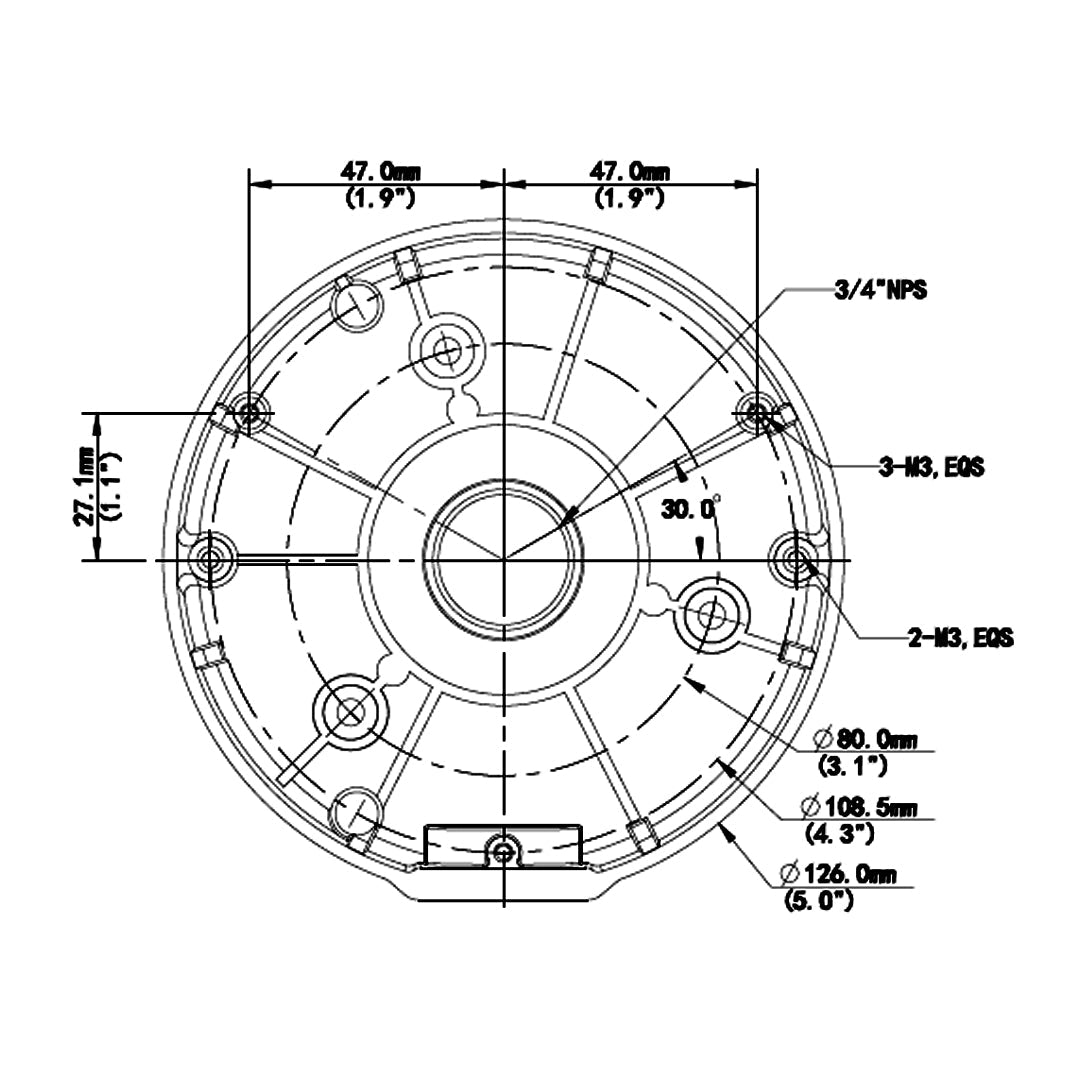

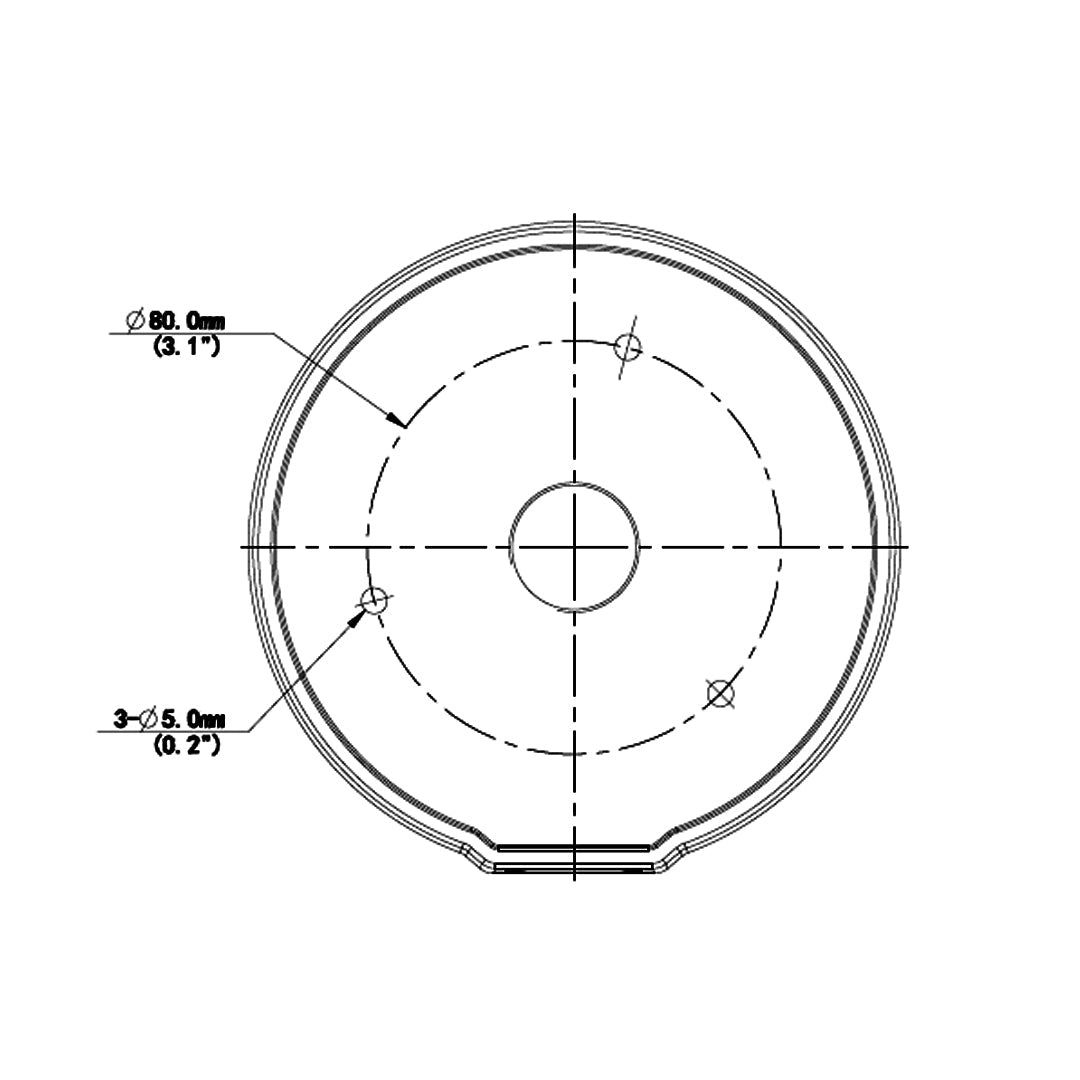

Dimensions	‚¬ 126 mm x 36 mm (4.96" x 1.42")
Compatibility
SCD-4TR100-xx	4MP Turret IP Camera - Fixed Lens - Smart IR - HLC - IP67 Rated
SCD-4TR200-xx	4MP Turret IP Camera - Fixed Lens - Smart IR - WDR - HLC - Microphone - IP67 Rated
SCD-8TR100-xx	8MP Turret IP Camera - Fixed Lens - IR - Microphone - IP67 Rated
SC-3H43F-IGZ	4MP Varifocal Turret IP Camera - 2.8~12mm - Smart IR - IP67 Rated - White
SC-8153FW-I-F14	5MP Fisheye IP Camera - 1.4mm Fixed Lens - WDR - Microphone - IP66 IK10 Rated - White
CG-NPT075-xx	Cable Gland 3/4 inch NPT Thread - Cable OD 13~18mm - IP68
Packaging Information
Package Quantity	1
Product Weight	0.53 lbs [0.24 kg]
