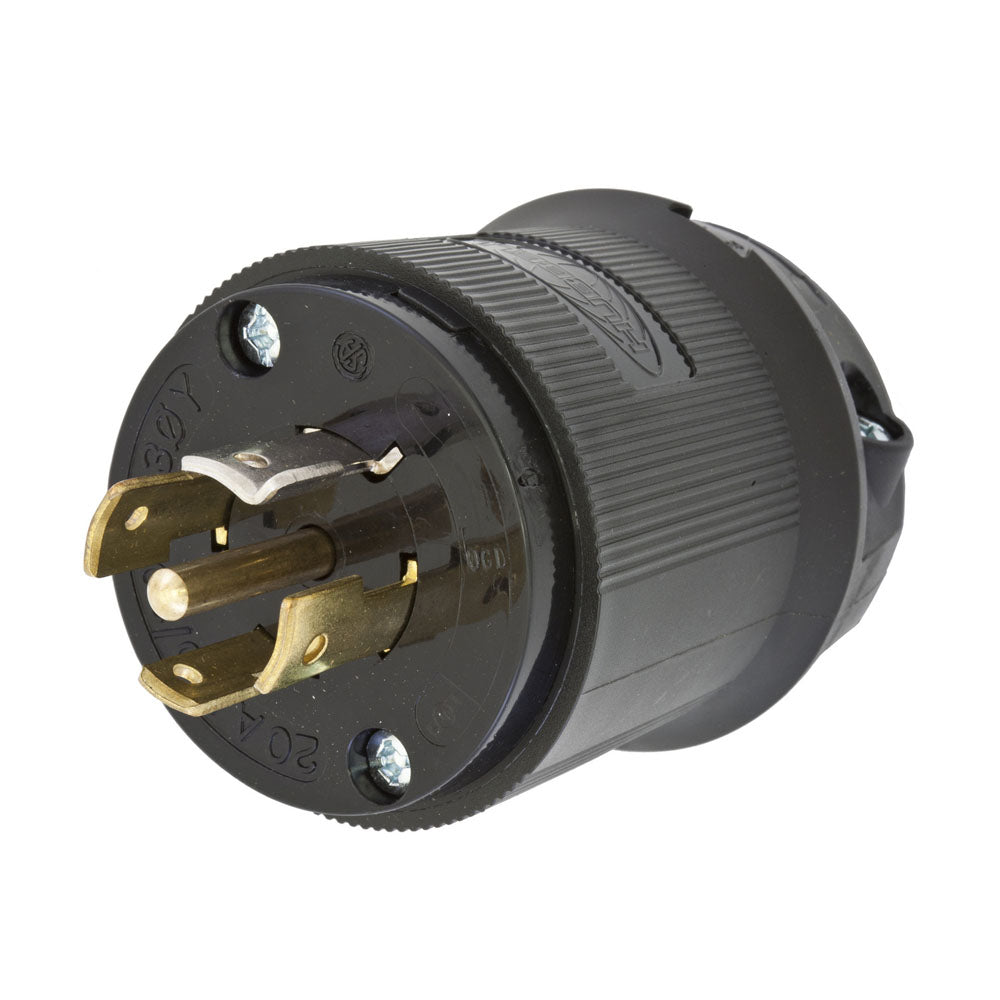

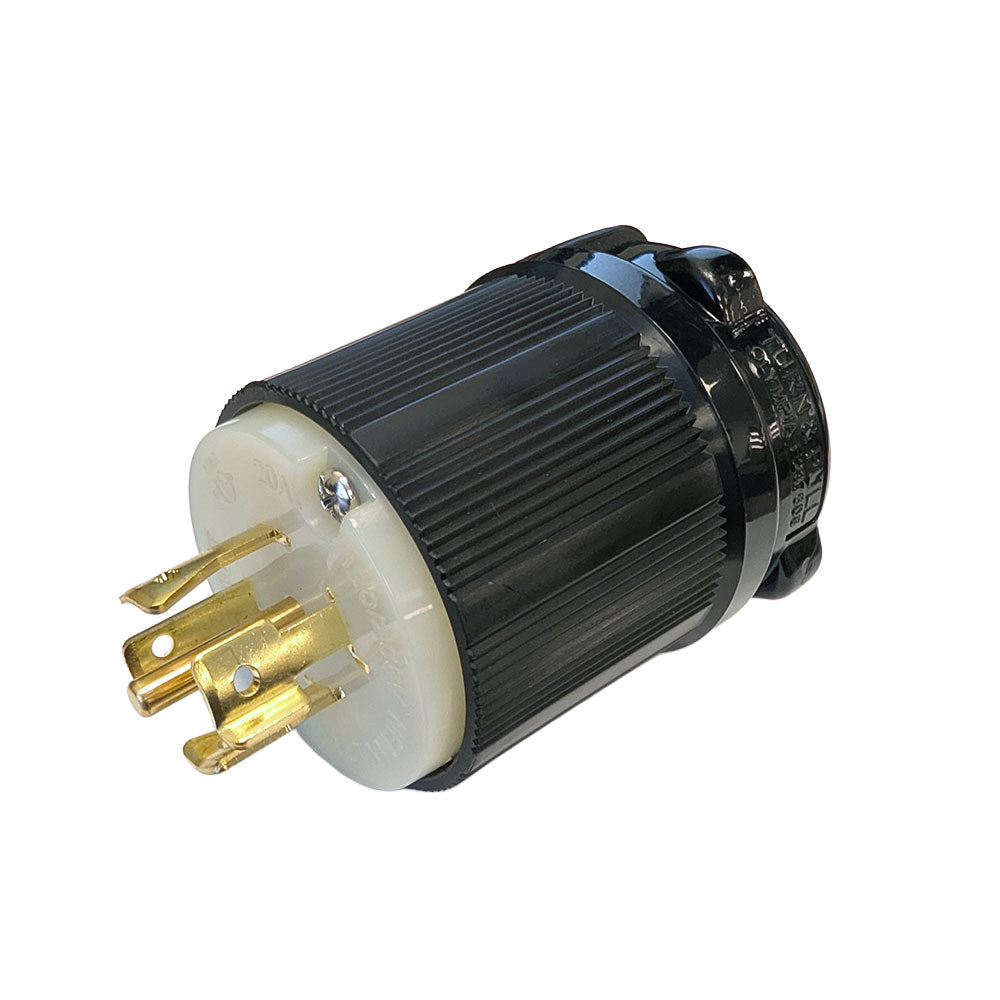

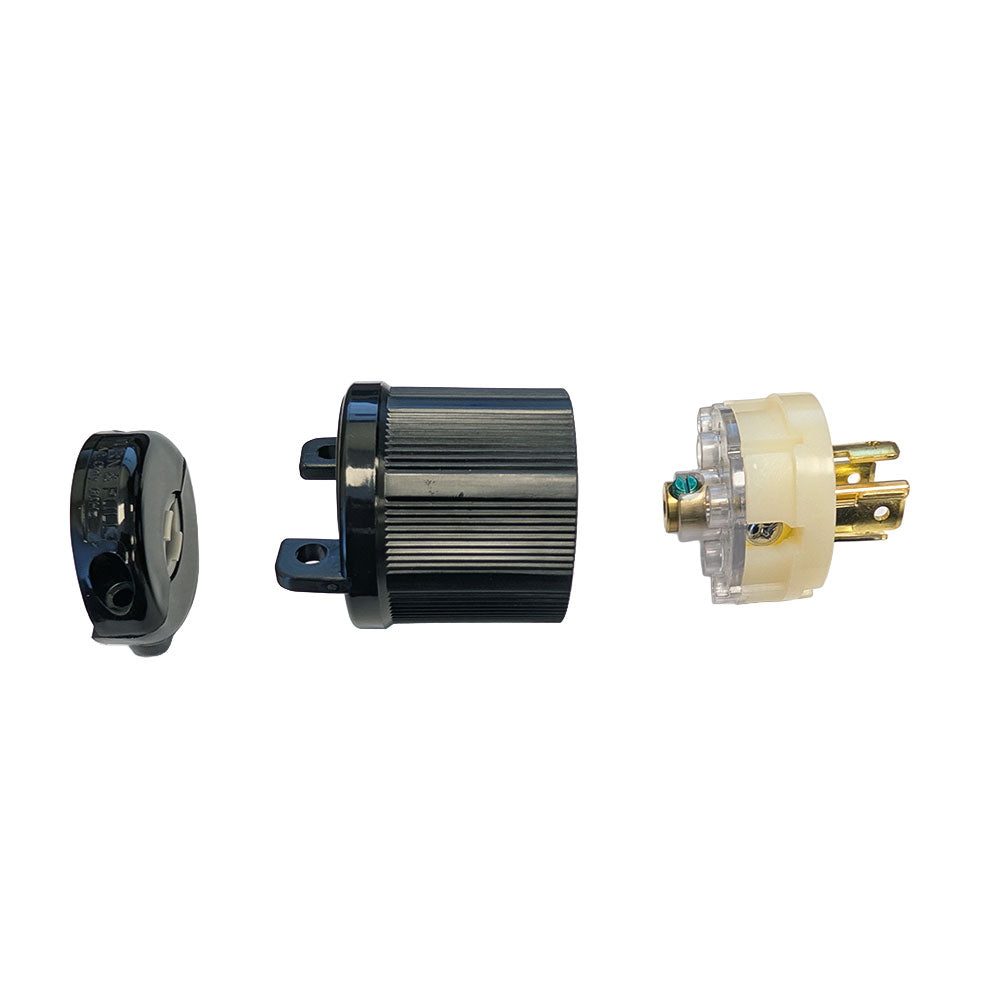

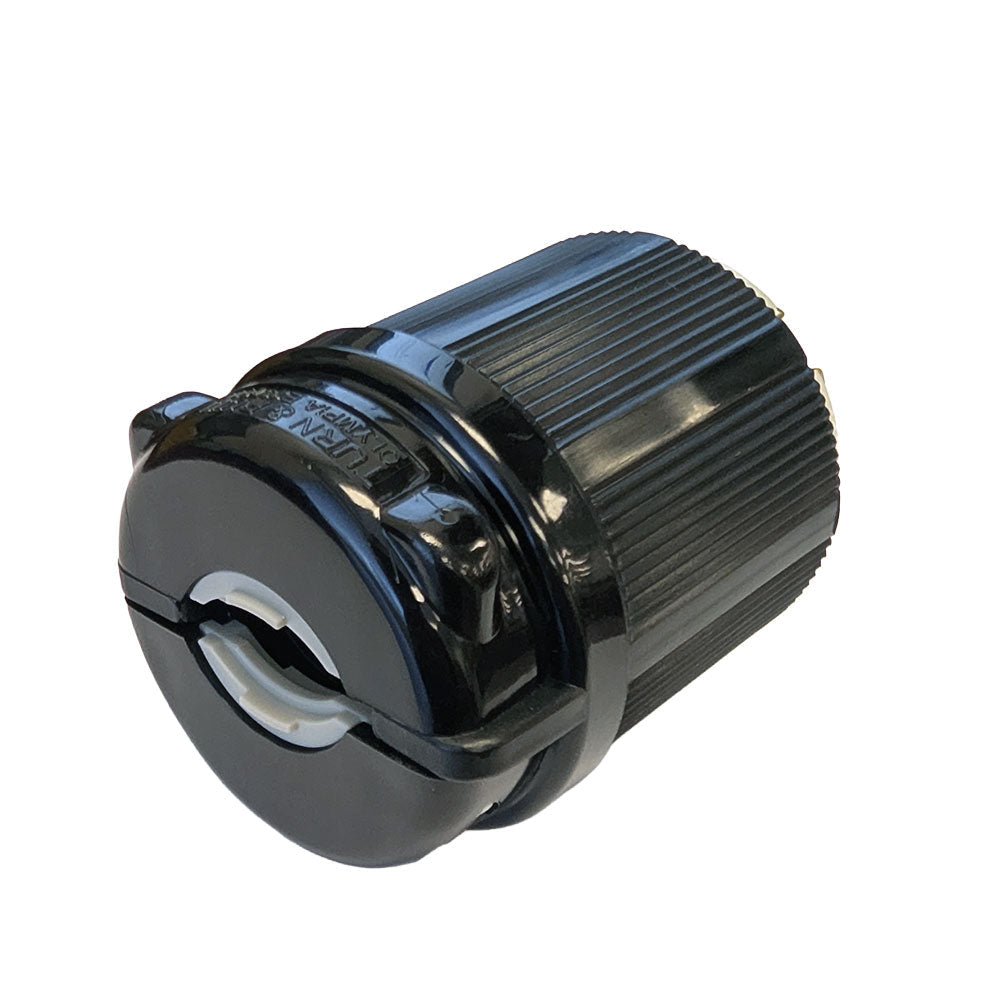

This L21-20P power cord connector is a 4-pole 5-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
|
Physical Characteristics
|
| No. of Poles |
4-Pole |
| No. Of Conductor |
5 Conductor |
| Connectivity |
Screw Terminals |
| Material |
Polycarbonate |
| Operating Temperature |
Maximum continuous 75ā and Minimum -40ā without Impact |
| Cable Diameter Range |
0.350 - 1.150 inch |
| Wire Gauge Compatibility
|
| L21-20P |
Male |
|
Approvals
|
| UL |
Yes |
| CSA |
Yes |
|
Environmental
|
| RoHS |
Yes |
|
Packaging Information
|
| Package Quantity |
1 |
| Product Weight |
0.15 lbs [0.06kg] |
