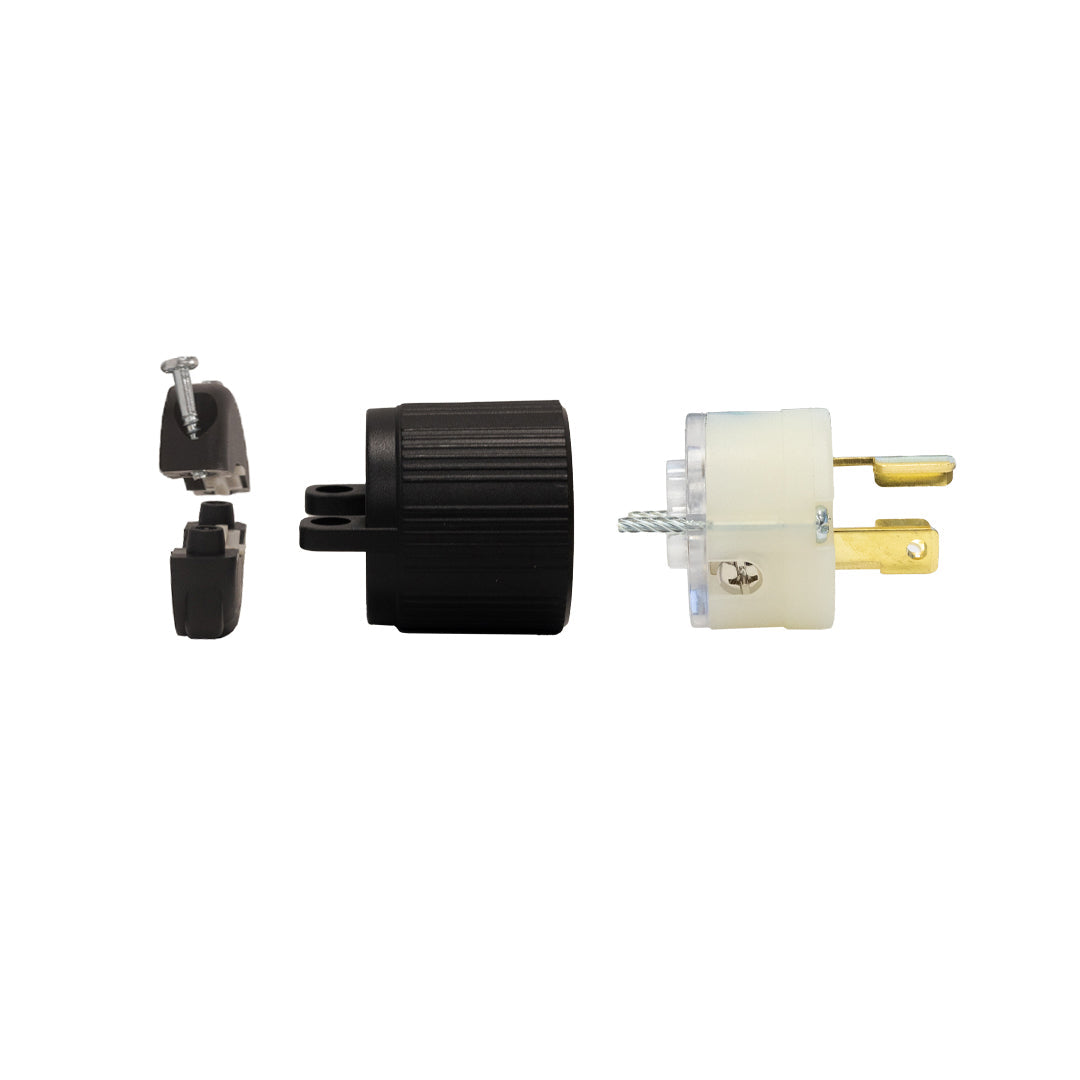

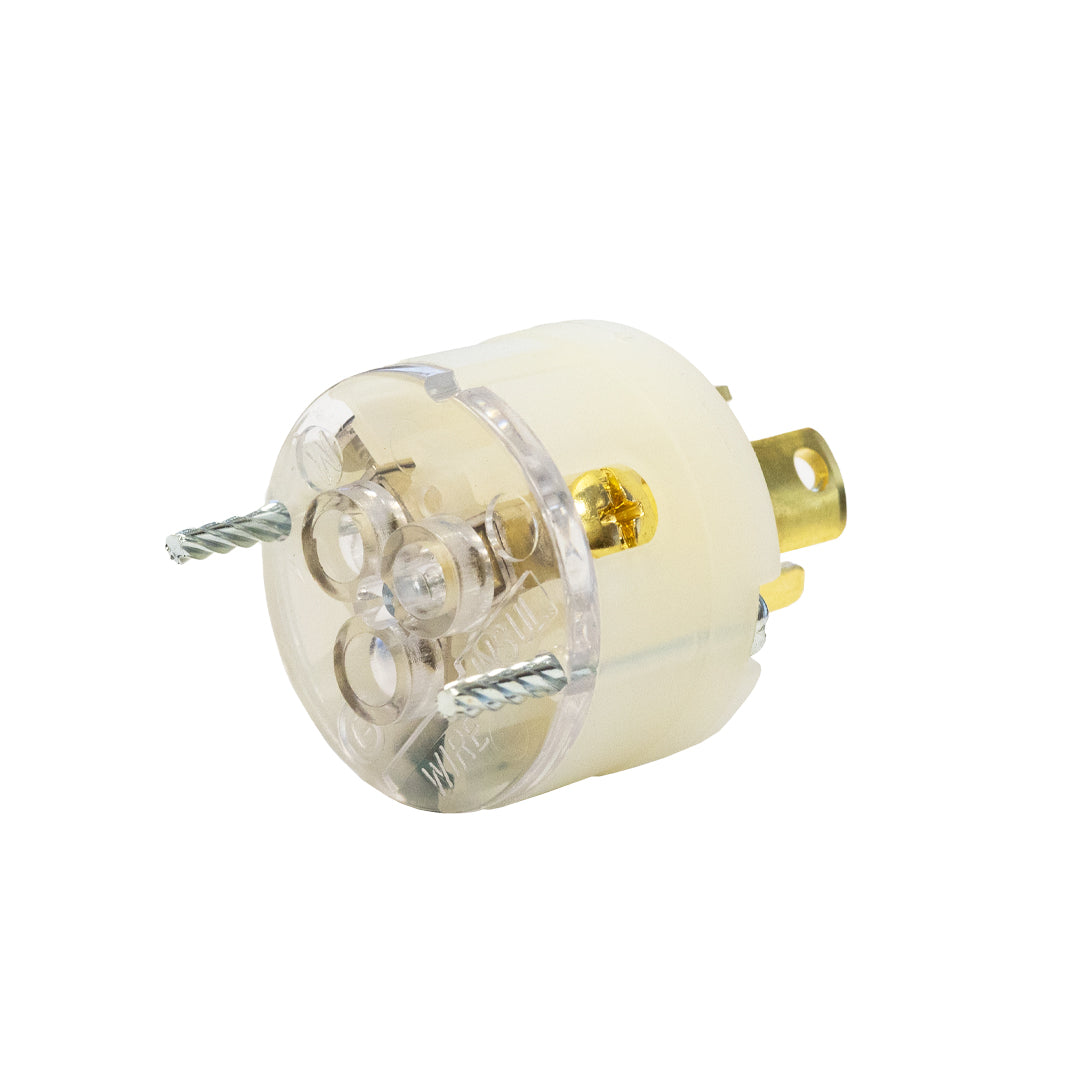

This L5-15P power cord connector is a 2-pole 3-conductor grounding heavy-duty plug. The tough nylon body provides impact and chemical resistance. The powerful offsetting cord grip clamps on individual conductors and outer cord jackets prevent strain on the terminals.
| Physical Characteristics |
| No. of Poles |
2-Pole |
| No. Of Conductor |
3 Conductor |
| Connectivity |
Screw Terminals |
| Material |
Polycarbonate |
| Operating Temperature |
Maximum continuous 75ā and Minimum -40ā without Impact |
| Cable Diameter Range |
0.230 - 0.720Ā inch |
| Wire Gauge Compatibility |
8-16AWG |
| Power Rating |
15A 125V |
| Phase |
Single Phase |
| Manufacturing Information |
| LegrandĀ Part No. |
PSL515P |
| Connectors |
| L5-15P |
Male |
| Approvals |
| UL |
Yes |
| CSA |
Yes |
| Environmental |
| RoHS |
Yes |
| Packaging Information |
| Package Quantity |
1 |
| Product Weight |
0.15 lbs [0.06kg] |
