L6-20P to C15 Power Cable - 14AWG - SJT Jacket

AC Power CordsSKU: PWC-144-08

Length: 8ft
Price:
Sale price$13.56 USD
Stock:
In stock

Description

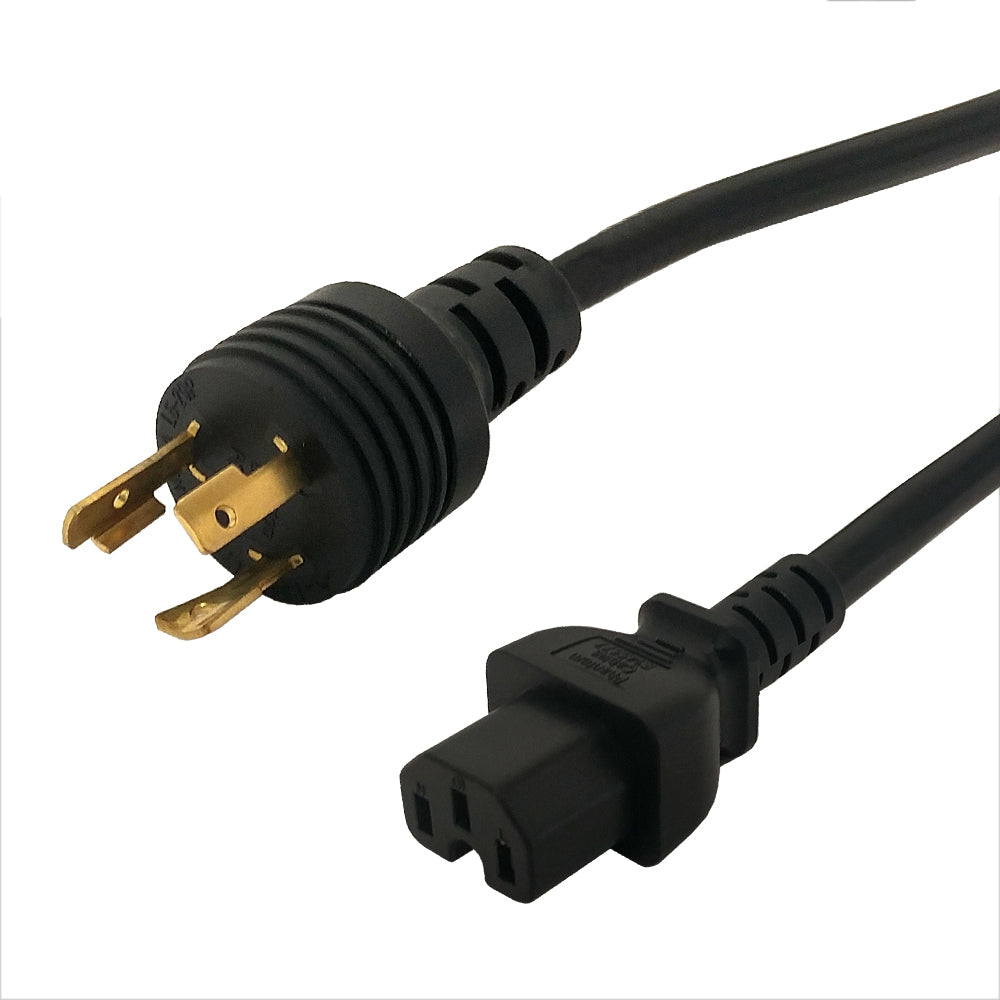

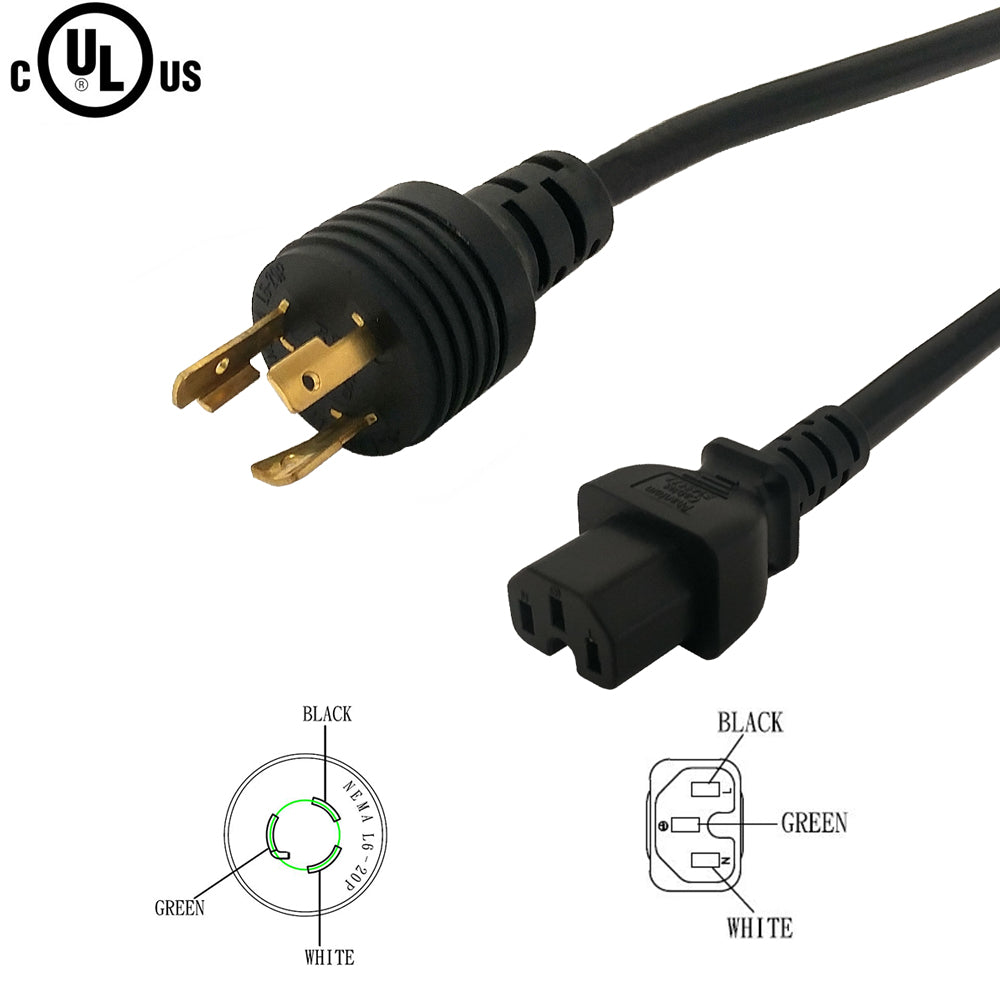

This power cord consists of a L6-20P male on one end and a C15 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 14 AWG
Jacket Heavy duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A NEMA L6-20P
Connector B IEC C15
Performance
Power Rating 15 Amp / 250 Volt
Approvals
6-20P c(UL)us
C15 c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
8ft 12ft
0.86 lbs 1.30 lbs

Product Weight

8ft
PWC-144-08
0.85 lb
12ft
PW-144-12
1.23 lb
