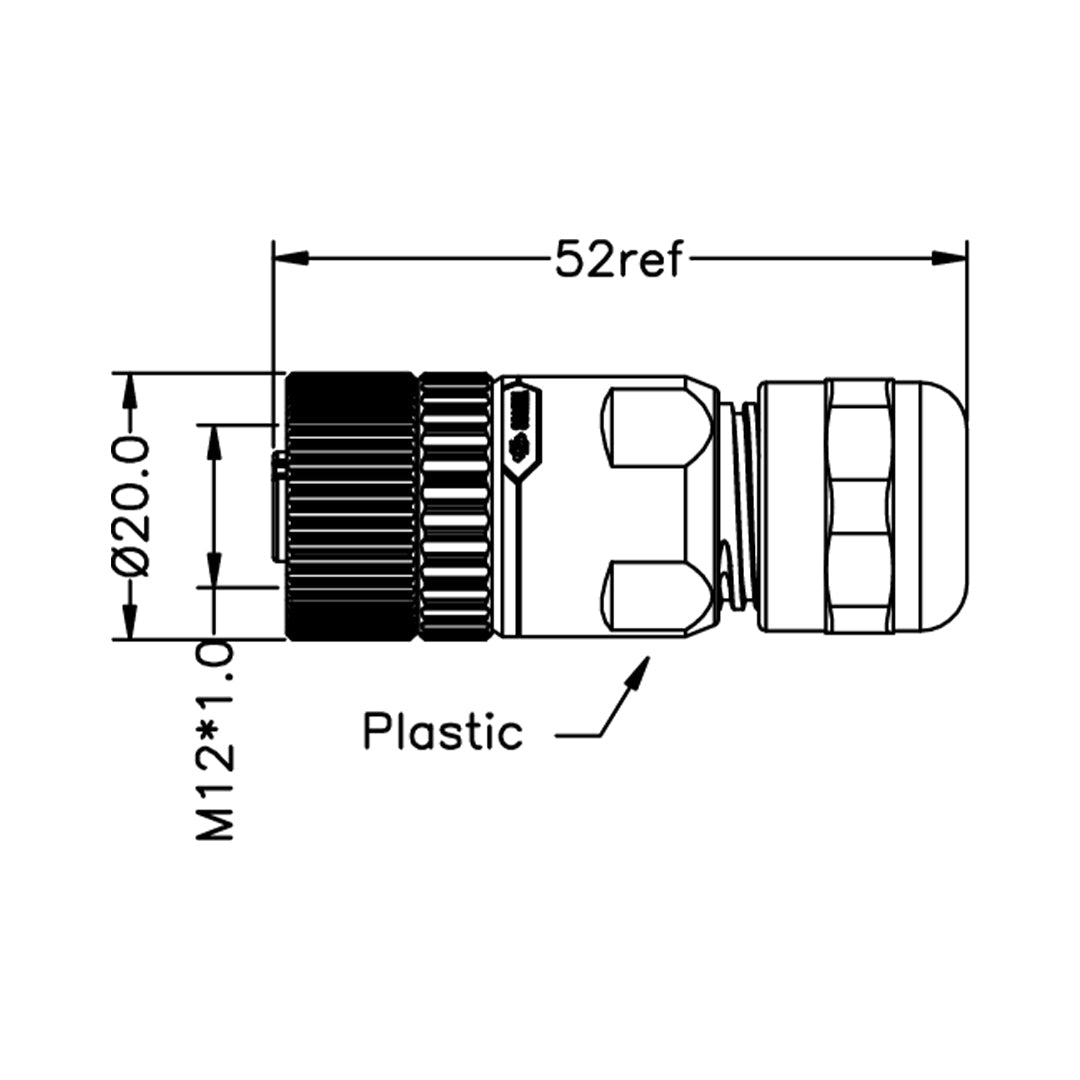

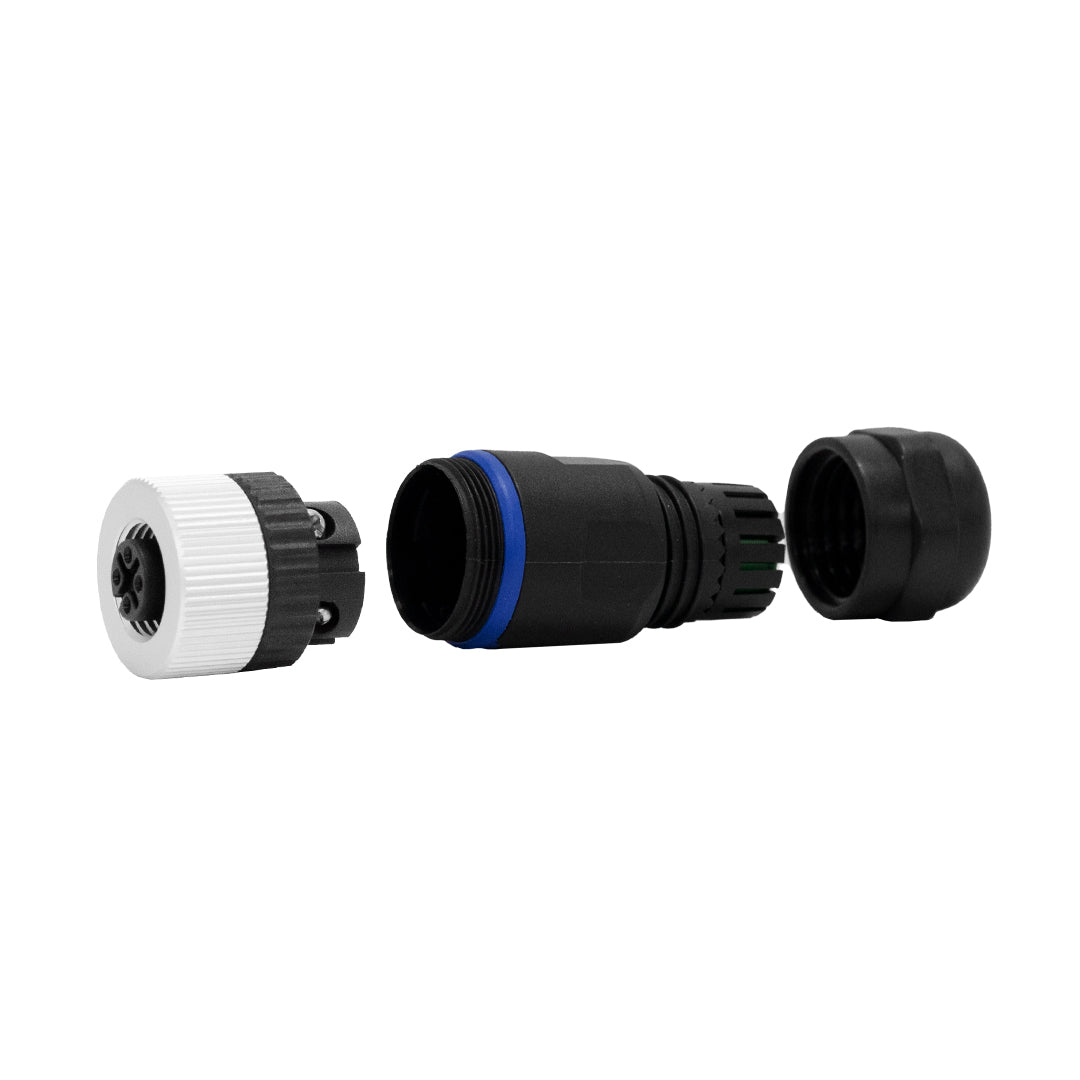

M12 4-pin A-Code Female Connector


Price:
Sale price$8.65 USD
Stock:
In stock
Notify me when available


Description

Overview

This M12 A-coded 4-pin female straight connector features a plastic housing and screw clamp for 6–8mm cables. With 250V/4A power rating, it’s ideal for industrial automation, sensors, robotics, and more.

Specifications

Physical Characteristics
Color Black
Gender Female
Housing Plastic
Contacts 4
Termination Screw clamp
Cable Diameter 6 ~ 8mm
Pin Contact Material Copper-zinc alloy (CuZn)
Socket Contact Material
Copper-tin alloy (CuSn)
Contact Plating Material Gold
Mechanical Operation >100 mating cycles
Temperature Range -25℃ to 85℃
Rated Voltage 250V
Rated Current(40℃) 4A
Contact Resistance ≤10mΩ
Insulation Resistance ≥100MΩ
Approvals/Environmental
RoHS Compliant
IP67/68 Compliant
