Description

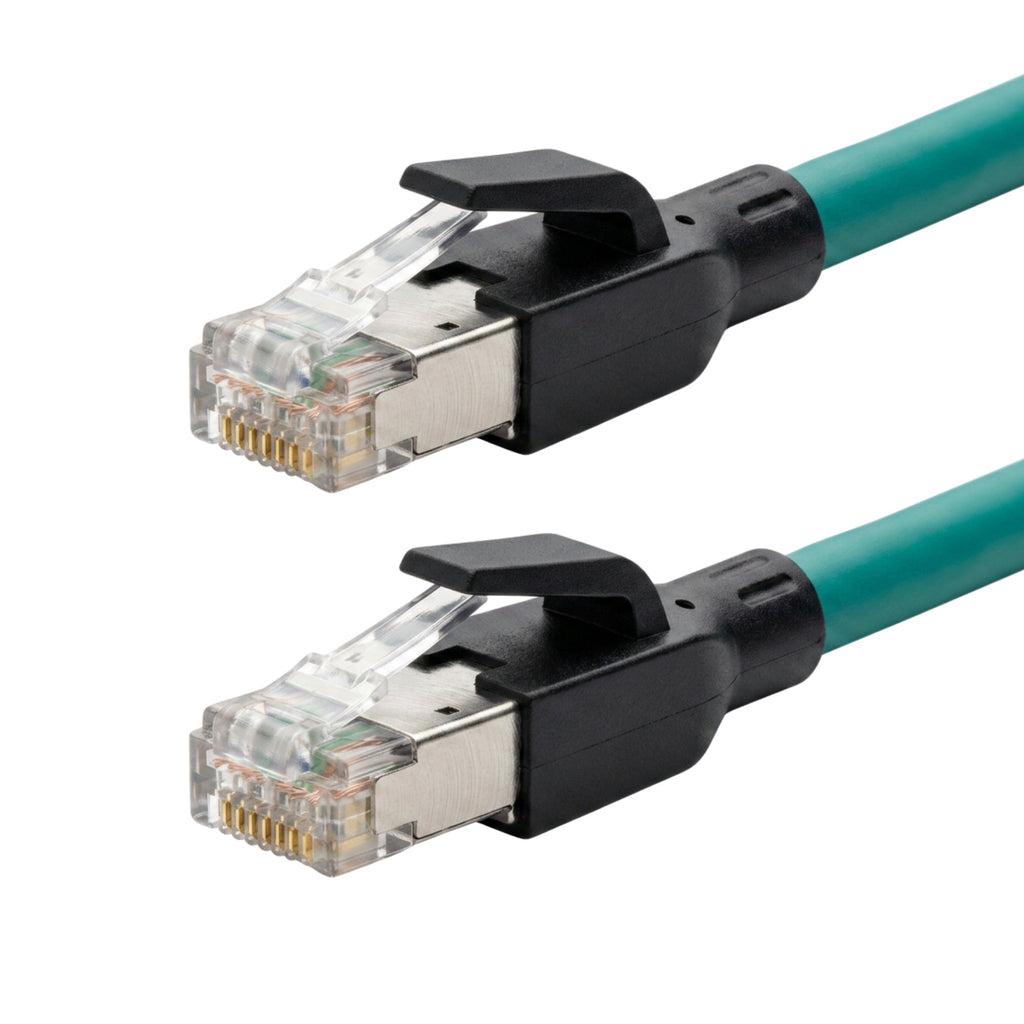

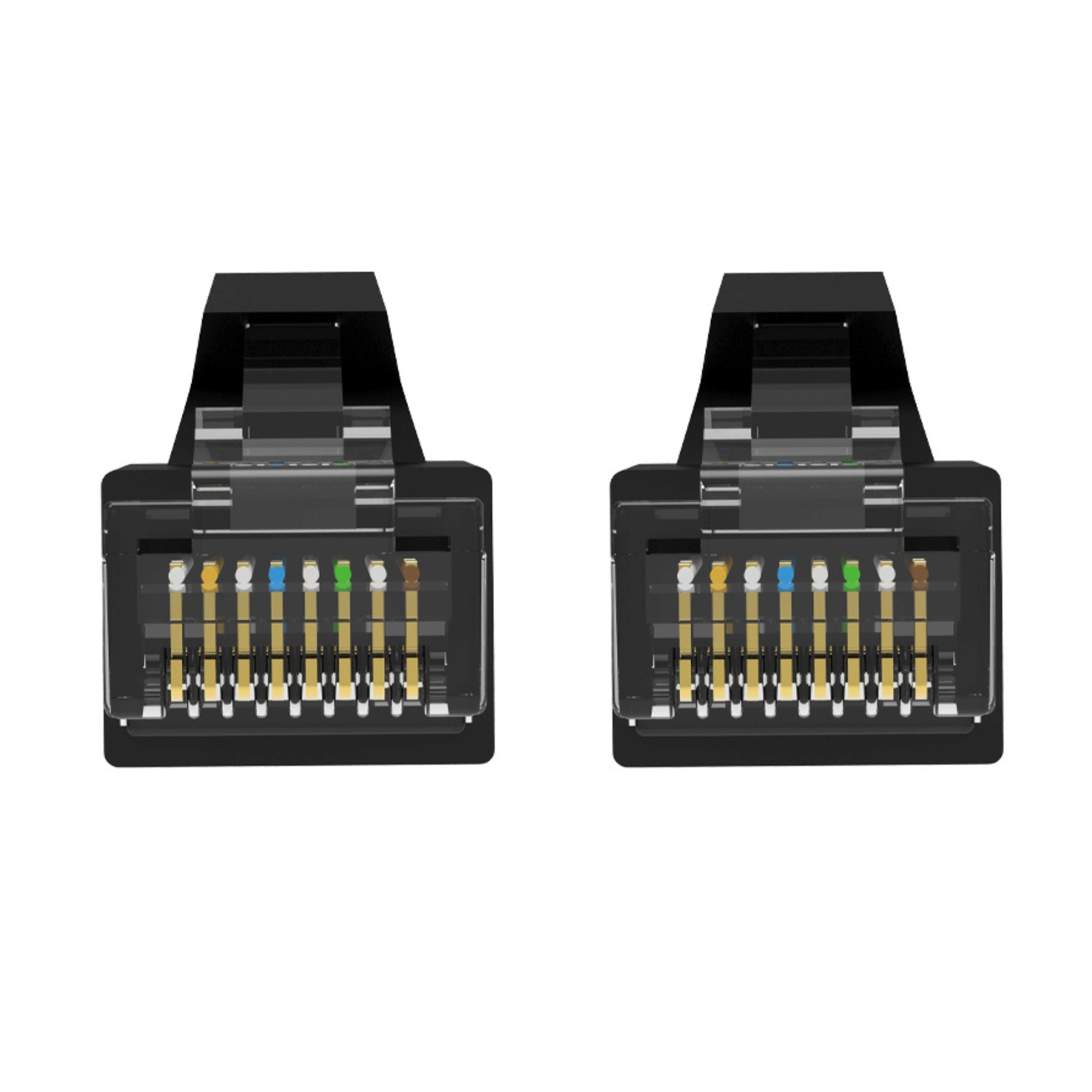

This M12 8-pin RJ45 Male Straight to RJ45 Male Straight cable is designed for industrial automation network protocols with up to 10G speeds, such as Ethernet/IP, EtherCAT, and PROFINET. It is suitable for use in drag chain applications or systems with constant movement and is commonly used to interconnect process controls, robotics, and automation systems.
- M12 RJ45 Male to RJ45 Male, 8 Positions
- CAT6A SF/UTP, PUR Jacket, Drag Chain Rated
- High-flex design suitable for industrial environments
| Connector Details | |
|---|---|
| Connection | RJ45 |
| Angle Cable Outlet | 0° |
| Gender | Male |
| No. of Poles | 8 |
| Body Color | Black |
| Degree of Protection | IP20 |
| Shielded | Yes |
| Cable Details | |
| Overall Braid and Foil Shield | Yes |
| Conductor Structure | 30 × 0.08mm |
| AWG | 26 |
| External Sheath Material | PUR |
| External Sheath Color | Teal |
| Cable Diameter | 6.8 ± 0.2mm |
| Wire Cross Section | 36.3mm² |
| Electrical & Mechanical Data | |
| Operating Voltage | max. 60VDC |
| Nominal Voltage | 300V |
| Contact Resistance | max. 30 mΩ |
| Operating Current per Contact | max. 0.5A |
| Bending Radius (mobile) | min. 15 × outer diameter |
| Bending Radius (fixed) | min. 8 × outer diameter |
| Torsion Capable | 5 million times |
| Drag Chain Capable | 10 million times |
| Flame Resistance | HB (UL94) |
| Oil Resistance | ASTM 1 oil, mineral oils, limited to hydraulic oils |
| Acid and Alkali Resistant | No |
| Chemical Resistance | No |
| Environmental Conditions | |
| Temperature Range (mobile) | -25°C to +70°C |
| Temperature Range (fixed) | -25°C to +80°C |
| Cable Temperature Range (fixed) | -40°C to +80°C |
