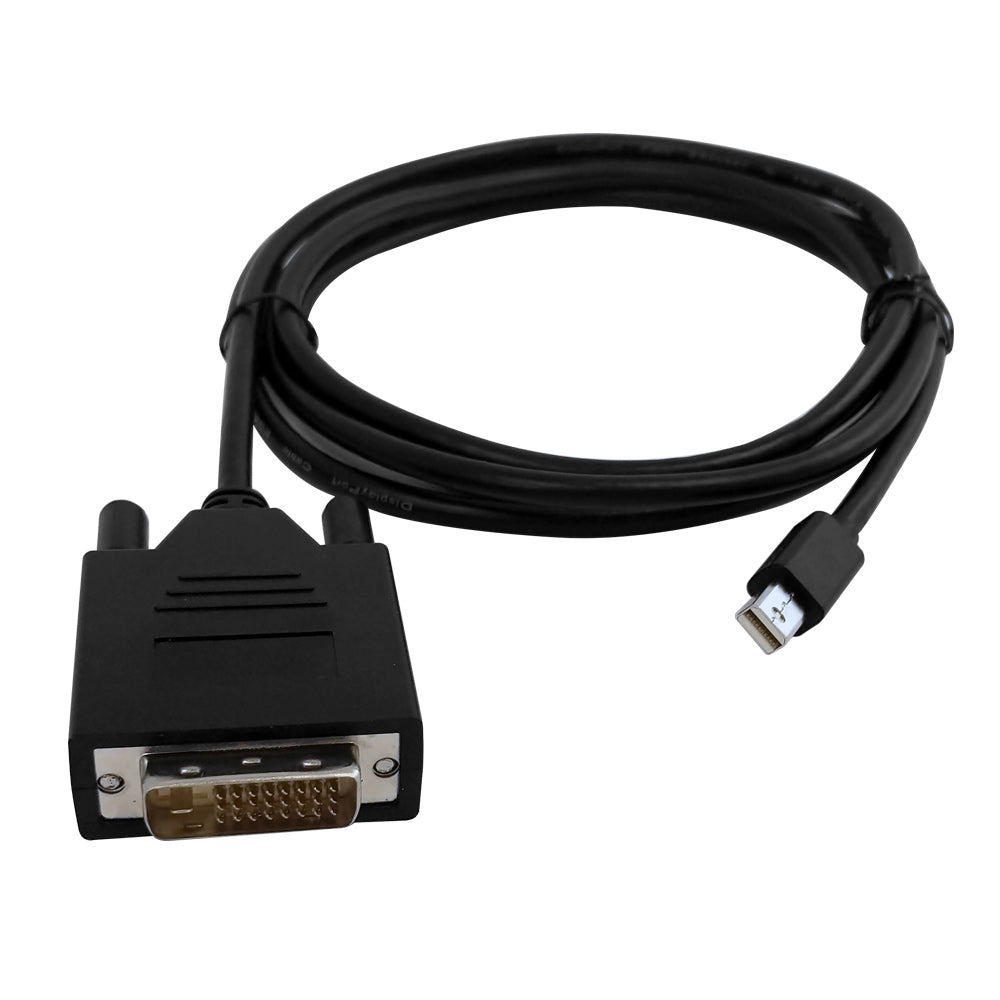

This cable consists of a Mini DisplayPort male on one end and a DVI male on the other end. It is typically used to connect a Mini DisplayPort source (MacBook Pro, MacBook Air, etc.) to a DVI monitor. This cable in uni-directional, therefore it will only work from a Mini DisplayPort source to a DVI display and not in the reverse direction.
This cable supports maximum video resolutions up to HD 1920x1080p. It supports higher performance, higher resolutions and color depths, and fastest refresh rates utilizing DisplayPort v1.2.
Gold Plated Connectors
The gold plated connectors deliver optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.
Used in Common Instances
This cable can be used in common instances - for example, connecting a MacBook to a monitor or a projector, at the highest possible resolution available.
|Cable Diameter||7.3 mm|
|Jacket Material||PVC - Polyvinyl Chloride|
|Strain Relief||Molded PVC|
|Temperature Rating||80 deg C|
|Connector A||DVI Single Link Male|
|Connector B||Mini DisplayPort Male|
|Resolution||Full HD 1920x1080p|
|Product Weight||0.19 lbs [0.08 kg]|
|Warranty||2 Years Warranty|
|0.10 lbs||0.19 lbs||0.28 lbs|
Infinite Cables Inc. offers a 2-year warranty on part number(s) USB-E3xx to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
