Description
Overview

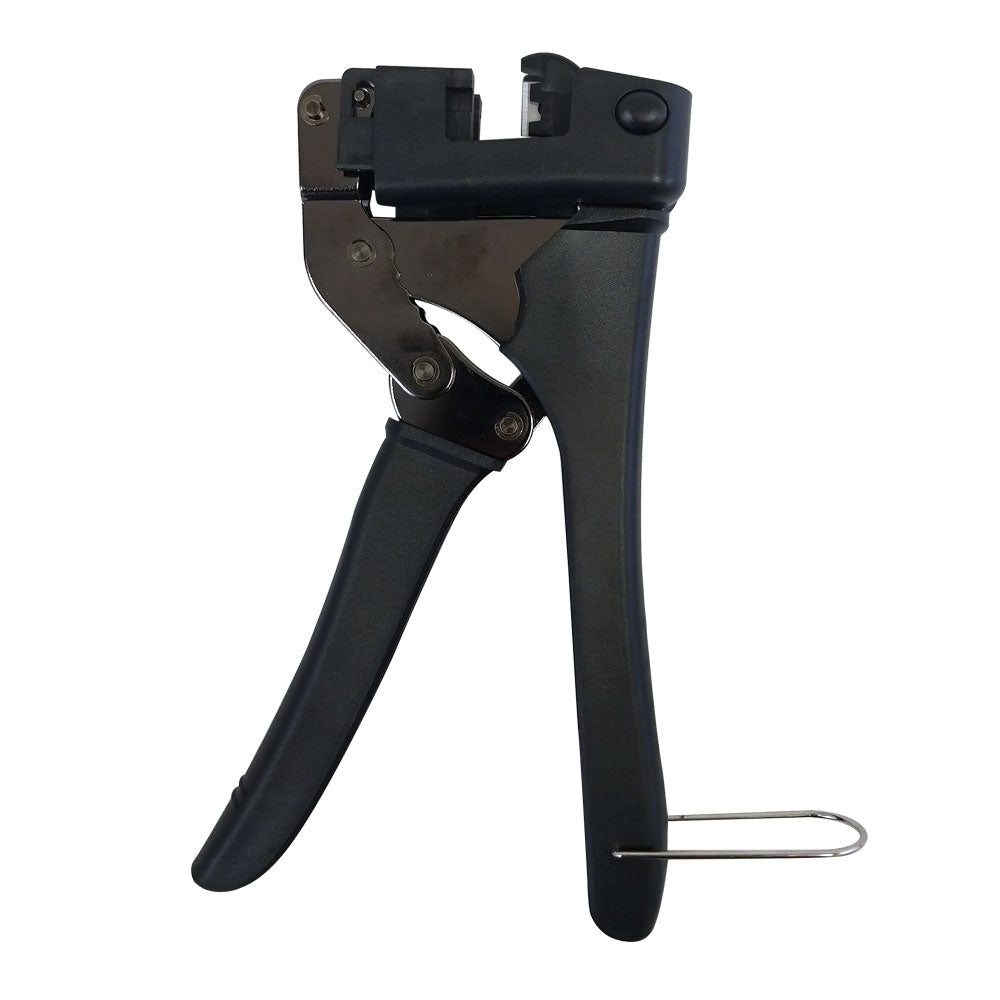

This punch-down tool is used to terminate 90 degree 110 style jacks. It allows for faster and more accurate jack termination with one simple motion. It also features built-in blades which cut off excess wire after termination. The tool is designed with a durable steel body with an ergonomically friendly handle.
 |
Reduces installation timeThis punch-down tool saves time and increases accuracy by seating and terminating all wires at once with a simple squeeze of the handle, it allows you to terminate jacks eight times faster. Easy-to-use with efficiencyThe built-in blades cut off the excess wires after termination which makes terminating jacks a simple one-handed operation. The ergonomically designed handle reduces hand fatigue which speeds up the termination process. |
Specifications
Compatible Jacks
| Physical Characteristics | |
|---|---|
| Color | Black |
| Material | Polycarbonate, UL 94V-2 SPCC,2.0mm thickness with 5~8um nickelage |
| Operating Function |
For Keystone Jacks |
| Operating Temperature |
-20Ā°C to +70Ā°C |
| Storage Temperature |
-20Ā°C to +80Ā°C |
| Ratchet |
No |
| Connectors | |
| Terminal Block Type | 110 |
| Compatible Jacks | |
| Note: TL-PUM-90Ā compatible only with below Jacks.Ā | |
| JK-C5P1-XX JK-C6P1-XX JK-C6AP1-XX |
RJ45 Cat5e Slim Profile Jack, 110 Punch-Down RJ45 Cat6 Slim Profile Jack, 110 Punch-Down RJ45 CAT6A Slim Profile Jack, 110 Punch-Down |
| Compatible Die Set | |
| TL-PUM-90-DIESET |
90 Degree Die Set for Punch-Down Tool |
| TL-PUM-180-DIESET | 180 Degree Die Set for Punch-Down Tool |
Product Weights
| SKU | Weight | |
| TL-PUM-90 | 1.14 lb |
