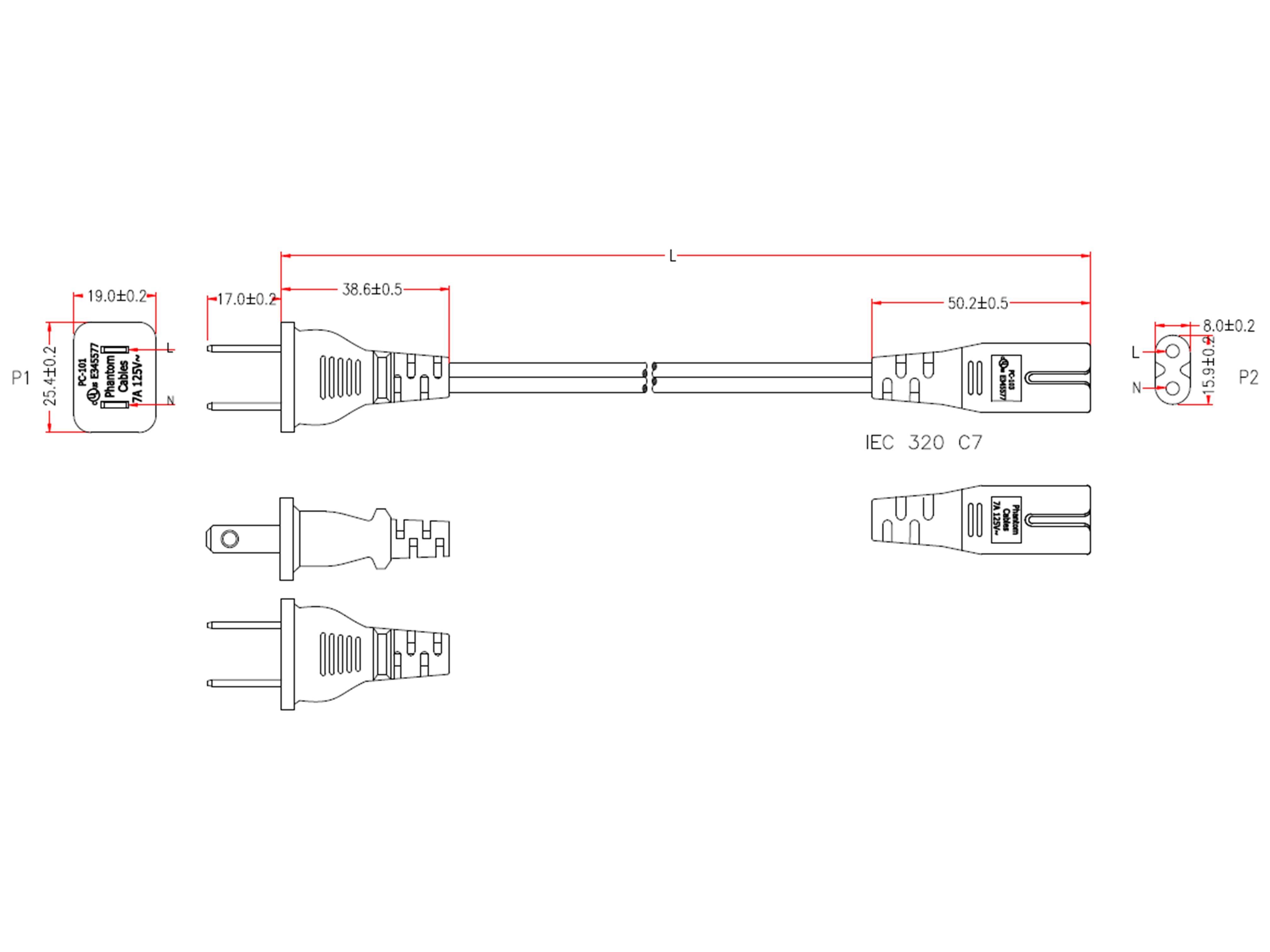

NEMA 1-15P to IEC C7 Non-Polarized Power Cable - 18AWG - SPT-2

AC Power CordsSKU: PWC-115-01.5

Length: 1.5ft
Price:
Sale price$1.38 USD
Stock:
In stock

Description

Overview

This power cord consists of a 1-15P male on one end and a C7 female on the other end. It is typically used to connect a wall outlet to a AC/DC power supply or directly to equipment. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

100% Continuity and High Voltage Tested

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

c(UL)us Approved

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.

Specifications

Physical Characteristics
Color Black
Number of Conductors 2 Conductor
Wire Gauge 18 AWG
Jacket SPT-2
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Conductor Material 100% bare copper
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A NEMA 1-15P (2-prong)
Connector B IEC 60320 C7
Performance
Power Rating 7 Amp / 125 Volt
Approvals
1-15P c(UL)us
C7 c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1.5ft 3ft 6ft 12ft 25ft
0.10 lbs 0.14 lbs 0.23 lbs 0.41 lbs 0.77 lbs
