1ft NEMA 5-15/20R to IEC C20 Power Cable - 14AWG - SJT Jacket (15A 125V)

AC Power CordsSKU: PWC-109C-01

Sale price$4.07 USD
In stock

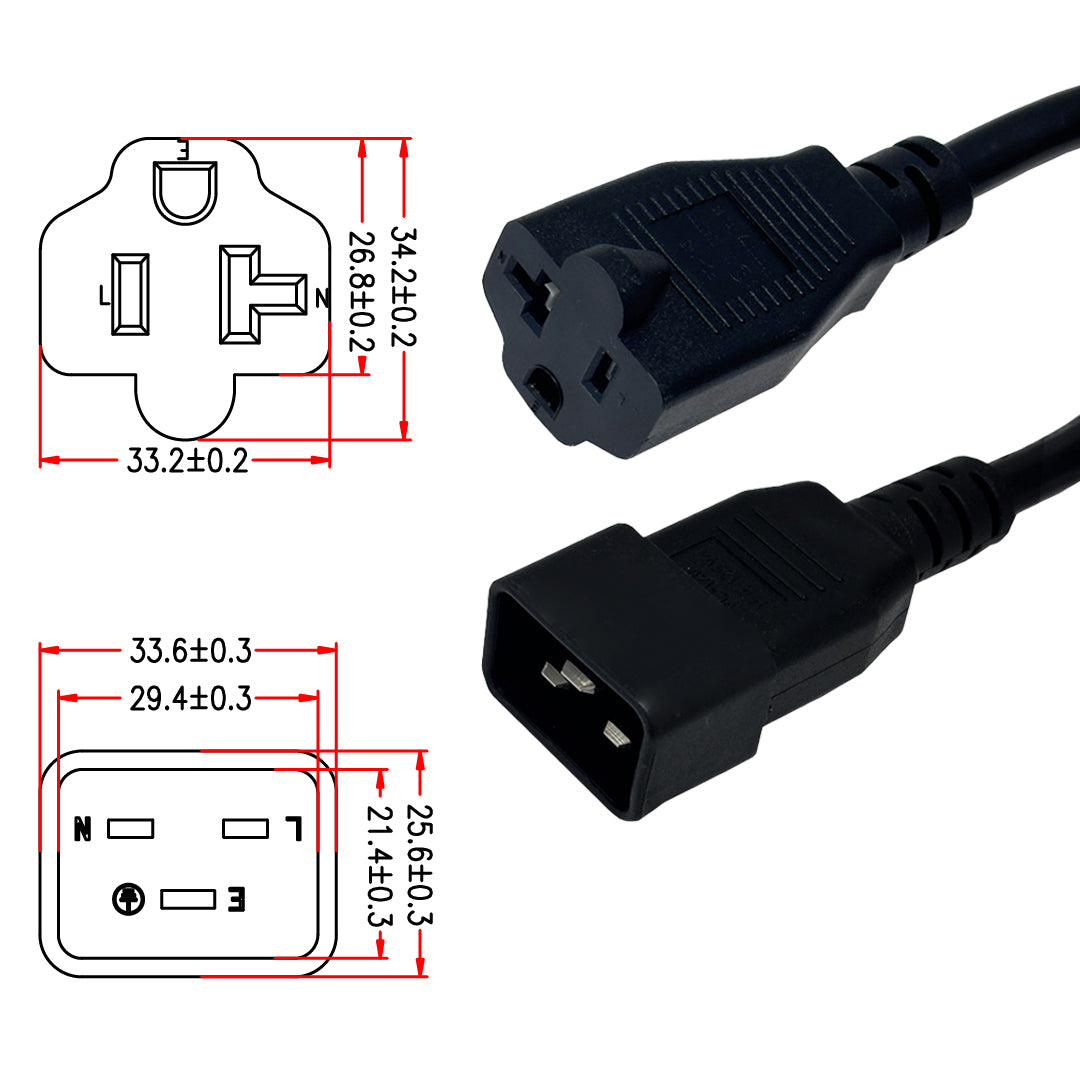

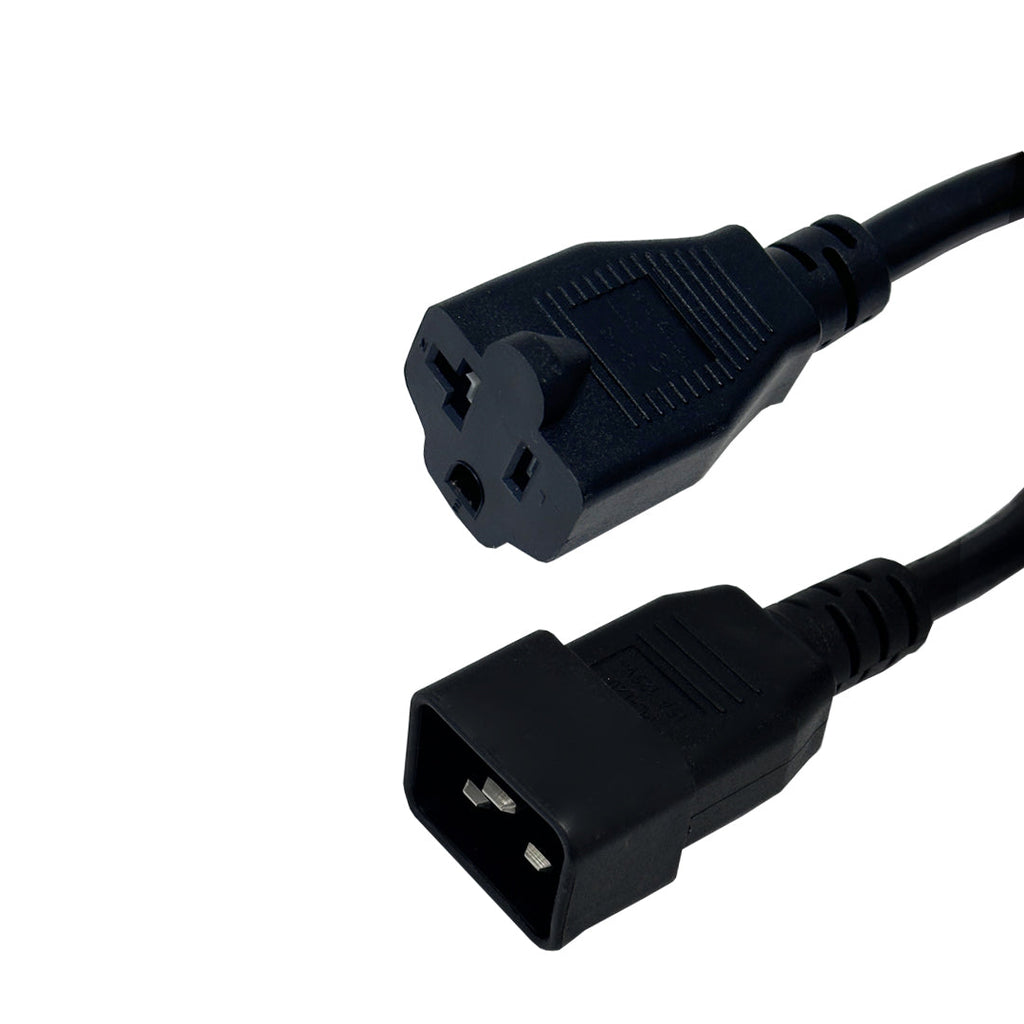

This power cord consists of a C20 male on one end and a 5-15/20R female on the other end. It is typically used as an extension cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Cable Length 1 foot [0.3m]
Color Black
Number of Conductors 3 Conductor
Wire Gauge 14 AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
Strain Relief Molded 100% Virgin PVC
Conductor Material 100% bare copper
Temperature Rating -20℃ to 105℃
Connector A IEC 60320 C20
Connector B NEMA 5-15/20R
Power Rating 15 Amp / 125 Volt
C20 c(UL)us
5-15/20R c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Product Weight 0.3 lbs [0.1kg]
Warranty Information
Warranty Limited Lifetime
