NEMA 5-15P to IEC C13 Power Cable with ON/OFF Switch - 16AWG - SJT Jacket

AC Power CordsSKU: PW-105B-01-SW

Length: 1ft
Price:
Sale price$7.33 USD
Stock:
In stock

Description

Overview

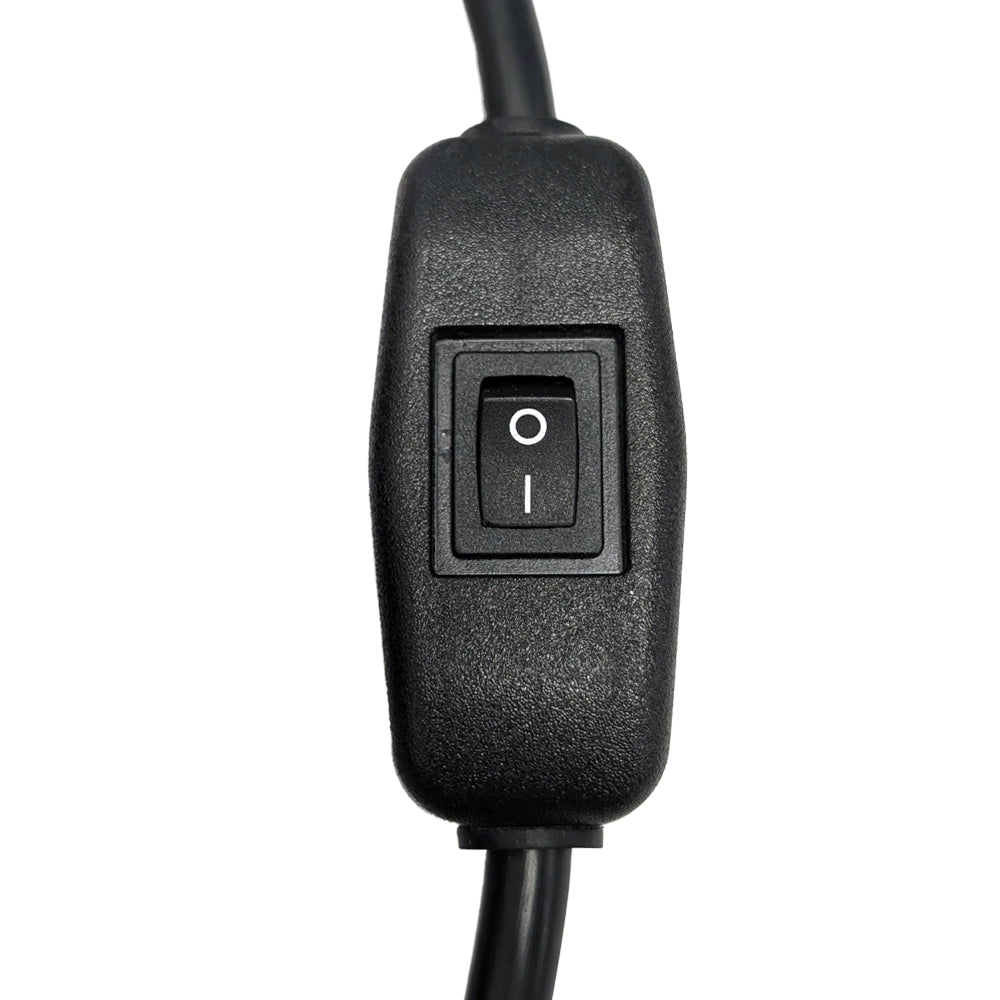

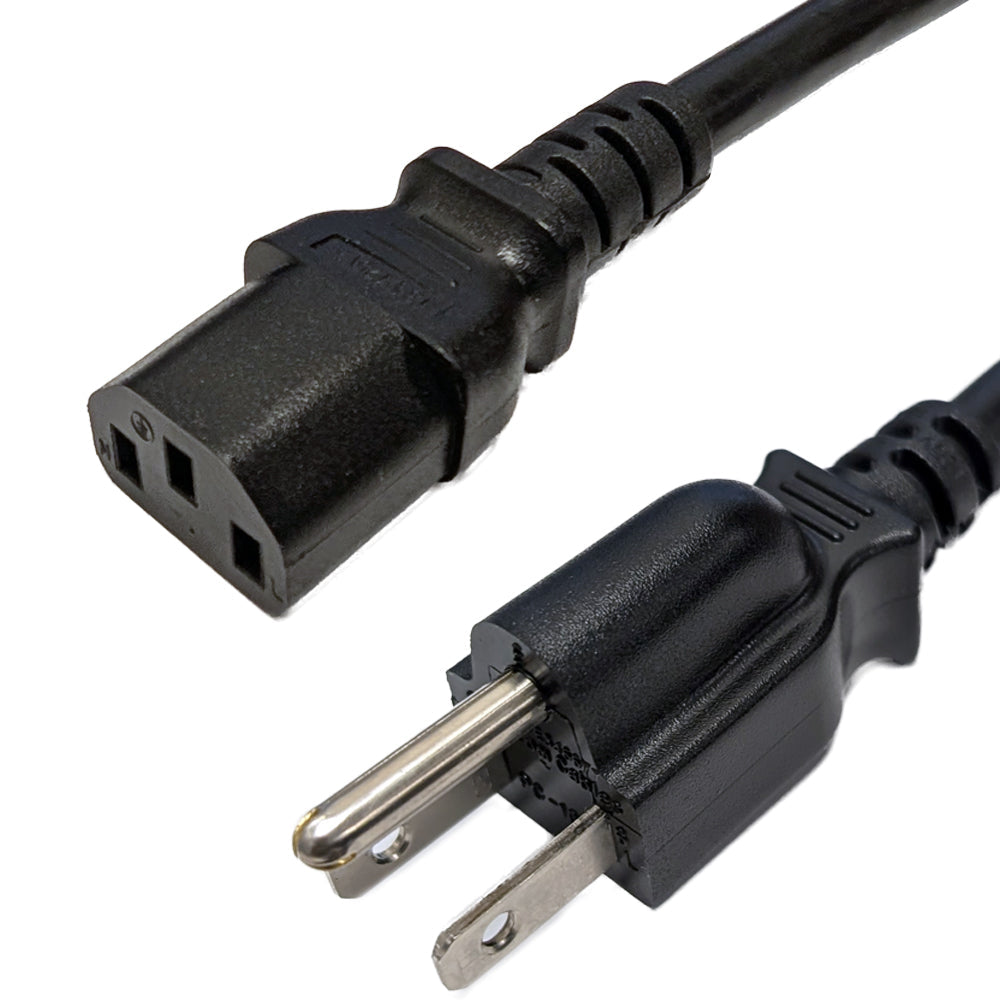

This power cord consists of a 5-15P male on one end and a C13 female on the other end, and has a built-in toggle switch to power a device on and off. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Heavy Duty SJT Jacket

Molded strain relief combined with a heavy duty SJT jacket makes for a high quality, robust cable.

100% Continuity and High Voltage Tested

All cables are 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

c(UL)us Approved

Both cable and connectors use to manufacture these assemblies are c(UL)us approved. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector.

Specifications

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 16AWG
Jacket Heavy Duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A IEC 60320 C13
Connector B NEMA 5-15P
Performance
Power Rating 13 Amp / 125 Volt
Approvals
C13 c(UL)us
5-15P c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Product Support
RoHS Yes
Reach Yes
Conflict Minerals Yes
Country of Origin Vietnam
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 3ft 6ft 10ft 15ft
0.12 lbs 0.29 lbs 0.50 lbs 0.70 lbs 1.00 lbs
SKU Options Weight
PW-105B-01-SW 1ft 0.17 lb
PW-105B-03-SW 3ft 0.36 lb
PW-105B-06-SW 6ft 0.65 lb
PW-105B-10-SW 10ft 1.03 lb
PW-105B-15-SW 15ft 1.5 lb
