Description

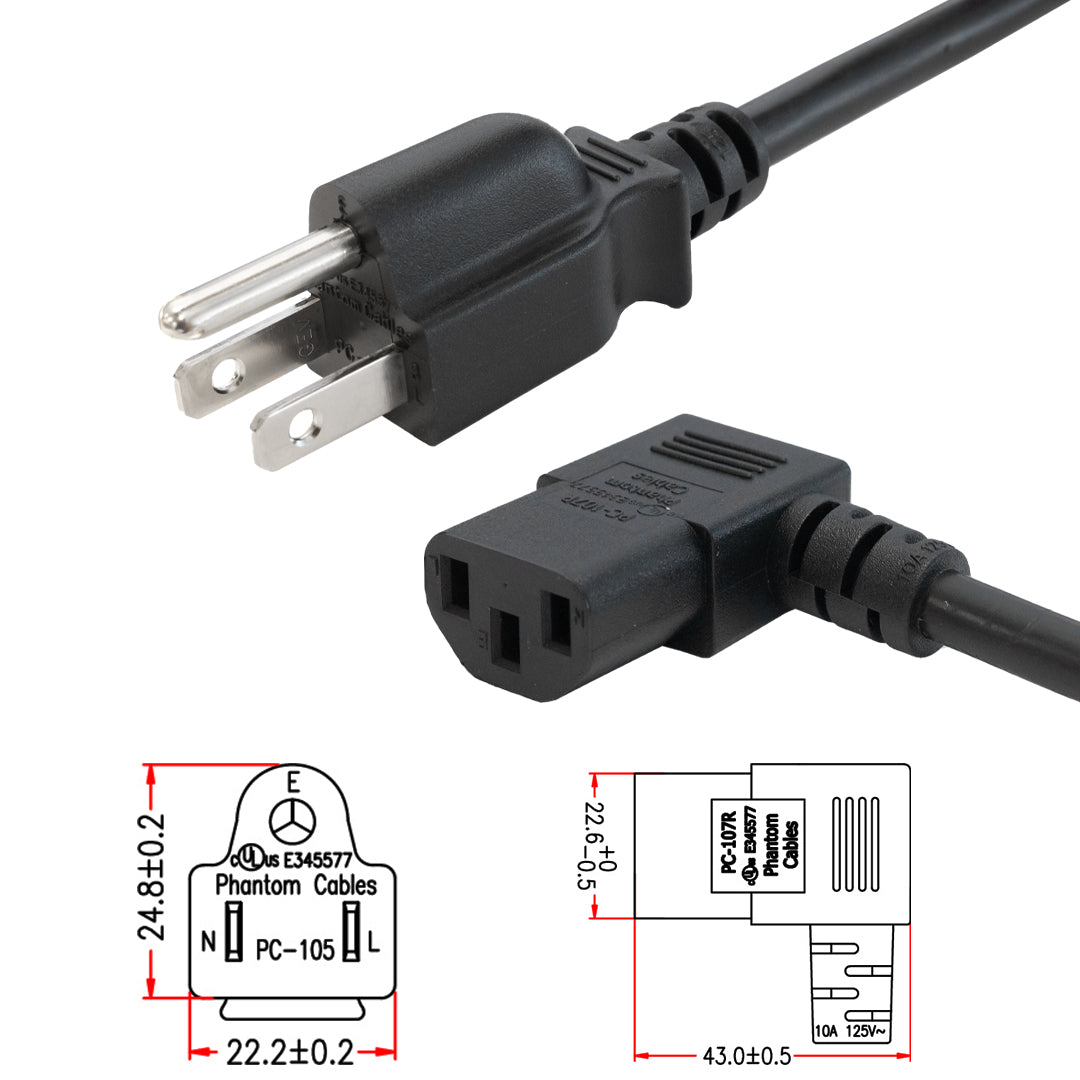

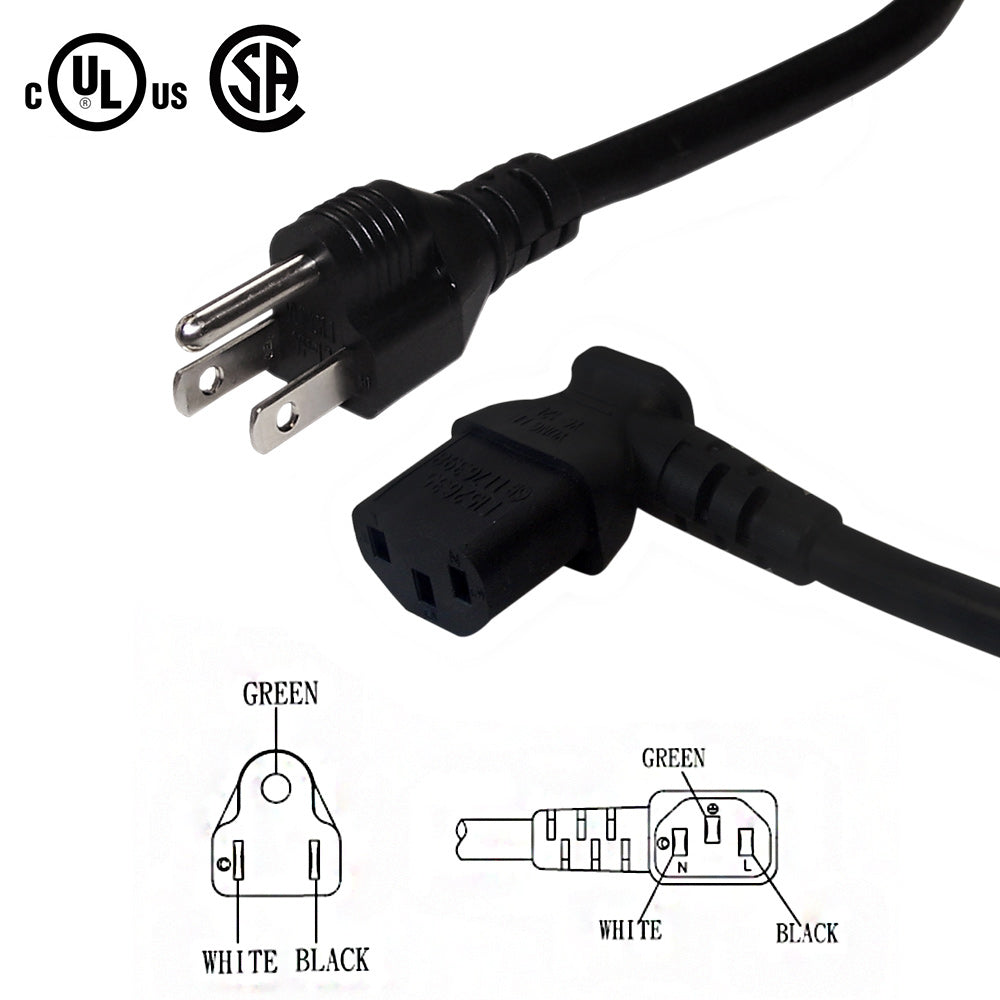

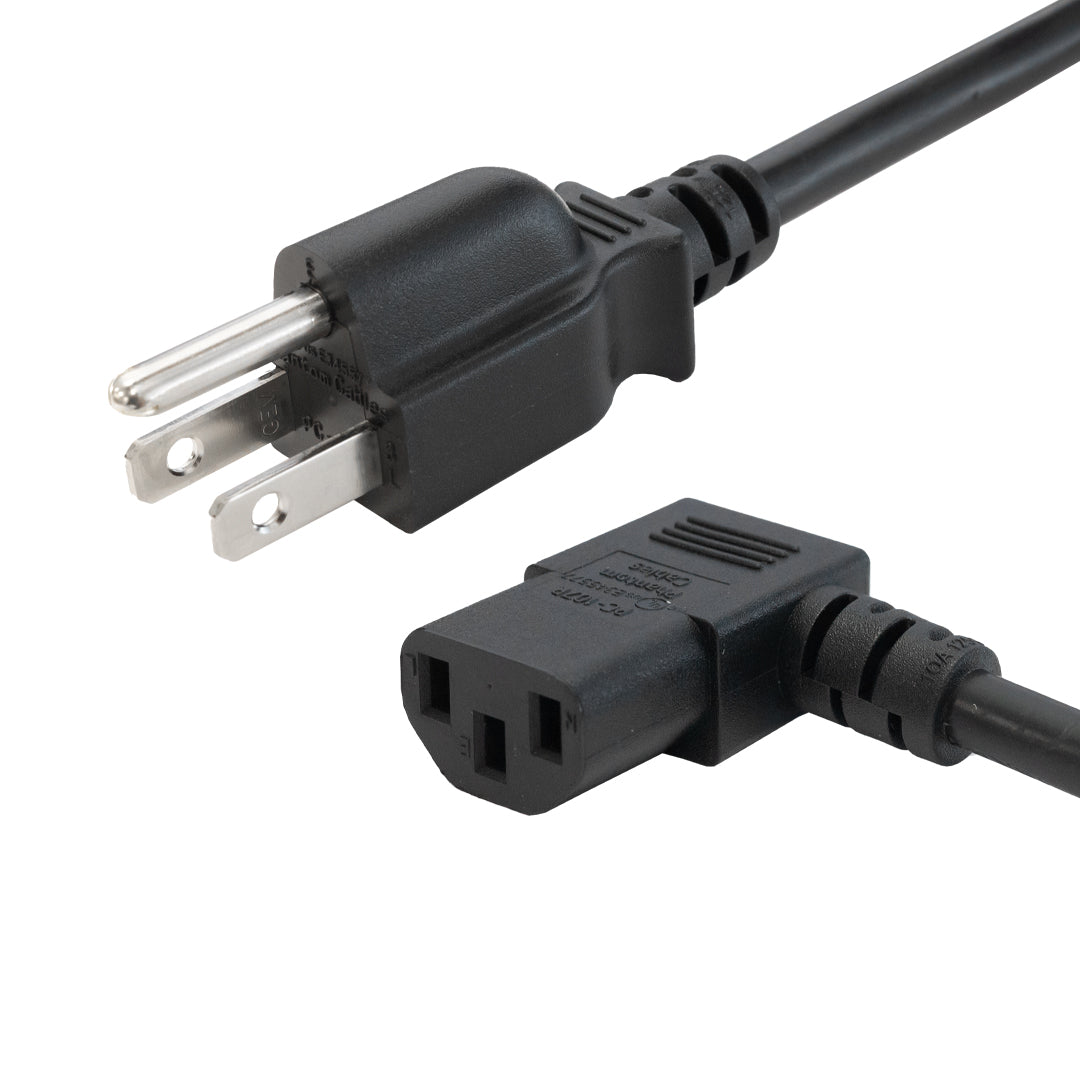

This power cord consists of a 5-15P male on one end and a C13 right angle female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 18 AWG |
| Jacket | Heavy Duty SJT |
| Jacket Material | 100% Virgin PVC - Polyvinyl Chloride |
| Jacket Fire Rating | FT2 VW-1 |
| Strain Relief | Molded 100% Virgin PVC |
| Temperature Rating | -20 deg C to 105 deg C |
| Connector(s) | |
| Connector A | IEC 60320 C13 Right Angle |
| Connector B | NEMA 5-15P |
| Performance | |
| Power Rating | 10 Amp / 125 Volt |
| Approvals | |
| C13 | c(UL)us |
| 5-15P | c(UL)us |
| Cable | c(UL)us |
| ISO | ISO 9001:2015, ISO 14000 |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 12ft |
|---|---|---|
| 0.35 lbs | 0.47 lbs | 0.82 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| PWC-105R3-03 | 3ft | 0.35 lb |
| PWC-105R3-06 | 6ft | 0.47 lb |
| PW-105R3-12 | 12ft | 0.82 lb |
