NEMA 5-20P to IEC C13 Power Cable -14AWG (15A 125V) - SJT Jacket

AC Power CordsSKU: PW-130-03

Length: 3ft
Wire Gauge: 14AWG
Sale price$5.08 USD
In stock

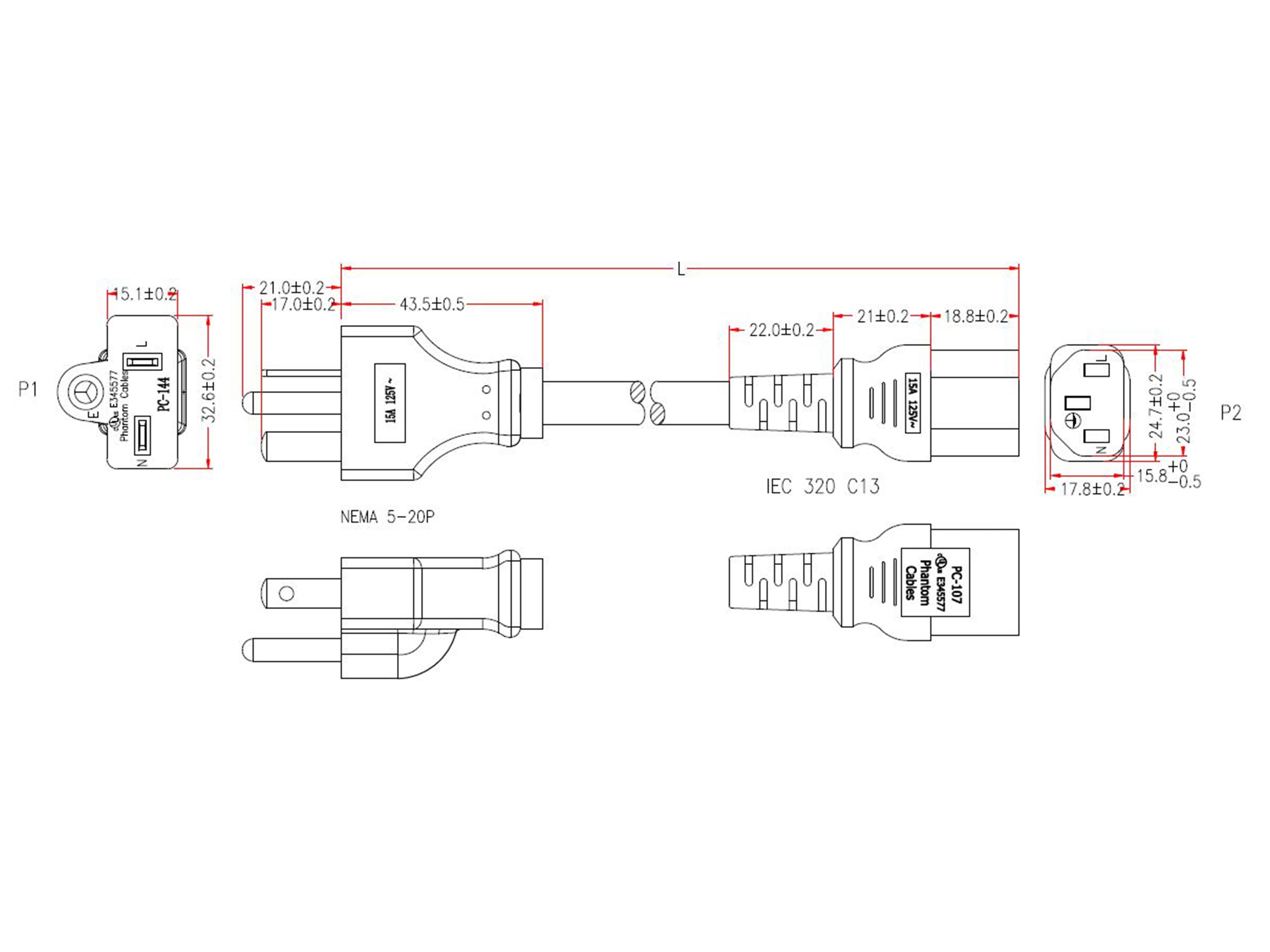

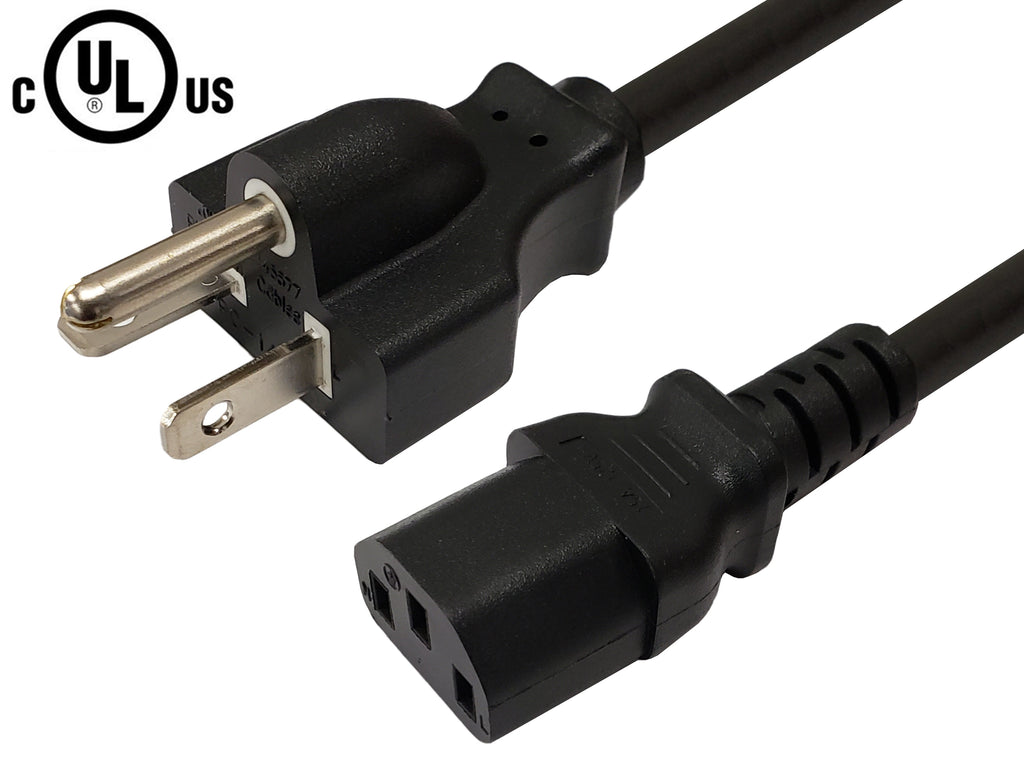

This power cord consists of a 5-20P male on one end and a C13 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 14 AWG
Jacket Heavy duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connector A IEC 60320 C13
Connector B NEMA 5-20P
Power Rating 15 Amp / 125 Volt
C13 c(UL)us
5-20P c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 12ft
0.53 lbs 0.71 lbs 1.39 lbs
