NEMA L5-20P to NEMA L5-20R Power Cable - 12AWG - SJT Jacket

AC Power CordsSKU: PW-132-10

Length: 10ft
Price:
Sale price$29.07 USD
Stock:
In stock

Description

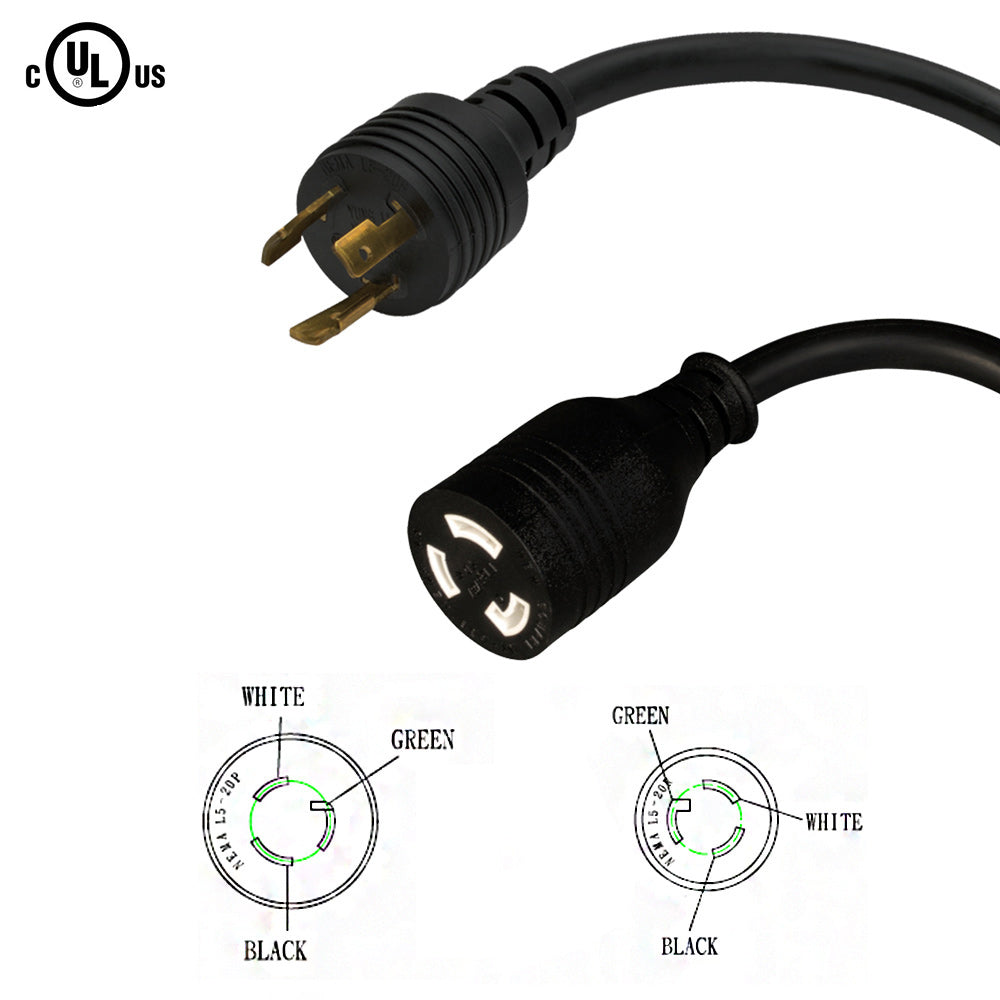

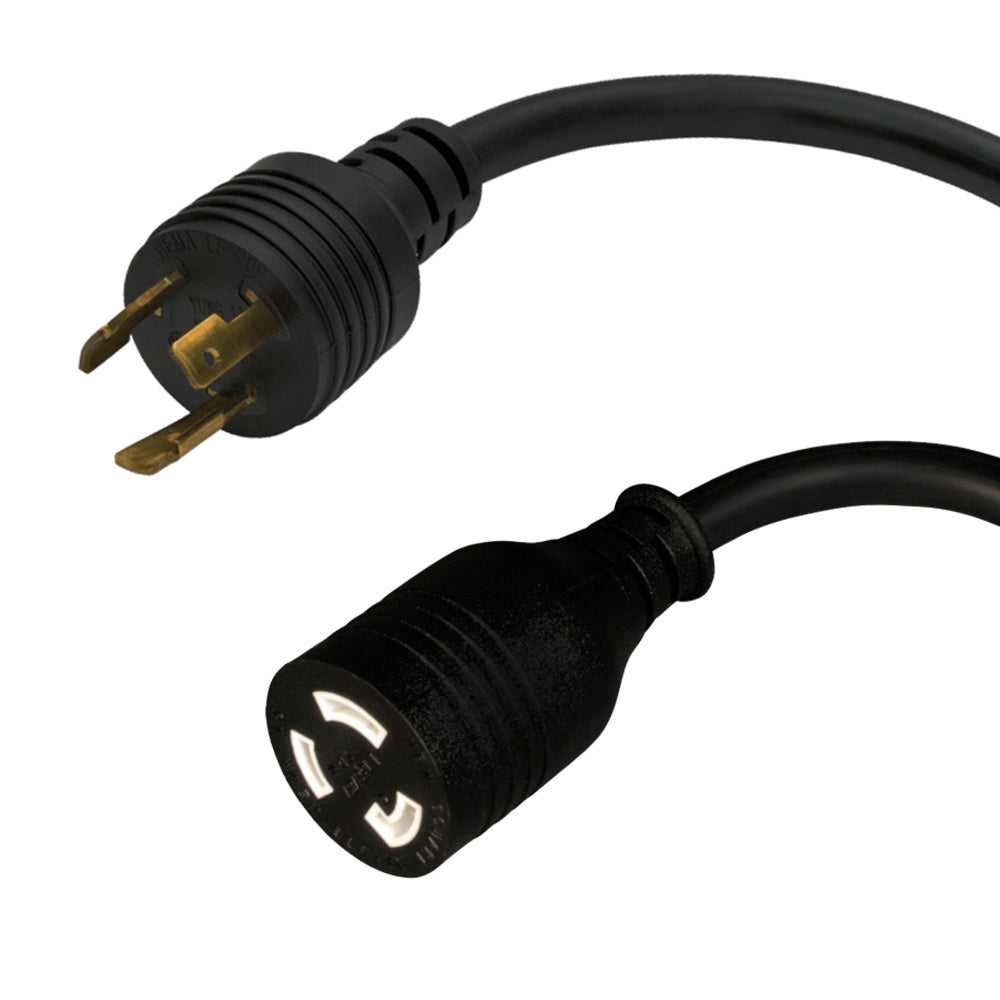

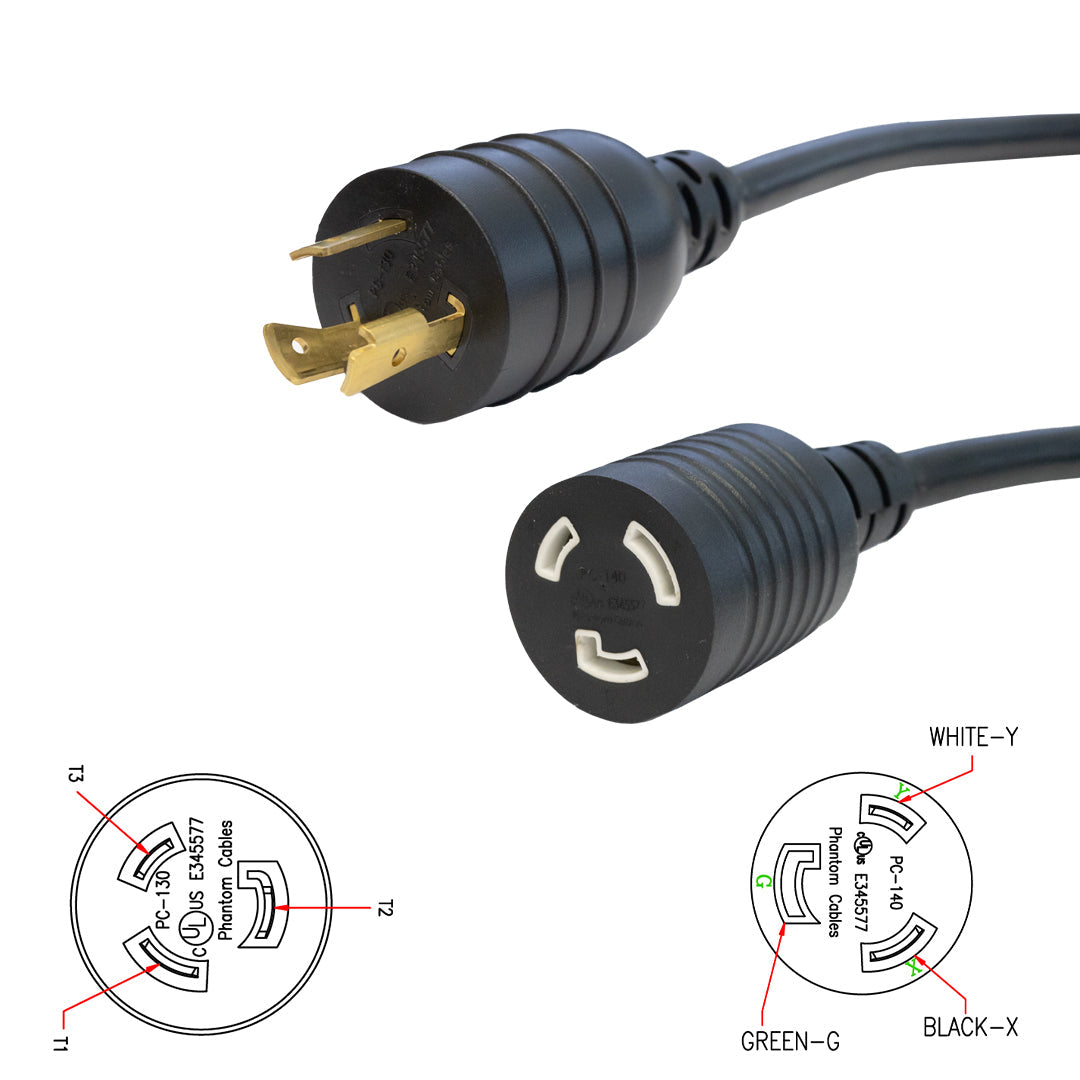

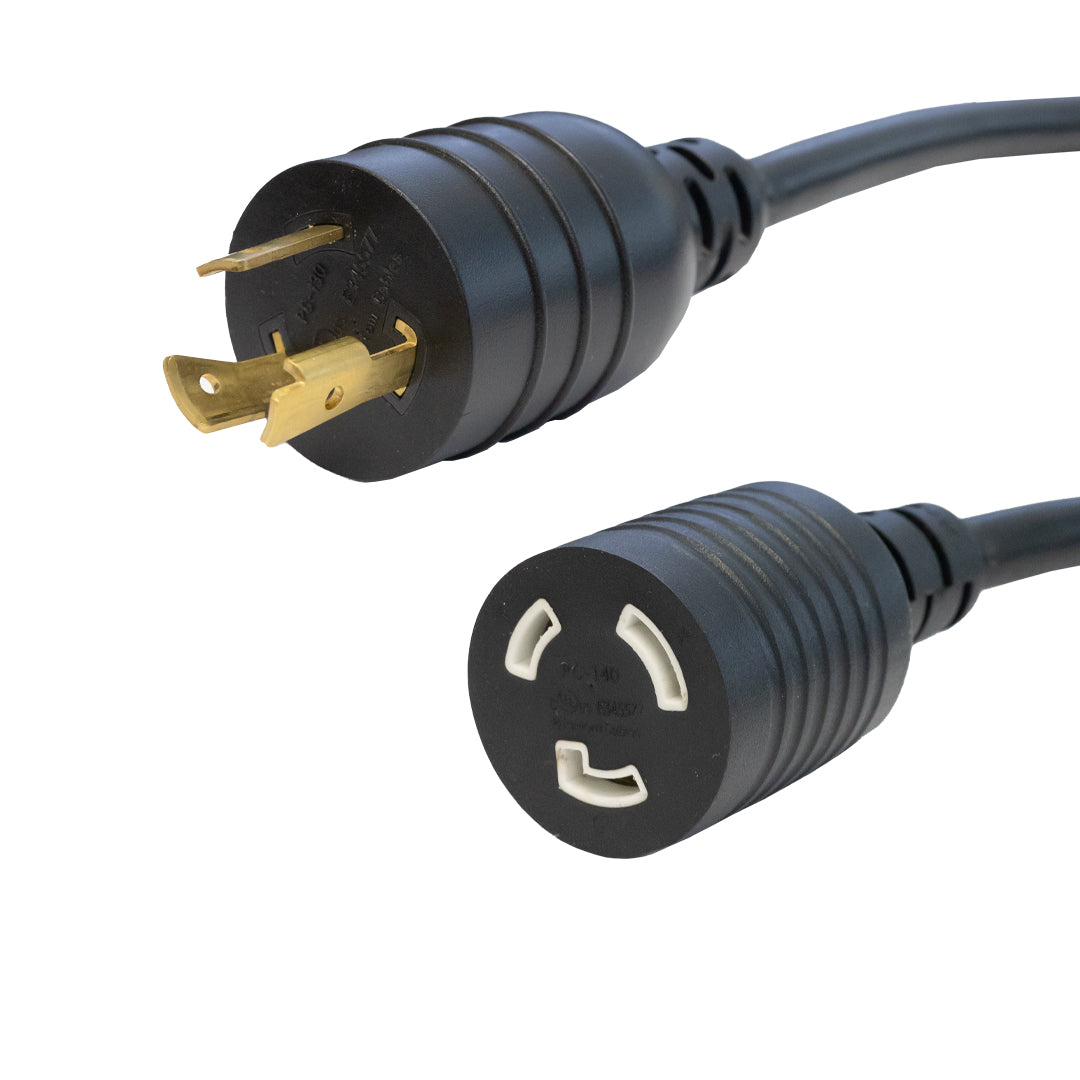

This power cord consists of a L5-20P male on one end and a L5-20R female on the other end. It is typically used as an extension cable. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 12 AWG
Jacket Heavy duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A NEMA L5-20R
Connector B NEMA L5-20P
Performance
Power Rating 20 Amp / 125 Volt
Approvals
L5-20P c(UL)us
L5-20R c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
10ft 15ft
1.69 lbs 2.39 lbs
SKU Options Weight
PW-132-10 10ft 1.03 lb
PWC-132-15 15ft 1.5 lb
