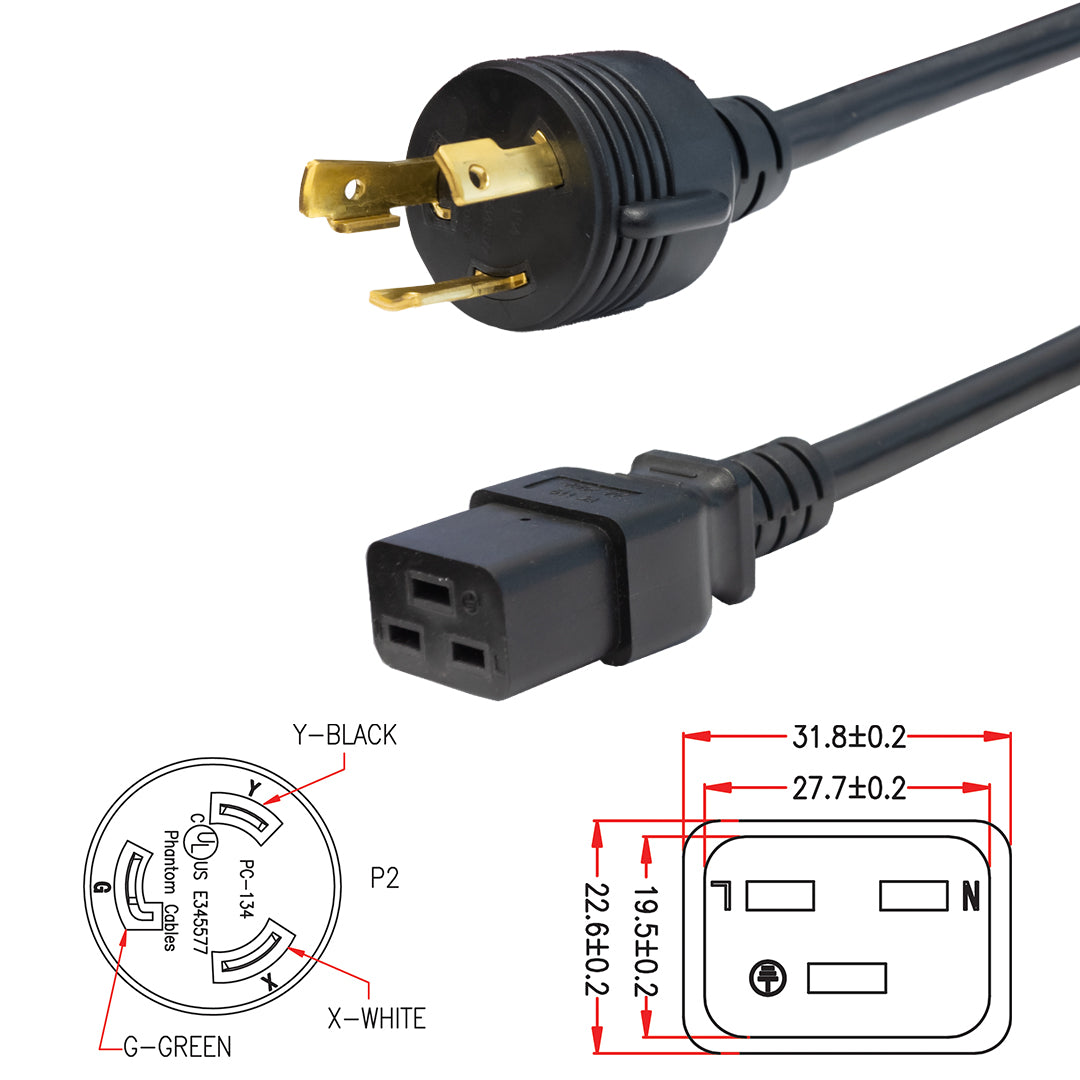

NEMA L6-30P to IEC C19 Power Cable - 12AWG - SJT Jacket

AC Power CordsSKU: PWC-166-08

Length: 8ft
Price:
Sale price$17.44 USD
Stock:
In stock

Description

This power cord consists of a L6-30P male on one end and a C19 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. These cables are constructed with UL mandated inner plastic frame molds to enhance terminal alignment and produce a high quality connector. The connectors premium quality ensures a snug fit with receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.

Physical Characteristics
Color Black
Number of Conductors 3 Conductor
Wire Gauge 12 AWG
Jacket Heavy duty SJT
Jacket Material 100% Virgin PVC - Polyvinyl Chloride
Jacket Fire Rating FT2
VW-1
Strain Relief Molded 100% Virgin PVC
Temperature Rating -20 deg C to 105 deg C
Connector(s)
Connector A NEMA L6-30P
Connector B IEC 60320 C19
Performance
Power Rating 20 Amp / 250 Volt
Approvals
L6-30P c(UL)us
C19 c(UL)us
Cable c(UL)us
ISO ISO 9001:2015, ISO 14000
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
8ft 15ft
1.45 lbs 2.30 lbs
SKU Options Weight
PWC-166-08 8ft 0.85 lb
PWC-166-15 15ft 1.5 lb
