Description

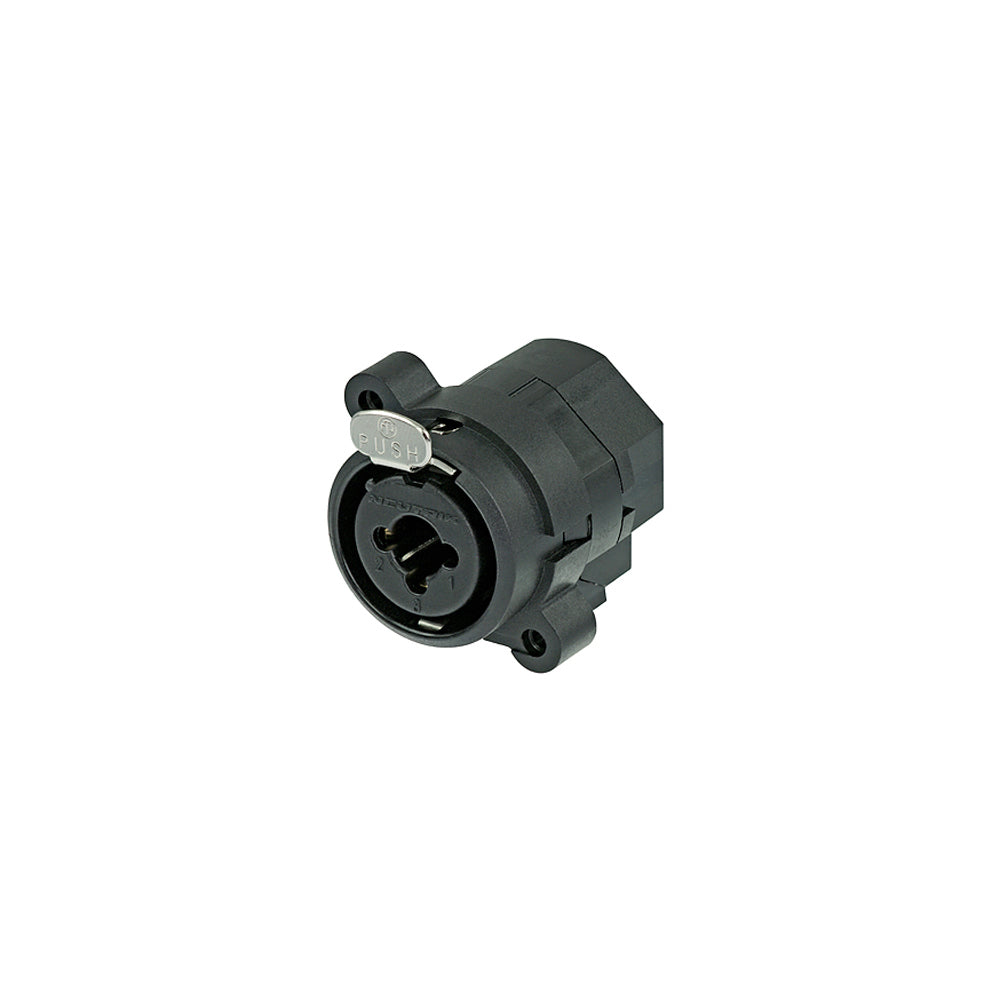

This connector is a XLR + jack hybrid chassis connector combining a 3-pole XLR receptacle and 1/4" jack. It is typically used for digital audio applications.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Nickel |
| Connector Type | Combo |
| Temperature Range | -30ā to +80ā |
| Contacts | Bronze |
| Contact Plating | 0.2 Āµm Au hard alloy over 2 Āµm Ni |
| Insert | Polyamide |
| Locking Element | Steel Ck67 |
| Gender | Female |
| Electrical Characteristics | |
| Contact Resistance | < 10 mā¦ (XLR) < 20 mā¦ (Jack) |
| Dielectric Strength | 1,5 kVdc |
| Insulation Resistance | > 10 Gā¦ (initial) |
| Rated Current Per Contact | 7,5 A (XLR) 7,5 A (Jack) |
| Rated Voltage | < 50 V |
| Mechanical Characteristics | |
| Insertion Force | ? 25 N |
| Withdrawal Force | ? 25 N |
| Lifetime | > 1000 mating cycles |
| Panel Thickness | Max. 7 mm 0.27 inches |
| Mounting Direction | Rear Mounting |
| Environmental | |
| Flammability | UL 94 HB |
| Standard Compliance | IEC 61076-2-103 |
| Protection Class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Manufacturer Information | |
| Neutrik Part Number | NCJ6FI-S |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
Spec Sheets
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| NT-NCJ6FI-S | 0.02 lb |
