Description

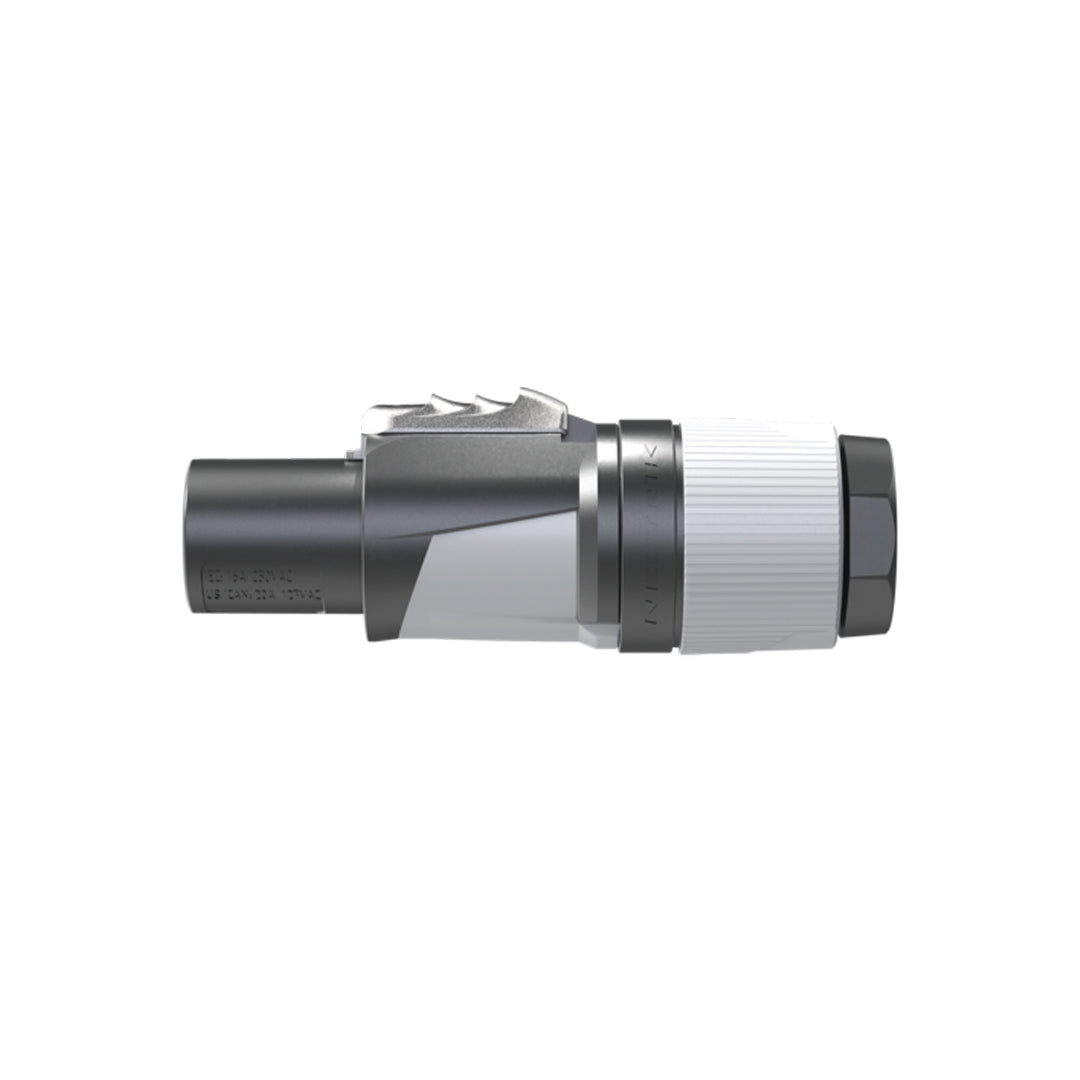

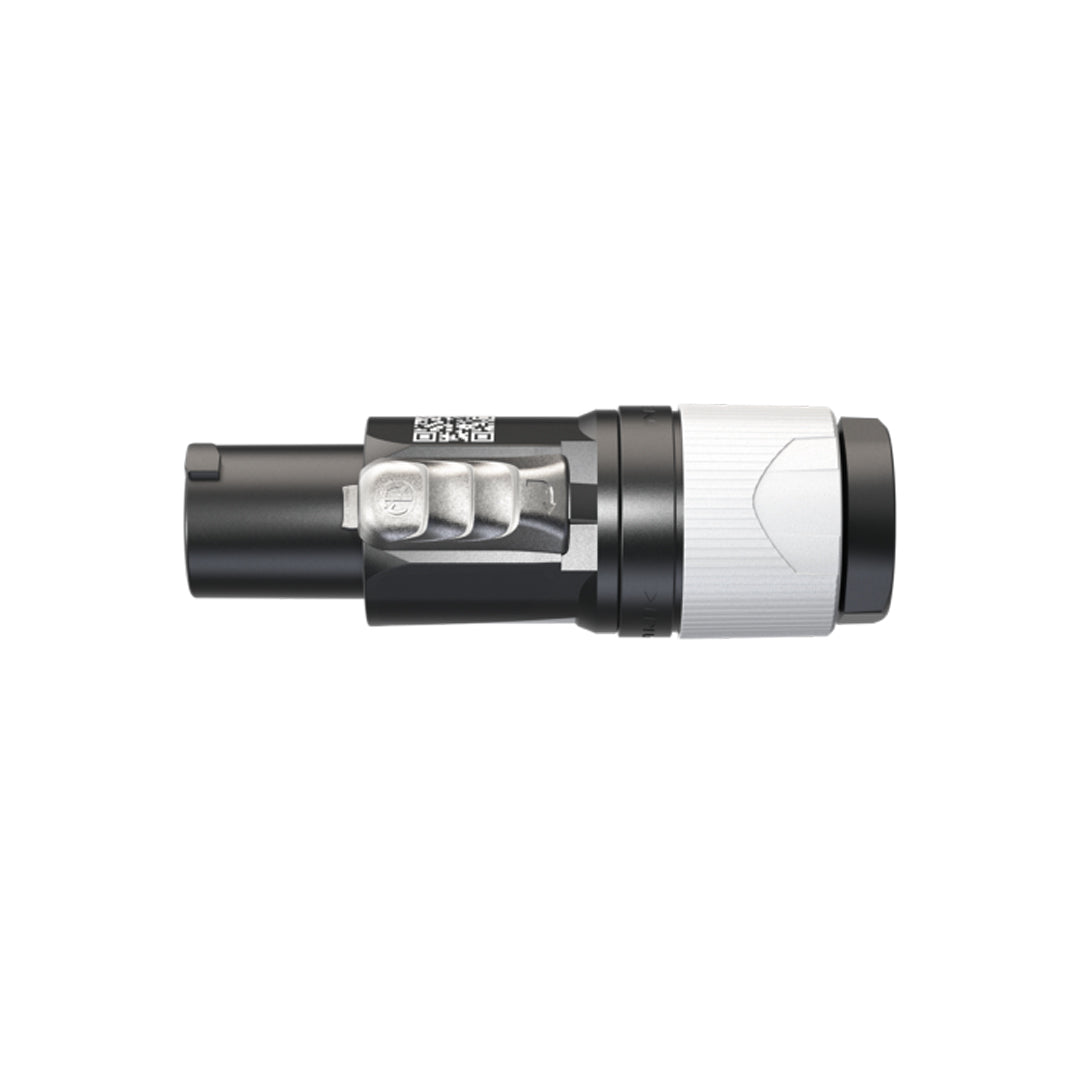

This locking 3 Wires equipment AC connector replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Features:
- Power-in (blue) and power-out (grey) versions with diļ¬erent keying to avoid the possibility of intermating
- Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
- Ergonomic design with slip-proof two-component molded housing
- Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
- Easy and reliable twist lock system
- Improved kink protection by two-component bushing
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
| Physical Characteristics | |
|---|---|
| Color | Grey |
| Connector Type | powerCON |
| Temperature Range | -33ā to +80ā |
| Contact Plating | Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking Element | Zinc Diecast |
| Shell | Polyamide (PA6) / TPE |
| Strain Relief | Polyketone |
| Bushing | Polypropylene / TPE |
| Gender | Female |
| Electrical Characteristics | |
| Contact Resistance | ā¤ 2 mĪ© |
| Dielectric Strength | 3.0 kVac (after mating cycles) |
| Insulation Resistance | > 10 GĪ© (initially) |
| Number of electrical contacts | 2 + PE |
| Rated Voltage | 250 V AC |
| Mechanical Characteristics | |
| Cable O.D. | 6 ā 12 mm |
| Lifetime | > 5000 mating cycles |
| Wire size |
1.5 ā 2.5 mmĀ² 16 ā 12 AWG |
| Wiring | Screw Type Terminals |
| Locking Device | Twist lock |
| Environmental | |
| Protection class | IP20 |
| Flammability acc. to UL94 | V-0 |
| IEC | Compliant |
| UL | Compliant |
| CSA | Compliant |
| Manufacturer Information | |
| Neutrik Part Number | NAC3FXXB-W-S |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
Video
Product Weights
the weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Weight | |
| NT-NAC3FXXB-W-S | 0.02 lb |
