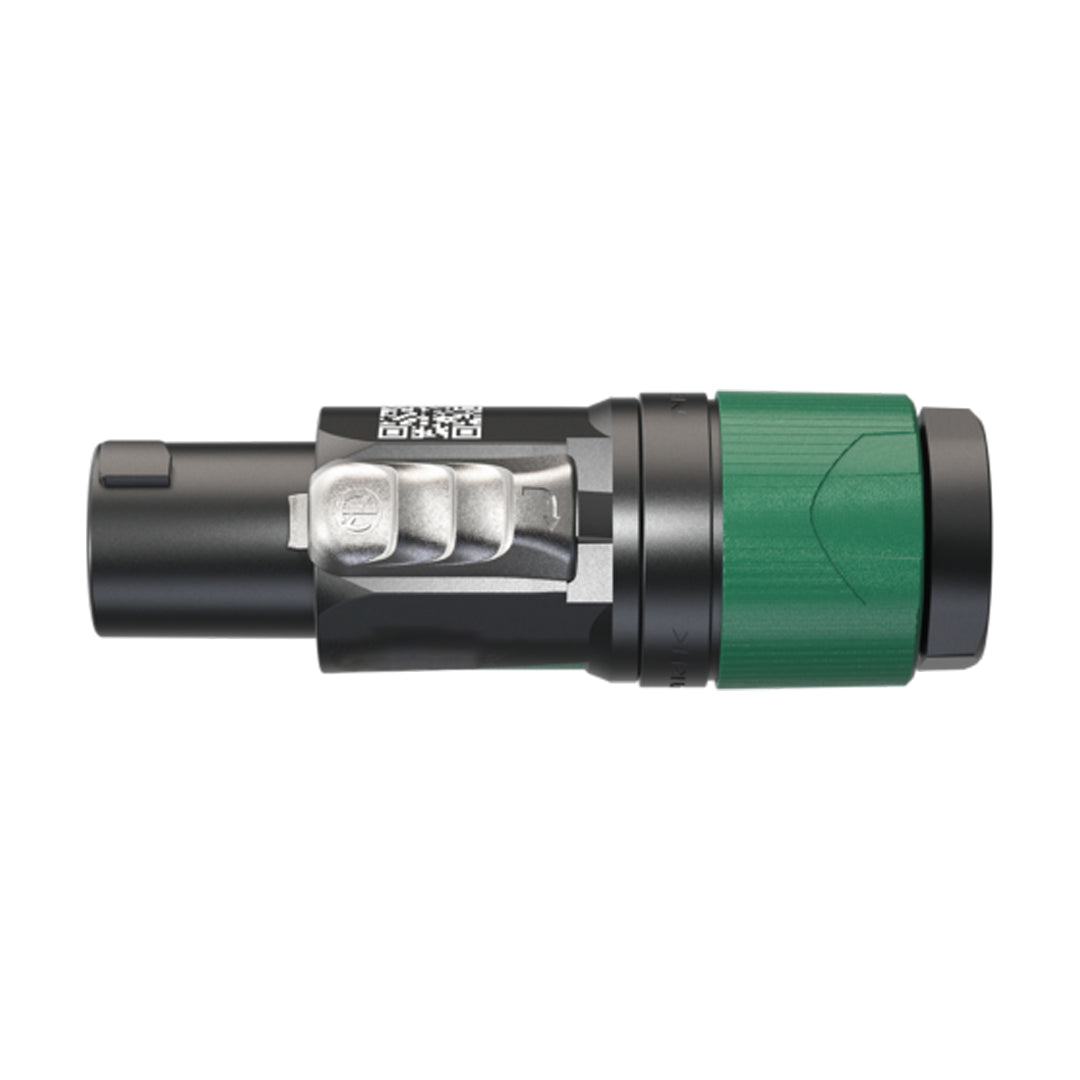

Neutrik 4-Pole speakON Connector (Female)

Audio ConnectorsSKU: NT-NL4FXX-W-S

Price:
Sale price$6.81 USD
Stock:
In stock

Description

This connector is extremely robust and offers a reliable locking system as speaker cable terminations. It features solid contacts with screw-type terminals including a stranded wire protection which also offers solder termination.

Features:

  • Up to 37 A rms current rating
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Ergonomic design with slip-proof two-component molded housing
  • Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • Easy and reliable twist lock system
  • Improved kink protection by two-component bushing
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1



Physical Characteristics
Color Green
Connector Type speakON
Temperature Range -33℃ to +80℃
Contact Plating Ag
Contacts Copper Alloy
Insert Polyamide (PA6.6)
Locking Element Zinc Diecast
Shell Polyamide (PA6) / TPE
Strain Relief Polyketone
Bushing Polypropylene / TPE
Gender Female
Electrical Characteristics
Contact Resistance ≤ 2 mΩ
Dielectric Strength 2.8 kVac
Insulation Resistance > 10 GΩ (initially)
Number of electrical contacts 4z
Rated Voltage 250 V ac
Mechanical Characteristics
Cable O.D. 6 – 12 mm
Lifetime > 5000 mating cycles
Wire size

1.5 – 4 mm²

17 – 11 AWG

Wiring Screw Type Terminals
Locking Device Twist lock
Environmental
Protection class IP20
Flammability acc. to UL94 V-0
IEC Yes
UL Yes
CSA Yes
Manufacturer Information
Neutrik Part Number NL4FXX-W-S
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01 kg]
