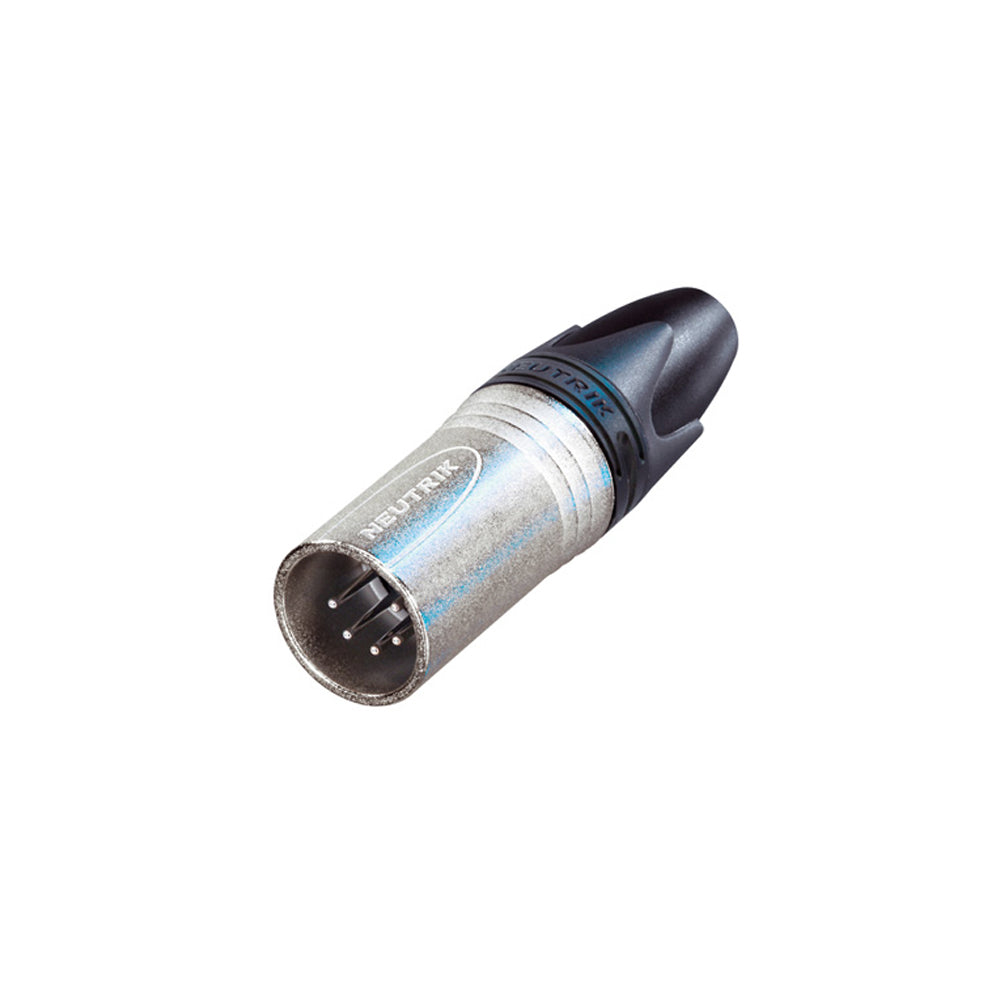

Neutrik 5-Pin XLR Male Inline Connector

Audio ConnectorsSKU: NT-NC5MXX

Price:
Sale price$7.00 USD
Stock:
In stock

Description

This connector is typically used to connect audio devices and is reliable, easy to assemble and improves contact integrity as well as cable strain relief.

Physical Characteristics
Color Black
Housing Nickel
Connector Type XLR
Temperature Range -30℃ to +80℃
Boot Polyurethan
Contact Plating 2 µm Au over 2 µm Ni
Contacts Brass
Insert Polyamide
Locking Element Zinc Diecast
Shell Zinc Diecast
Shell Plating Nickel
Strain Relief Polyacetal (POM)
Gender Male
Electrical Characteristics
Capacitance between Contacts ≤ 7 pF
Contact Resistance ≤ 3 mΩ
Dielectric Strength 1,5 kVdc
Insulation Resistance > 10 GΩ (initial)
Rated Current Per Contact 7,5 A
Rated Voltage < 50 V
Mechanical Characteristics
Cable O.D. 3.5 - 8.0 mm
Insertion Force ≤ 20 N
Withdrawal Force ≤ 20 N
Lifetime > 1000 mating cycles
Wire size Max. 1.0 mm²
Max. 18 AWG
Wiring Solder contacts
Locking Device Latch Lock
Environmental
Flammability UL 94 HB
Standard Compliance IEC 61076-2-103
Protection Class IP 40
Solderability Complies with IEC 68-2-20
Manufacturer Information
Neutrik Part Number NC5MXX
Packaging Information
Package Quantity 1
Product Weight 0.02 lbs [0.01 kg]
