Description

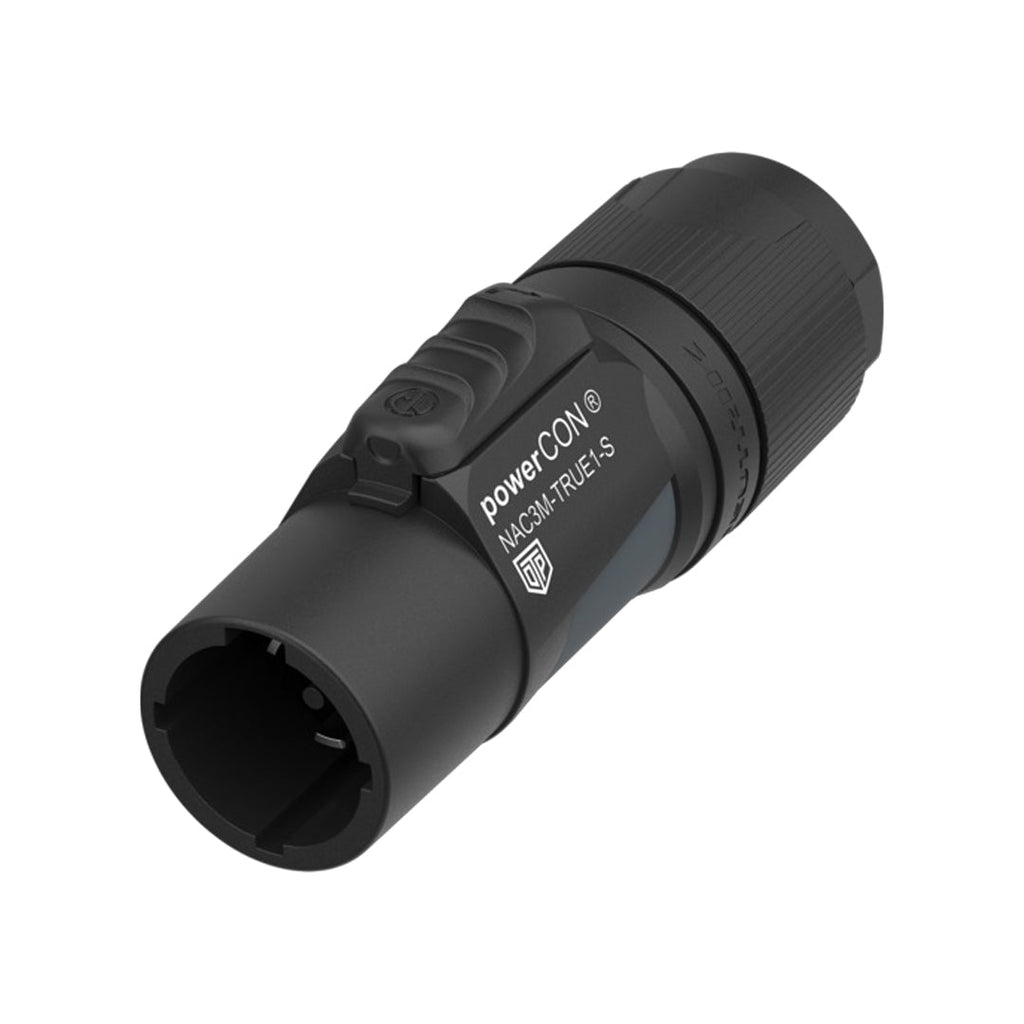

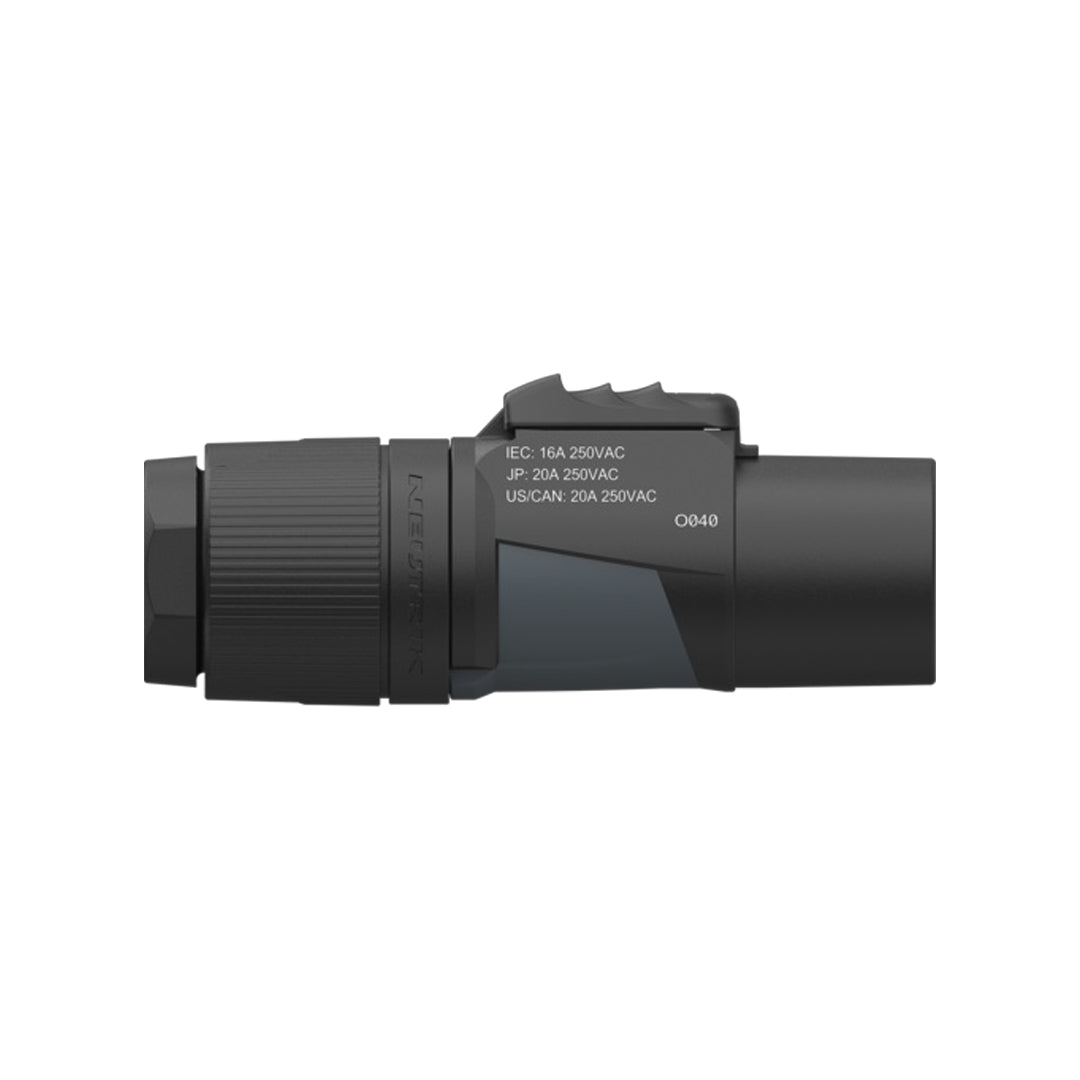

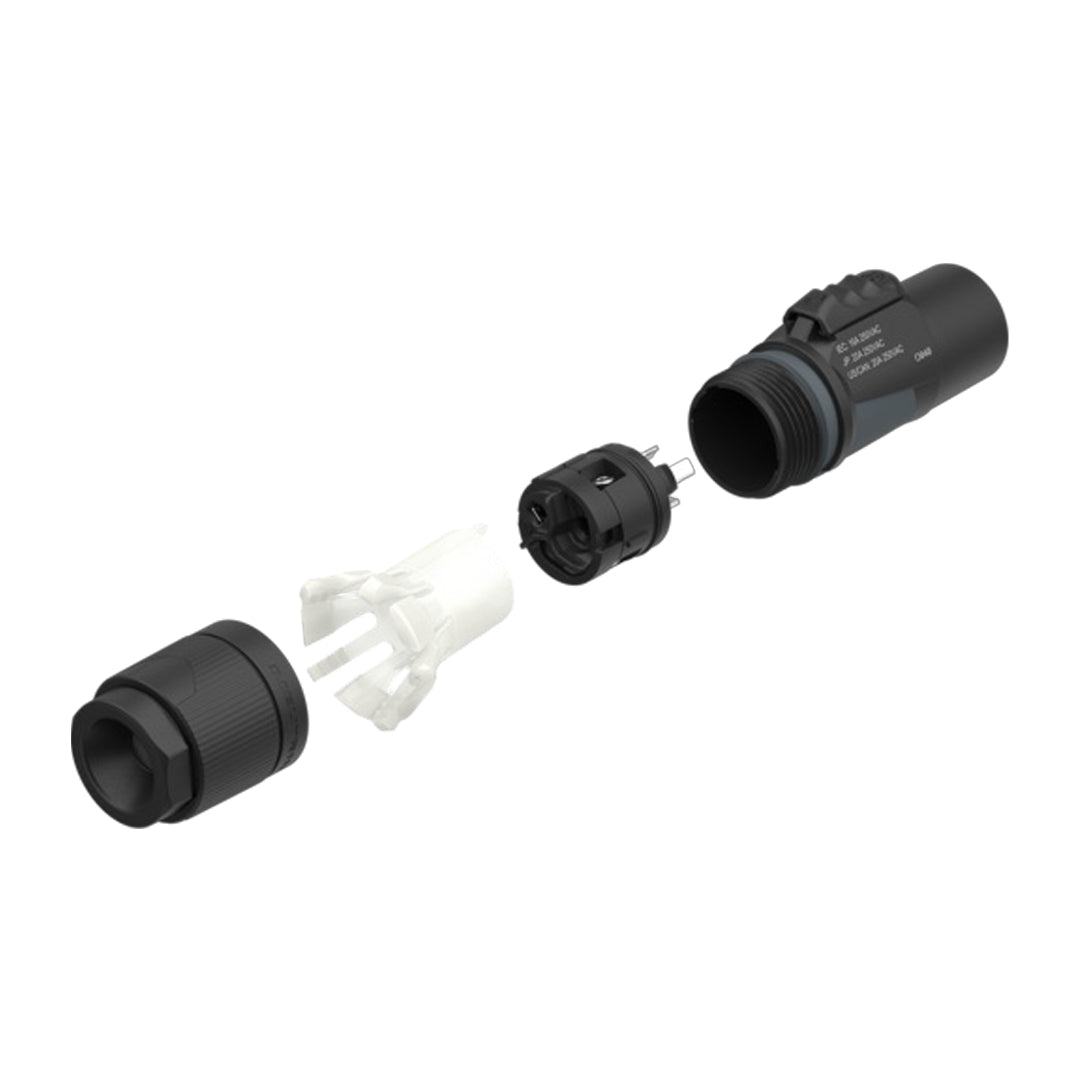

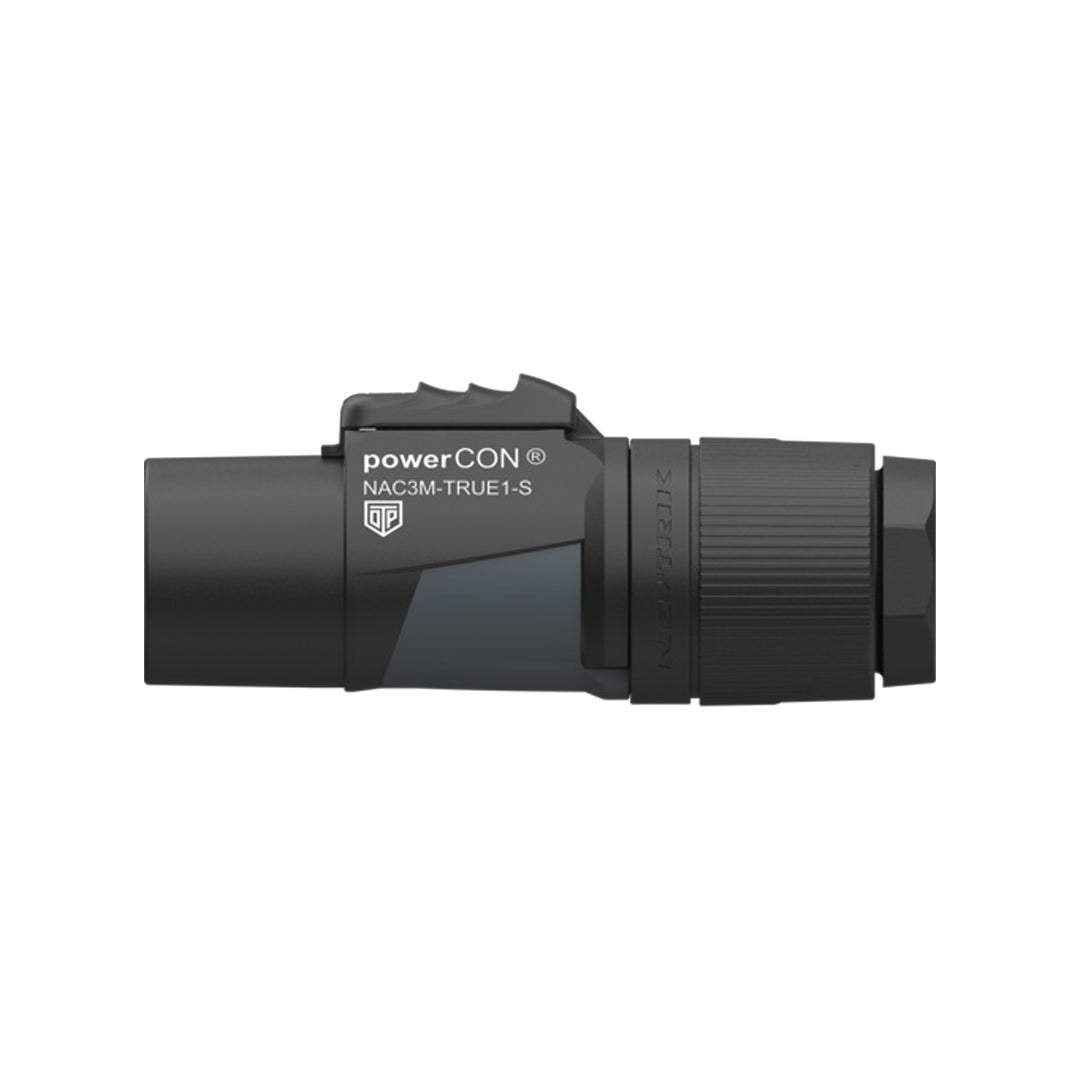

This connectorĀ replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features:
- Heavy duty sealed power connector for harsh and demanding environment
- Uses high impact UV-resistant materialsĀ
- Lockable single phase connectorĀ
- Unique NEUTRIK locking bushing and strain relief for cable diameters 6 mm to 12 mm (0.23 ā 0.47 inches)Ā
- Extremely robust and reliableĀ
- ENEC and VDE certiļ¬ed according to IEC 60320-1 and EN IEC 60320-1Ā
- UL and CSA Certiļ¬ed According to UL 60320-1 and CSA 22.2 No. 60320-1Ā
- UL Certiļ¬ed According to UL 498
- IP65 and IP67 (mated or with closed cap)Ā
- True mains connector with breaking capacity (CBC)Ā
- Easy and reliable twist lock systemĀ
| Physical Characteristics | |
|---|---|
| Color | Grey |
| Connector Type | powerCON TRUE1 |
| Temperature Range | -30ā to +80ā |
| Contact Plating | 2Ī¼m Ag |
| Contacts | Copper Alloy |
| Insert | Polyamide (PA6.6) |
| Locking Element | Polyamide (PA6.6) |
| Shell | Polyamide (PA6.6) |
| Strain Relief | Polyketone |
| Gender | Male |
| Electrical Characteristics | |
| Contact Resistance | ā¤ 2 mĪ© |
| Dielectric Strength | 4 kVdc / 2.8 kVac |
| Insulation Resistance | >0.1GĪ© (after damp and heat test IEC 68-2-30) |
| Number of electrical contacts | 2 + PE |
| Rated Voltage | 20A 250 VAC |
| Mechanical Characteristics | |
| Cable O.D. | 6 - 12 mm (0.23 ā 0.47 inches) |
| Lifetime | > 5000 mating cycles |
| Wire size |
1.0 ā 2.5 mmĀ² 14 AWG |
| Wiring | Screw Type Terminals |
| Locking Device | Twist lock |
| Environmental | |
| Protection class | IP 65 / 67 (mated or with closed caps) |
| Flammability acc. to UL94 | V-0 |
| UV Resistance | F1 rated material withstands UV exposure |
| IEC | Compliant |
| UL | Compliant |
| CSA | Compliant |
| VDE | Compliant |
| Manufacturer Information | |
| Neutrik Part Number | NAC3M-TRUE1-S |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.02 lbs [0.01 kg] |
Spec Sheets
Product Weights
| SKU | Weight | |
| NT-NAC3M-TRUE1-S | 0.02 lb |
