Description

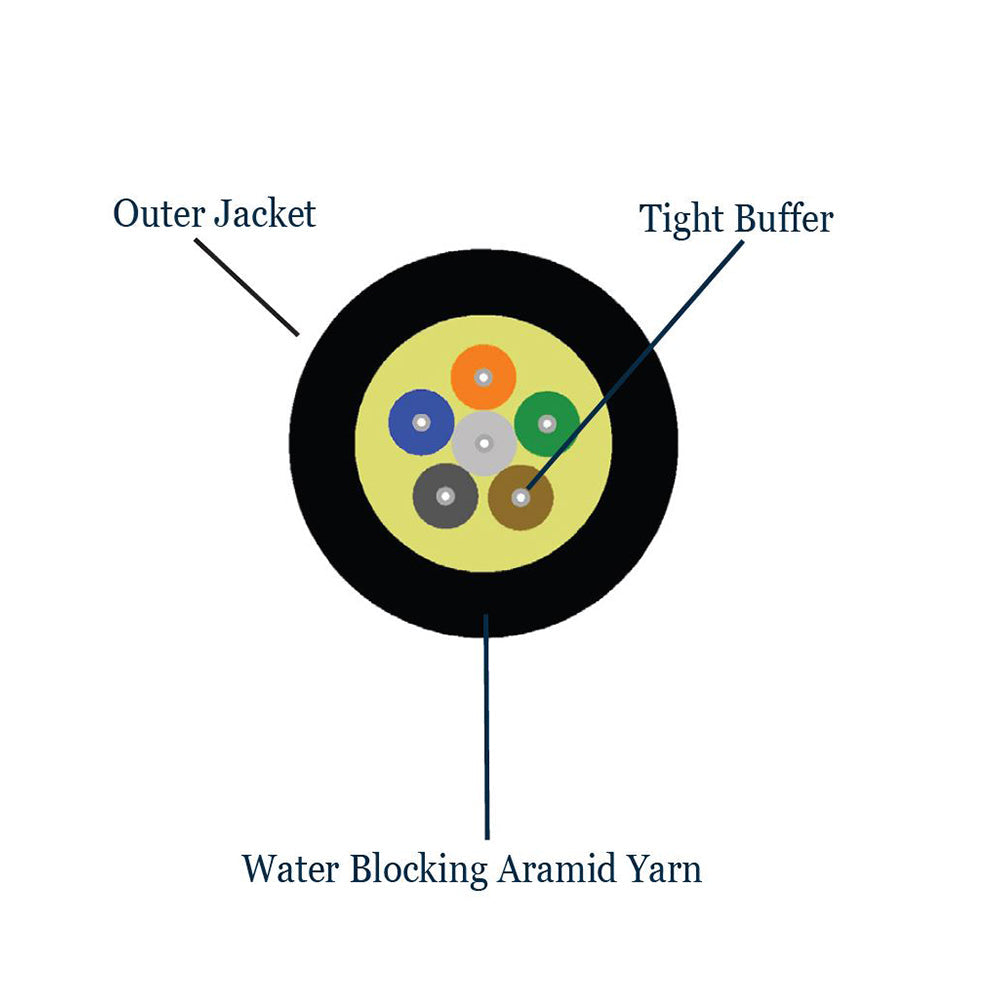

These bulk 6-strand and 12-strand OM1 fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. Moreover, this tight buffered optical fibers has water blocking aramid yarn, and a UV resistant black PVC outer jacket.
Features
- 900 Āµm Tight Buffers
- Aramid yarn strength members
- Exclusive use of CorningĀ® optical fibers
- Jacket print ensures product identification and fiber Compatibility
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OM1 62.5 micron Multimode Riser Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 6-Strand/ 12-Strand |
| Glass Fiber |
Corning InfiniCor |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter |
6-Strand :Ā 4.8mm 12-Strand : 5.8mm |
| Bending Radius(Installation) |
6-Strand :Ā 7.2cm 12-Strand : 8.7cm |
| Bending Radius(Long Term) |
6-Strand :Ā 4.8cm 12-Strand : 5.8cm |
| Operating Temperature | -40 deg C ~ +70 deg C |
| Storage Temperature | -40 deg C ~ +70 deg C |
| Attenuation Range | @850nm 3.5dB/km @1300nm 1.5dB/km |
| Bandwidth Range | @850nm > 220 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 300 |
| Fire Rating | OFNR |
| Certification(s) | |
| UL |
Yes |
| TIA Standard |
Yes |
| Product Support | |
| RoHS, REACH | Yes |
| Country of Origin | USA |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-F6IO-OM1-R-T | 6-Strand | 0.08 lb |
| BK-F12IO-OM1-R-T | 12-Strand | 0.12 lb |
