OM1 Multimode 62.5 Micron Indoor/Outdoor Ruggedized Breakout AFL (Corning InfiniCor) - OFNR Riser Fiber Bulk Cable (per meter)

OM1 Multimode Bulk CableSKU: BK-F2R-OM1-R

Fiber Count: 2-Strand
Price:
Sale price$3.97 USD
Stock:
In stock

This item does not qualify for free shipping.

Description

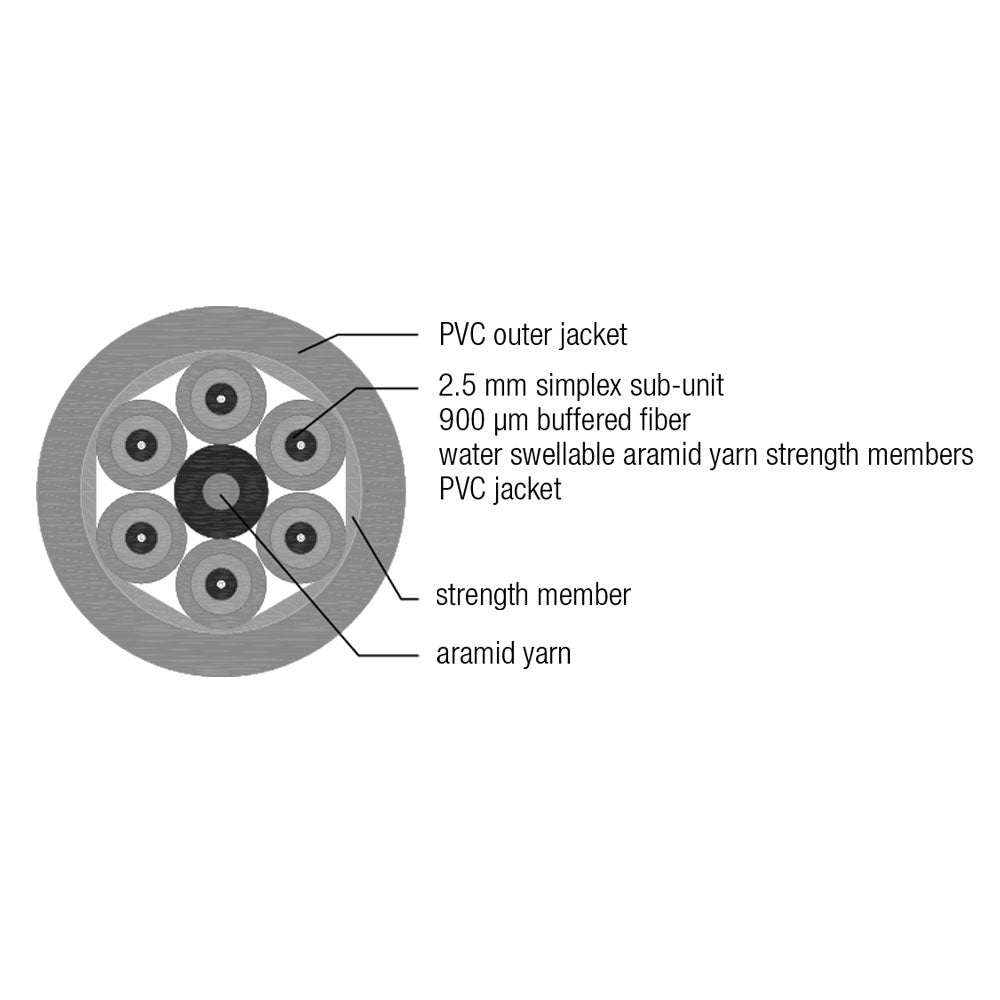

This bulk OM1 ruggedized fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications. Ideal for harsh environments such as mining and industrial locations.

Features

  • Fungus, water and UV-resistant PVC jacket featuring SP extrusion technology.
  • UL 1666 riser-rated with water-blocked sub-units.
  • Approved for harsh and campus environment, as well as mining and industrial applications.
  • Tested to meet or exceed GR-409-CORE and ICEA-S-104-696.
  • RoHS/REACH Compliant.
Physical Characteristics
Color Black
Fiber Optic Type OM1 62.5 micron Multimode Riser Indoor/Outdoor Ruggedized Breakout Cable
Fiber Count 2-Strand/6-Strand
Glass Fiber Corning InfiniCor
Micron Legs 3mm
Nominal Diameter 2-Strand: 8.4mm
6-Strand: 11.4mm
Tension(Installation) 2-Strand: 300 lbs
6-Strand: 450 lbs
Tension(Long Term) 2-Strand: 90 lbs
6-Strand: 120 lbs
Bending Radius(Installation) 2-Strand: 12.7cm
6-Strand: 17.3cm
Bending Radius(Long Term) 2-Strand: 8.6cm
6-Strand: 11.4cm
Operating Temperature -40℃ ~ +70℃
Storage Temperature -40℃ ~ +70℃
Installation -20℃ ~ +70℃
Attenuation Range @850nm 3.5dB/km
@1300nm 1.2dB/km
Bandwidth Range @850nm > 200 MHz/km
@1300nm > 600 MHz/km
Gigabit Ethernet Min. Link Distance 850nm = 300
1300nm = 550
10 Gigabit Ethernet Min. Link Distance 850nm = 32
Applications Harsh Environment, Mining, Industrial, Campus Environment
Fire Rating OFNR
MSHA Yes
UV Stabilizer Yes
Anti-Fungus Protection Yes
Enhanced Performance
Weathering 720 hours
Low/High Temp Bend -20℃ ~ 70℃
Cyclic Flex 2000 cycles
Impact 1500 impacts
Crush Resistance 2200 N/cm
Certification(s)
ETL Yes
c(ETL) Yes
Product Support
RoHS Yes
Country of Origin USA
SKU Options Weight
BK-F2R-OM1-R 2-Strand 0.28 lb
BK-F6R-OM1-R 6-Strand 0.56 lb
