Overview

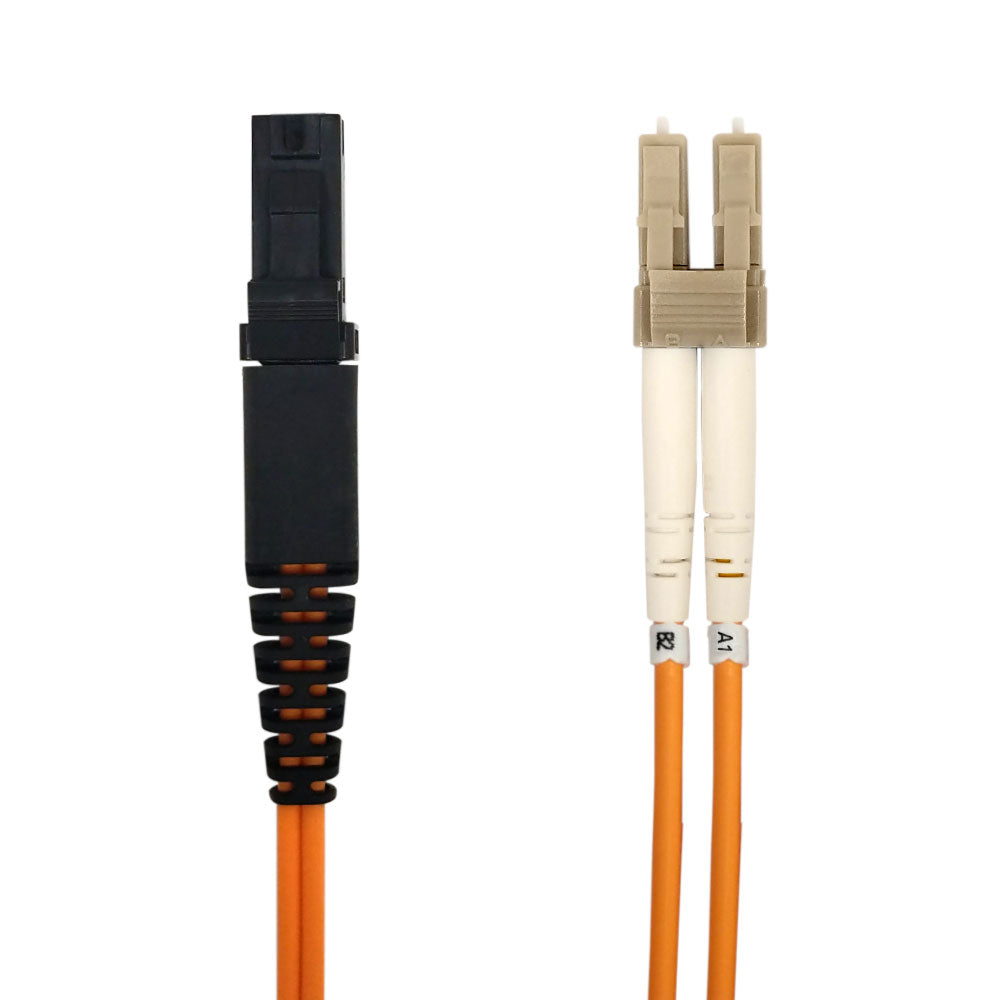

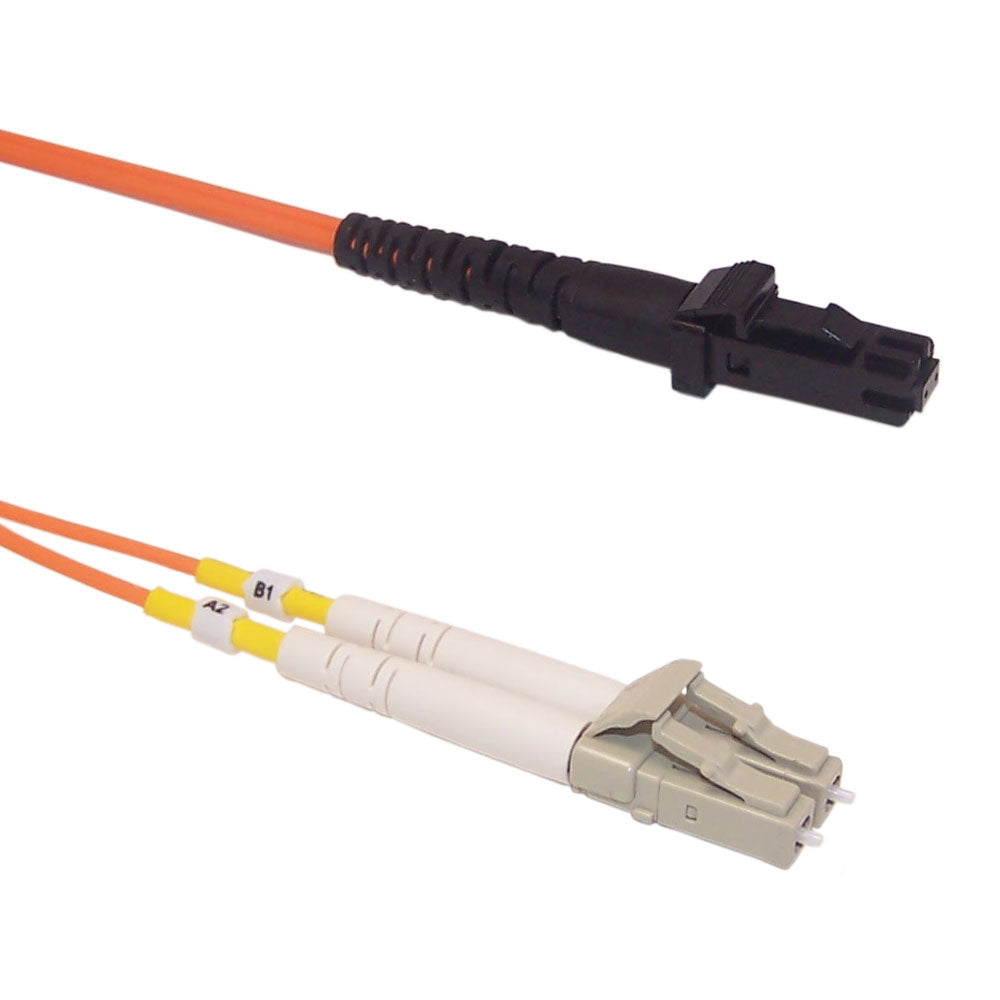

This 62.5 micron (OM1) fiber optic cable is made with Corning glass fiber. It has 3mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.
Premium Cables Made with CorningĀ® Glass FibersAll of our fiber cables are made with CorningĀ® glass fiber for optimal performance and quality. 100% Fully Tested and SerializedOur cables are 100% tested for insertion loss and interferometer tested for radius of curvature and come with a test report. Each cable is also individually serialized with cable labels at both ends which allows us to quickly access saved interferometer test reports, but also makes tracing quick and easy during installing.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Orange |
| Cable Diameter | 1.8mm |
| Fiber Size | 62.5/125 micron |
| Fiber Type | Multimode |
| Connector Ferrules | Ceramic |
| Fiber Classification | OM1 |
| Jacket Rating | Riser (OFNR) & Low Smoke Zero Halogen (LSZH) |
| Operating Temperature | -20Ā°C ~ +70Ā°C |
| Connector(s) | |
| Connector A | MTRJ Duplex Male |
| Connector B | LC Duplex Male |
| Performance | |
| Insertion Loss | <0.3db @ 1300nm |
| Speed | 1 Gbps |
| Interferometer Tested | 100% Tested |
| Approvals | |
| c(UL)us | Yes |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Warranty | Limited Lifetime |
| 1.5ft - 0.5m | 3ft - 1m | 6ft - 2m | 10ft - 3m | 15ft - 5m | 23ft - 7m | 30ft - 10m | 40ft - 12m | 50ft - 15m | 65ft - 20m | 80ft - 25m | 100ft - 30m | 131ft - 40m | 164ft - 50m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 lbs | 0.08 lbs | 0.09 lbs | 0.13 lbs | 0.20 lbs | 0.29 lbs | 0.38 lbs | 0.44 lbs | 0.52 lbs | 0.77 lbs | 0.86 lbs | 1.03 lbs | 1.39lbs | 2.05 lbs |
| SKU | Options | Weight |
| FO-111-03 | 1m | 0.07 lb |
| FO-111-06 | 2m | 0.1 lb |
| FO-111-10 | 3m | 0.15 lb |
| FO-111-15 | 5m | 0.2 lb |
| FO-111-30 | 10m | 0.33 lb |
