Description

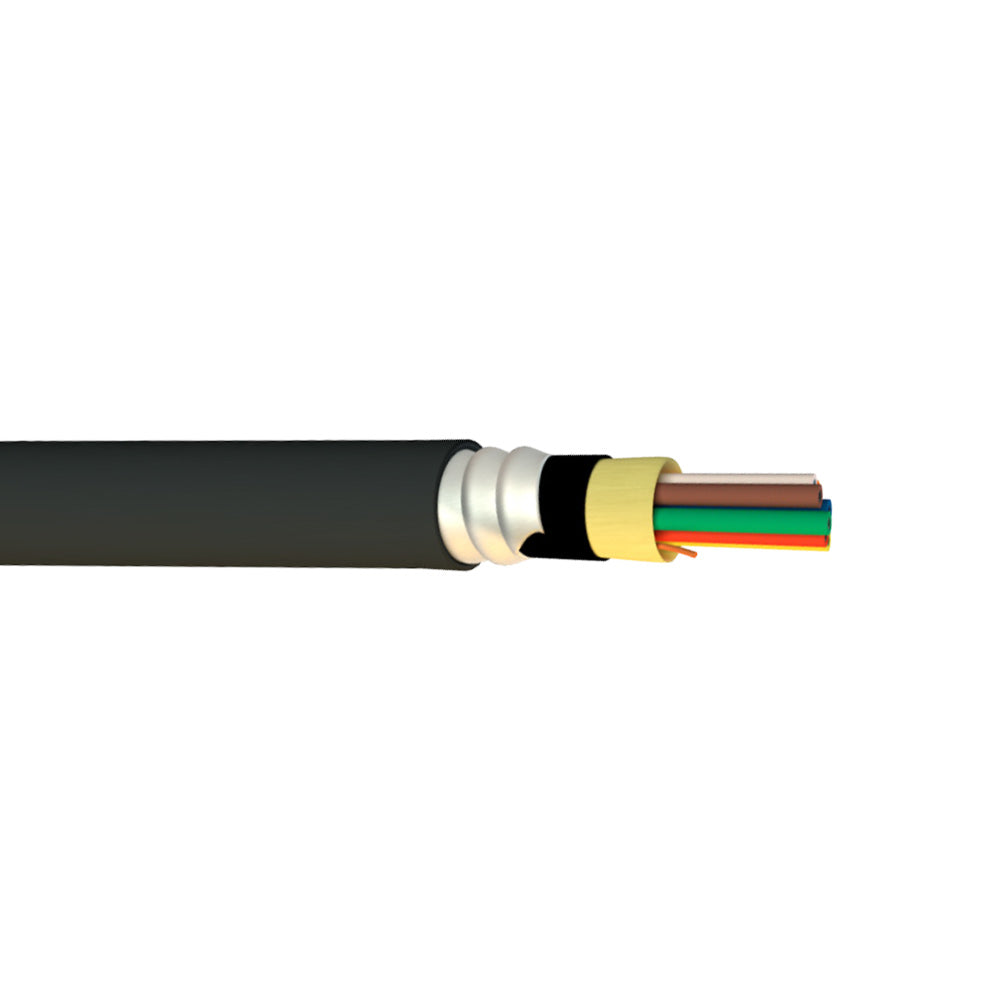

This bulk OM3 armored fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFCP rated for plenum and general inside plant environments. It's aluminum interlocking armor provides the best balance of ruggedness, flexibility, and low weight. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection and water-blocking elements for outdoor applications.
Features
- Cables are water blocked and meet water penetration requirements of GR-20-CORE
- Outer jacket is moisture-resistant, fungus-resistant and UV resistant for outdoor use
- Tested to meet or exceed EIA/TIA 568-A/GR-409-CORE and ICEA-S-104-696
- Approved for use in mining applications
- RoHS/REACH Compliant
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OM3 50 micron Multimode Plenum Indoor/Outdoor Armored Tight Buffered Cable |
| Fiber Count | 6-strand 12-strand |
| Glass Fiber | Corning ClearCurve |
| Armorer | Aluminum Interlocking Armor |
| Sub Unit Diameter | 900 Micron |
| Nominal Outer DiameterĀ | 6-strand Ā 13.0mm 12-strand 14.7mm |
| Tension | 6-strand 344lbs/km 12-strand 434lb/km |
| Bending Radius | 6-strand 26cm 12-strand 29.4cm |
| Installation Temperature | -10ĀŗC to +70ĀŗC |
| Operating Temperature | -40ĀŗC to +70ĀŗC |
| Storage Temperature | -40ā ~ +75ā |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.0dB/km |
| Bandwidth Range | @850nm > 2000 MHz/km @1300nm > 500 MHz/km |
| Gigabit Ethernet Min. Link Distance | @850nm = 1000 meters @1300nm = 550 meters |
| 10 Gigabit Ethernet Min. Link Distance | @850nm = 300 |
| Fire Rating | OFCP |
| UV Stabilizer | Yes |
| Anti-Fungus Protection | Yes |
| Water-Blocking | Yes |
| Certification(s) | |
| c(UL)us |
Yes |
| Product Support | |
| RoHS | Yes |
| Country of Origin | USA |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-F6AO-OM3-P-T | 6-Strand | 0.4 lb |
| BK-F12AO-OM3-P-T | 12-Strand | 0.8 lb |
