Overview

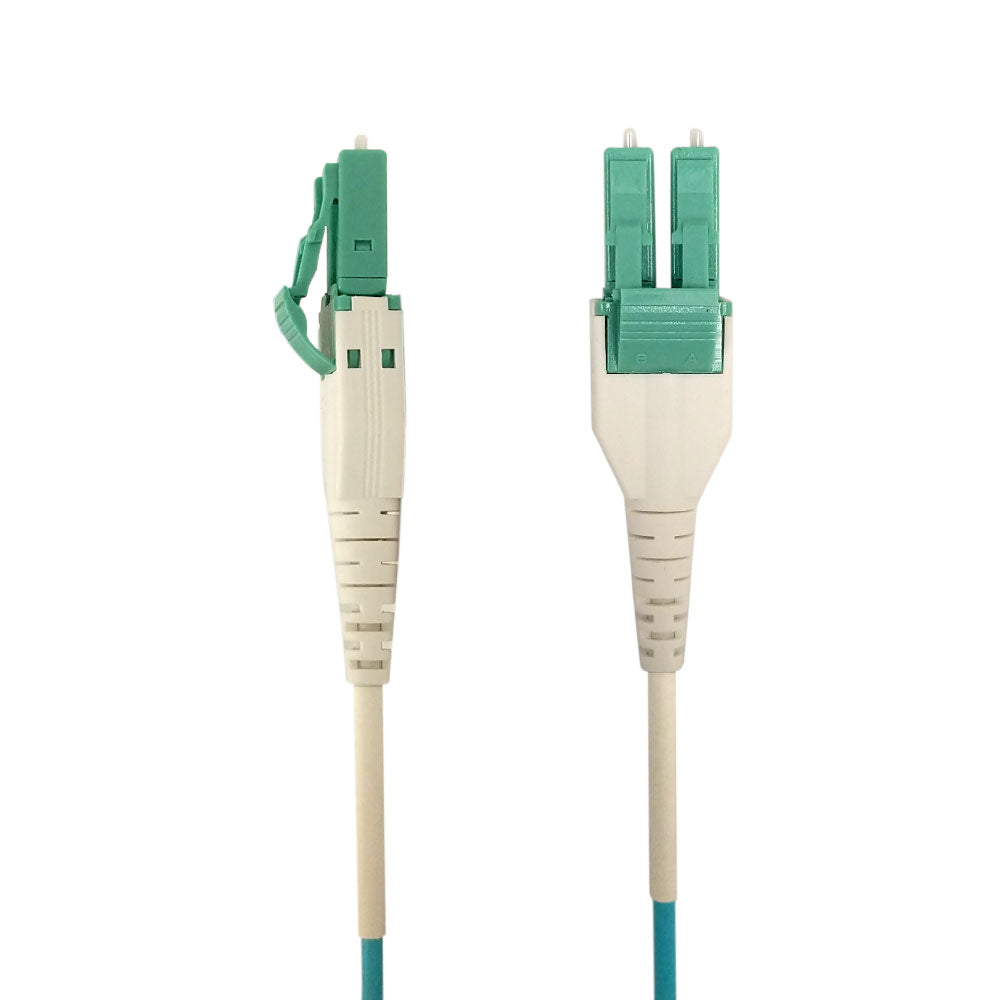

This 50 micron (OM3) laser optimized uniboot fiber optic cable is made with Corning glass fiber and consists of a duplex LC male connector on both ends. Its uniboot cable design, short boot connectors and round 2mm jacket, is ideal for high density server room applications. All cables are 100% tested for insertion loss, return loss and end-face geometry to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.
 |
Premium Cables Made with CorningĀ® Glass FibersAll of our fiber cables are made with CorningĀ® glass fiber for optimal performance and quality. 100% Fully Tested and SerializedOur cables are 100% tested for insertion loss and interferometer tested for radius of curvature and come with a test report. Each cable is also individually serialized with cable labels at both ends which allows us to quickly access saved interferometer test reports, but also makes tracing quick and easy during installing.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Cable Diameter | 2mm |
| Fiber Size | 50/125 micron - Laser Optimized |
| Fiber Type | Multimode |
| Glass Manufacturer | Corning Glass |
| Connector Ferrules | Ceramic |
| Fiber Classification | OM3 |
| Operating Temperature | -40C to +70C |
| Jacket Rating | Plenum (OFNP) |
| Connector(s) | |
| Connector A | LC Duplex Uniboot Male |
| Connector B | LC Duplex Uniboot Male |
| Performance | |
| Insertion Loss | <0.15db |
| Return Loss | ā„20db |
| Fiber Extension | -100nm |
| Ferrule End-Face Radius | 7 |
| Apex Offset | ā¤50um |
| Speed | 10Gbps, 40Gbps and 100Gbps Applications |
| Interferometer Tested | 100% Tested |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Warranty | Limited Lifetime |
| 3ft - 1m | 6ft - 2m | 10ft - 3m | 15ft - 5m | 23ft - 7m | 30ft - 10m | 50ft - 15m | 65ft - 20m | 80ft - 25m | 100ft - 30m | 131ft - 40m | 164ft - 50m |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.08 lbs | 0.09 lbs | 0.13 lbs | 0.20 lbs | 0.29 lbs | 0.38 lbs | 0.52 lbs | 0.77 lbs | 1.03 lbs | 1.03 lbs | 1.39 lbs | 2.05 lbs |
| SKU | Options | Weight |
| FO-408UB-03P | 1m | 0.07 lb |
| FO-408UB-06P | 2m | 0.1 lb |
| FO-408UB-10P | 3m | 0.15 lb |
| FO-408UB-15P | 5m | 0.2 lb |
| FO-408UB-23P | 7m | 0.24 lb |
| FO-408UB-30P | 10m | 0.33 lb |
| FO-408UB-50P | 15m | 0.5 lb |
| FO-408UB-65P | 20m | 0.63 lb |
| FO-408UB-80P | 25m | 0.77 lb |
| FO-408UB-100P | 30m | 0.95 lb |
| FO-408UB-131P | 40m | 1.33 lb |
| FO-408UB-164P | 50m | 1.55 lb |
