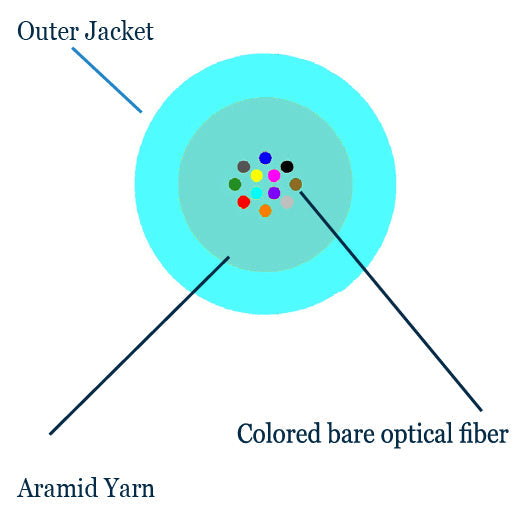

This bulk OM4 fiber cable is indoor plenum rated and combination of high fiber counts with a compact, space saving design. It is OFNP rated for plenum and general inside terminating MPO cables typically.
Features
- 900µm Micro-Distribution OFNP rated construction
- 250µm colored bare fibers
- Corning ClearCurve OM4 optical fibers
- Jacket print ensures product identification and fiber compatibility
- Small O.D. for tight spaces
- Meets the application requirement of National Electric Code (NEC) Article 770
Specifications
Physical Characteristics
|
Color |
Aqua
|
Fiber Optic Type |
OM4 50 micron Multimode OFNP Plenum Indoor Micro-Distribution Cable |
Fiber Count |
12-Strand |
Glass Fiber
|
Corning ClearCurve |
Sub Unit Diameter |
900 Micron |
Nominal Diameter |
2.95mm
|
Bending Radius (Installation) |
4.7cm
|
Bending Radius (Operation) |
2.95cm
|
Pulling tension |
300lbs
|
Operating Temperature |
0 deg C ~ +70 deg C |
Storage Temperature |
-40 deg C ~ +70 deg C |
Performance
|
Wavelength |
850nm / 1300nm |
Attenuation Max. |
3.0dB/km @850nm 1.0dB/km @1300nm |
Link Length
|
550m (10Gbps @850nm)
|
Bandwidth (EMB High Performance) |
4700MHz.km @850nm |
Fire Rating |
OFNP Plenum |
Certification(s)
|
UL |
Yes |
Product Support
|
RoHS, REACH |
Yes |
Country of Origin |
USA |
Packaging Information
|
Package Quantity |
Per meter |
