OM4 Multimode 50 Micron Armored (Corning ClearCurve) - OFCP Plenum Fiber Bulk Cable (per meter)

Fiber Optic Bulk CableSKU: BK-F6A-OM4-P-T
No reviews

Fiber Count: 6-Strand
Sale price$5.78 USD
In stock

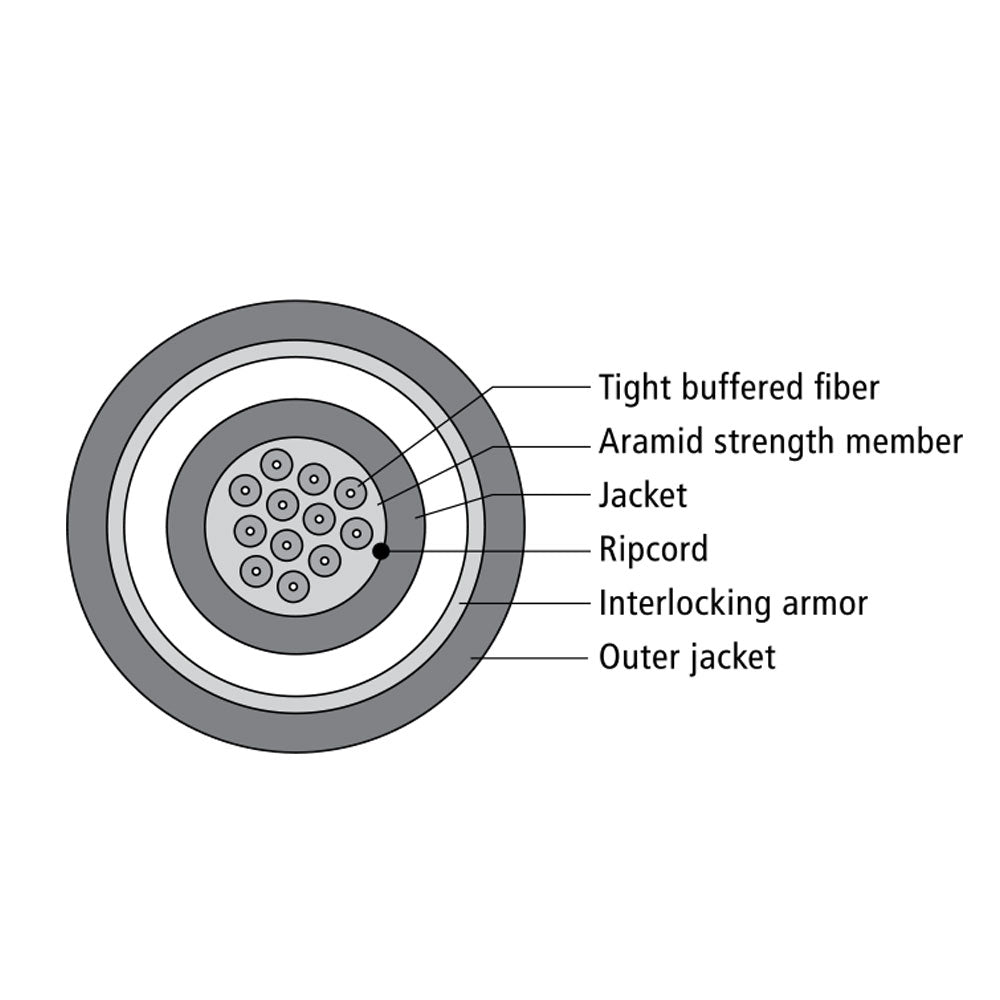

This bulk armored fiber cable is plenum rated and has a tight buffered, aluminum interlocking armored construction. It is OFCP rated for plenum and general inside plant environments. It's interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Ideal for harsh environments such as manufacturing plants, data centers and inside of buildings where additional ruggedness is required. The cable is also rodent resistant.


  • Routing inside of buildings where additional ruggedness is required or where increased rodent resistance is required.
  • Extra protection for fiber optic cables in harsh industrial environments.
  • Approved for use in manufacturing plants.
  • High-density routings in data center application.
Physical Characteristics
Color Aqua
Fiber Optic Type OM4 50 micron Multimode Plenum Armored Tight Buffered Cable
Fiber Count 6-Strand / 12-Strand
Glass Fiber Corning ClearCurve
Sub Unit Diameter 900 Micron
Nominal Diameter

6-Strand : 13.0mm

12-Strand : 14.7mm


6-Strand : 344lbs/km

12-Strand : 434lbs/km

Bending Radius

6-Strand : 26.0cm

12-Strand : 29.4mm

Operating Temperature -0°C ~ +70°C
Storage Temperature -40°C ~ +70°C
Attenuation Range @850nm 3.0dB/km
@1300nm 1.0dB/km
Bandwidth Range @850nm > 4700 MHz/km
Gigabit Ethernet Min. Link Distance 850nm = 550m
10 Gigabit Ethernet Min. Link Distance 850nm = 600m
Fire Rating OFCP
UL Yes
Product Support
RoHS Yes
Country of Origin USA
Packaging Information
Package Quantity 1
Product Weight 0.04 lbs
