Description
Overview

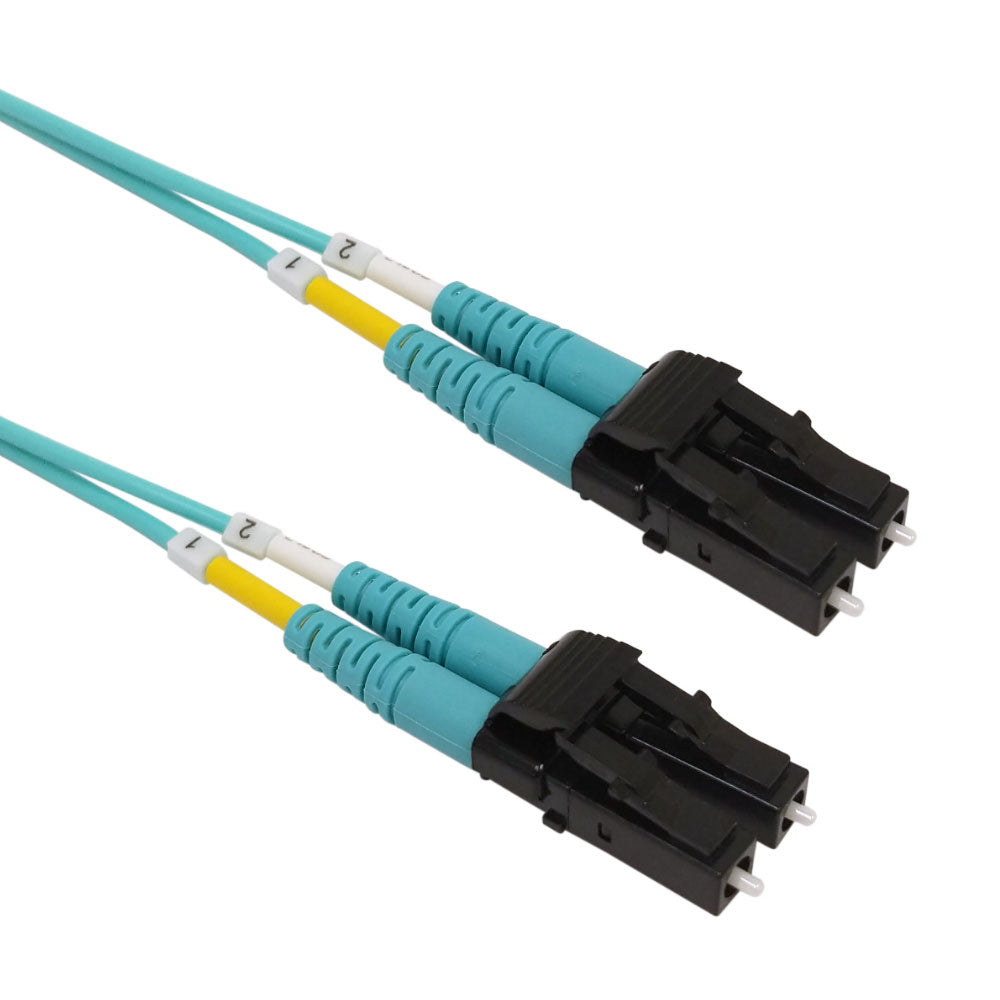

This 50 micron (OM4) laser optimized fiber optic cable is made with Corning glass fiber. It has 1.6mm jacket and rated plenum (OFNP). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.
Ultra-Thin 1.6mm Diameter JacketDesigned with an ultra-thin 1.6mm jacket for high density applications, it is 22% thinner than a regular cable. |

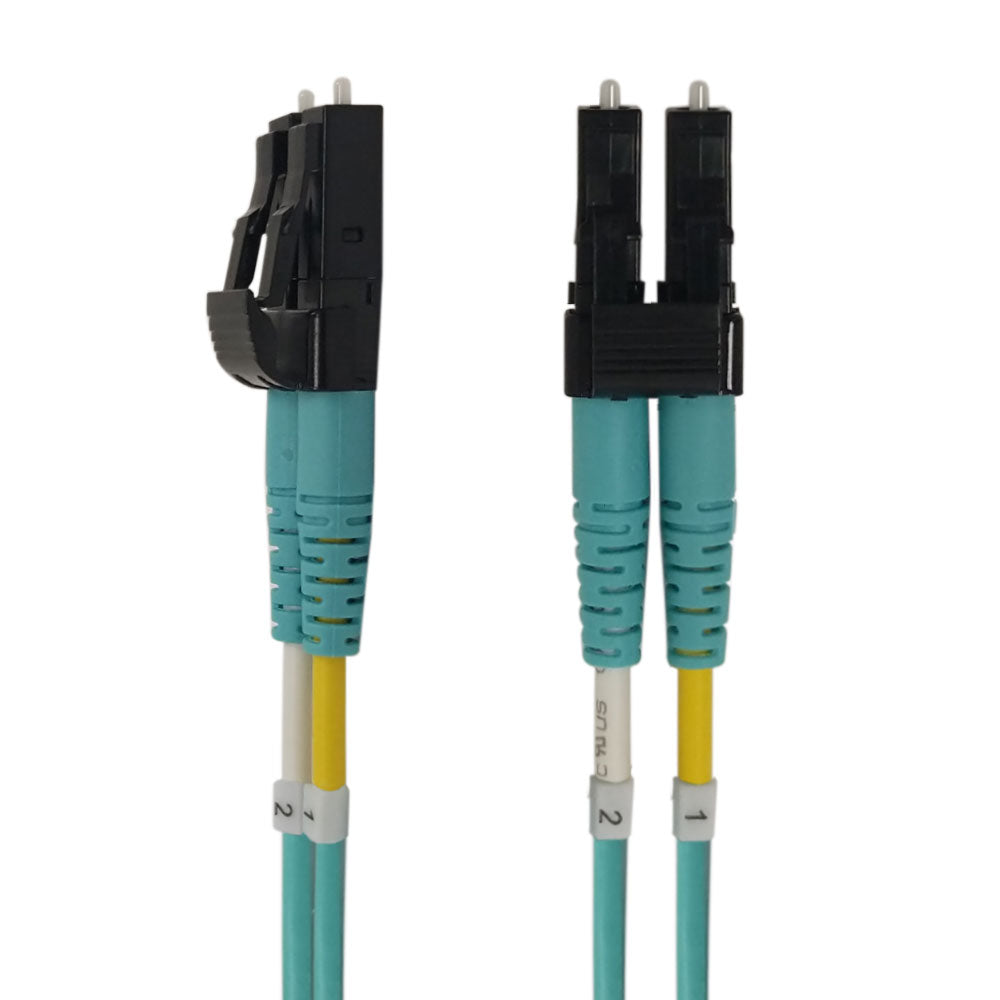

Short Body Boots20mmshort body boots allow for a tighter bend radius. |
Premium Cables Made with CorningĀ® Glass FibersAll of our multimode fiber cables are made with CorningĀ® ClearCurve glass for optimal performance and quality. |
Individually Serialized CablesEach cable is individually serialized with cable labels at both ends which allows us to quickly access saved detailed interferometer test reports, but also makes tracing quick and easy during installation. |
Plenum OFNP Rated JacketThese cables are OFNP rated for use in plenum air spaces such as overhead and below floor cable runs in a data center. |
Bend Insensitive FibersOur multimode fiber cables are designed with CorningĀ® ClearCurve glass which can withstand tighter bends than traditional multimode fiber. |
Ceramic FerruleAll our connectors are made with ceramic ferrules which have a high durability and reliable dimensional control to ensure optimal insertion and return loss. |
3D Interferometer TestedEach of our cables are individually interferometer tested for radius of curvature, apex offset and fiber height. |
CertificationsOur fiber optic cable is c(UL)us certified to meet the appropriate safety standards. |
100% Fully IL TestedOur multimode cables are 100% tested for insertion loss to stringent parameters and come with a test report. |
Lifetime Warranty
Our cables come with a limited lifetime warranty against manufacturing defects. |
Application
Specifications
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Cable Diameter | 1.6mm |
| Fiber Size | 50/125 micron - Laser Optimized |
| Fiber Type | Multimode |
| Glass Manufacturer | Corning Glass |
| Connector Ferrules | Ceramic |
| Fiber Classification | OM4 |
| Jacket Rating | Plenum (OFNP) |
| Operating Temperature | -10Ā°C ~ +70Ā°C |
| Connector(s) | |
| Connector A | LC Duplex Male |
| Connector B | LC Duplex Male |
| Performance | |
| Insertion Loss | <0.3db @ 1300nm |
| Speed | 10Gbps, 40Gbps and 100Gbps Applications |
| Interferometer Tested | 100% Tested |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Warranty | Limited Lifetime |
| 1.5ft - 0.5m | 3ft - 1m | 5ft - 1.5m | 6ft - 2m | 10ft - 3m | 13ft - 4m | 15ft - 5m | 20ft - 6m | 23ft - 7m | 26ft - 8m | 30ft - 10m | 40ft - 12m | 50ft - 15m | 65ft - 20m | 80ft - 25m | 100ft - 30m | 115ft - 35m | 131ft - 40m | 148ft - 45m | 164ft - 50m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.03 lbs | 0.04 lbs | 0.04 lbs | 0.05 lbs | 0.07 lbs | 0.08 lbs | 0.10 lbs | 0.12 lbs | 0.15 lbs | 0.15 lbs | 0.19 lbs | 0.22 lbs | 0.26 lbs | 0.39 lbs | 0.43 lbs | 0.52 lbs | 0.59 lbs | 0.70 lbs | 0.85 lbs | 1.03 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| FO-458A-01.5P | 0.5m | 0.05 lb |
| FO-458A-03P | 1m | 0.07 lb |
| FO-458A-05P | 1.5m | 0.07 lb |
| FO-458A-06P | 2m | 0.1 lb |
| FO-458A-10P | 3m | 0.15 lb |
| FO-458A-13P | 4m | 0.17 lb |
| FO-458A-15P | 5m | 0.2 lb |
| FO-458A-20P | 6m | 0.21 lb |
| FO-458A-23P | 7m | 0.24 lb |
| FO-458A-26P | 8m | 0.26 lb |
| FO-458A-30P | 10m | 0.33 lb |
| FO-458A-40P | 12m | 0.38 lb |
| FO-458A-50P | 15m | 0.5 lb |
| FO-458A-65P | 20m | 0.63 lb |
| FO-458A-80P | 25m | 0.77 lb |
| FO-458A-100P | 30m | 0.95 lb |
| FO-458A-115P | 35m | 1.1 lb |
| FO-458A-131P | 40m | 1.33 lb |
| FO-458A-148P | 45m | 1.4 lb |
| FO-458A-164P | 50m | 1.55 lb |
