Description
This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.
| Physical Characteristics | |
|---|---|
| Color | Lime Green |

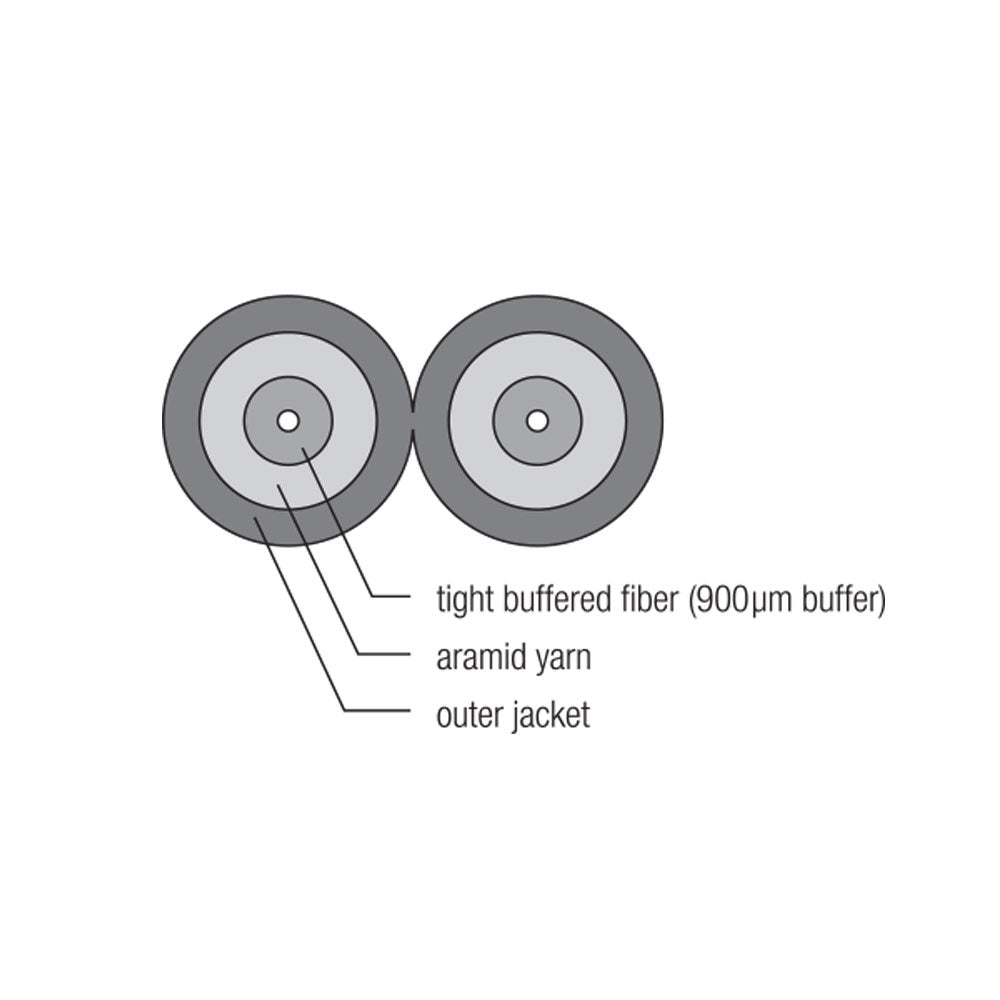

| Fiber Optic Type | Zipcord 2.0 Multimode 50/125um |
| Fiber Core Diameter | 50.0 micron ± 2.0 micron |
| Maximum Tensile Load | Short Term : N 150 Long Term : N 90 |
| Minimum Bending Radius | Dynamic : 50mm Static : 30mm |
| Fiber Count | 2C |
| Tight Buffer Diameter | 0.9 micron ±0.05 |
| Cable Diameter | 2mm |
| Fire Rating | LSZH |
| Uniformly Distributed | Kevlar |
| Operating Temperature | -20°C ~ +60°C |
| Cable Dimension | 2.0±0.1 × 4.1±0.2 mm |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.03 lbs [0.01 kg] |
