Description
This bulk OM5 fiber cable is indoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments.
Features

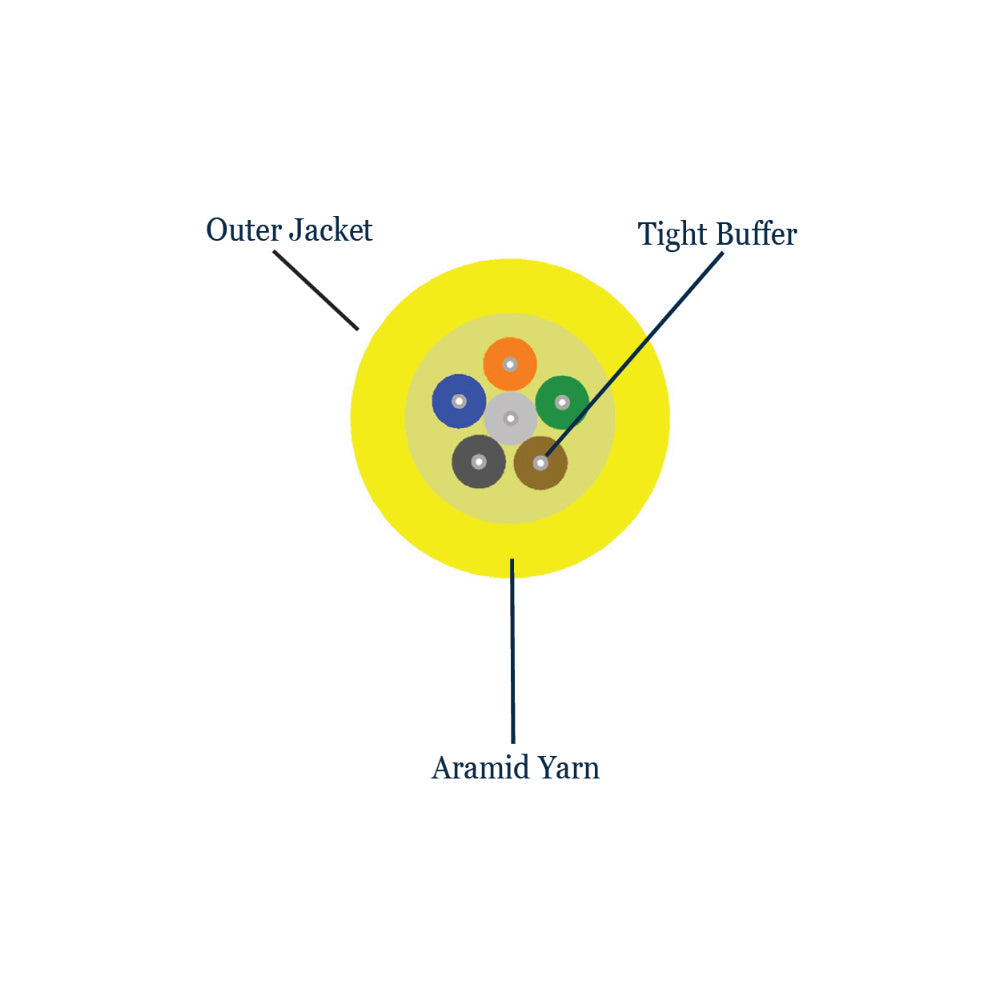

- 900Āµm Tight Buffers
- Aramid yarn strength members
- Exclusive use of CorningĀ® optical fibers
- Jacket print ensures product identification and fiber compatibility
- Durable jacket offers added protection during installation and in rugged use applications
| Physical Characteristics | |
|---|---|
| Color | Green |
| Fiber Optic Type | OM5 50 micron Multimode Plenum Indoor Cable |
| Fiber Count | 6-Strand/12-Strand |
| Glass Fiber | Corning ClearCurve |
| Outer Jacket Material/Tight Buffer Material | Flame Retardant PVC |
| Strength Member | Aramid Yarn |
| Weight |
57 lbs / km (6-strand) 81 lbs/km (12-strand) |
| Nominal Outer Diameter |
4.8mm (6-strand) 5.8mm (12-strand) |
| Minimum Bend Radius, Installation |
7.2cm (6-strand) 8.7cm (12-strand) |
| Minimum Bend Radius, Operation |
4.8cm (6-strand) 5.8cm (12-strand) |
| Operating Temperature | 0Ā°C ~ +70Ā°C |
| Storage Temperature | -40Ā°C ~ +70Ā°C |
| Wavelength | 850 / 1300nm |
| Maximum Attenuation | 3.0 / 1.0 dB/km |
| Link Length | 550m (10Gb/s@850nm) |
| Bandwidth (EMB High Performance)[MHz.km] | 4,700 @850 |
| Certification(s) | |
| UL | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
Spec Sheets
Lead-time
We currently have this cable in stock, please allow approx. 1–2 business days for custom cutting and shipping. Please contact us at sales@infinitecables.com or 1-866-207-6442 with any questions.
Product Weights
The weights below are volumetric weight for shipping purposes, please see product specs for actual weights.
| SKU | Options | Weight |
| BK-F6CP-OM5-P-T | 6-Strand | 0.07 lb |
| BK-F12CP-OM5-P-T | 12-Strand | 0.11 lb |
