Description

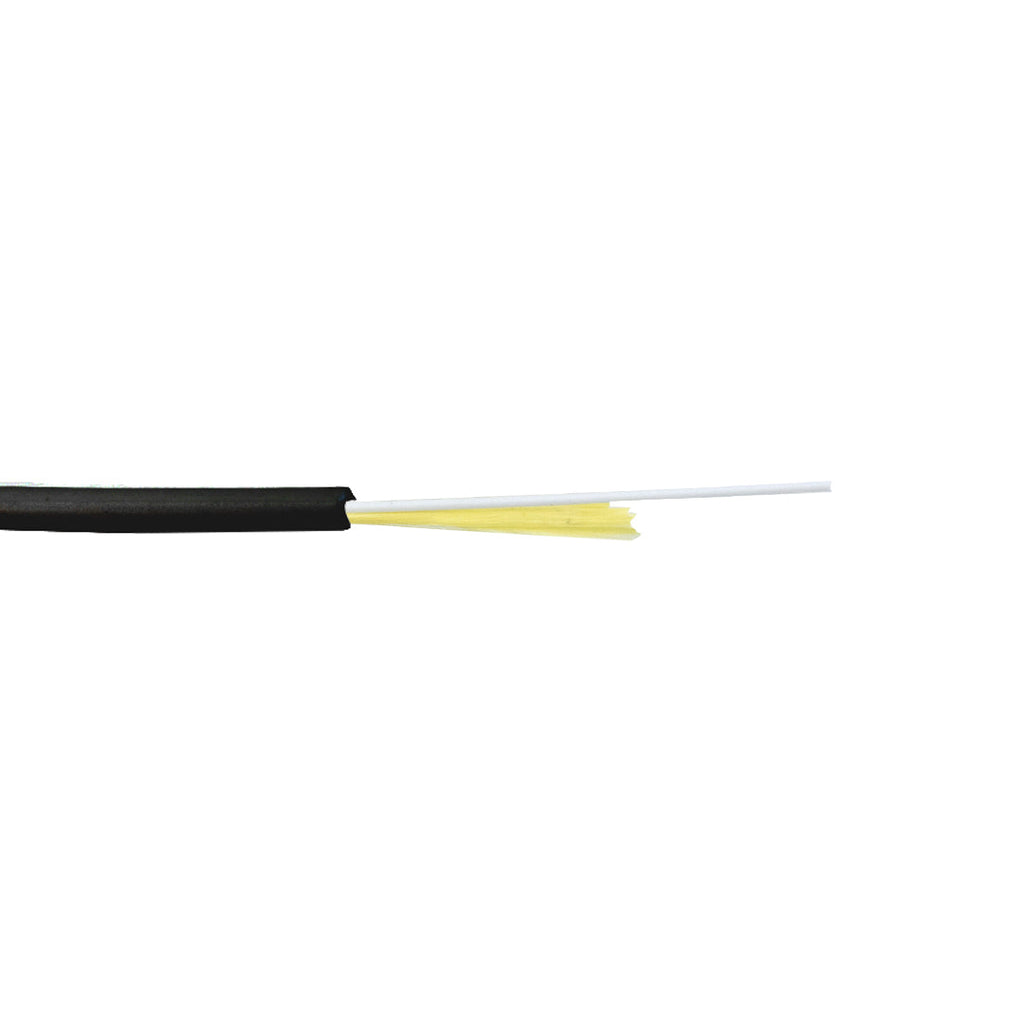

This OS2 Singlemode 9 Micron ((ClearCurve ZBL) fiber bulk cable is designed for both indoor and outdoor applications. Featuring 4.8mm jacket and OFNR riser rating, this cable provides enhanced flexibility and resilience, making it suitable for a wide range of environments.
| Physical Characteristics | |
|---|---|
| Color | Black/ White |
| Length | 458m |
| Fiber Optic Type | 9 micron Singlemode I/O Cable |
| Fiber Count | 1-Fiber |
| Glass Fiber | ClearCurve ZBL |
| Tight Buffer Fiber Material | PVC |
| Strength Member | Aramid Yarn |
| Nominal Outer Diameter | 4.8±0.1mm |
| Fire Rating | OFNR Riser |
| Bend Radius (Install) | 7.2cm |
| Bend Radius (Operate]) | 4.8cm |
| Temperature | Storage : -40℃~70℃ Operating : -40℃~70℃ |
| Optical Characteristics/ Performance | |
| Mode Field Diameter |
@1310nm : 8.6μm @1550nm : 9.65μm |
| Numerical Aperture | 0.14 |
| Attenuation (Max.) | @1550 : ≤0.4dB/km |
| Link Length | @1550 : 1GB/s - 10,000mtr @1550 : 10GB/s - 5,000mtr |
| Product Support/Certifications | |
| UL | Yes |
| RoHS | Yes |
| REACH | Yes |
| Country of Origin | USA |
| Packaging Information | |
| Packaging |

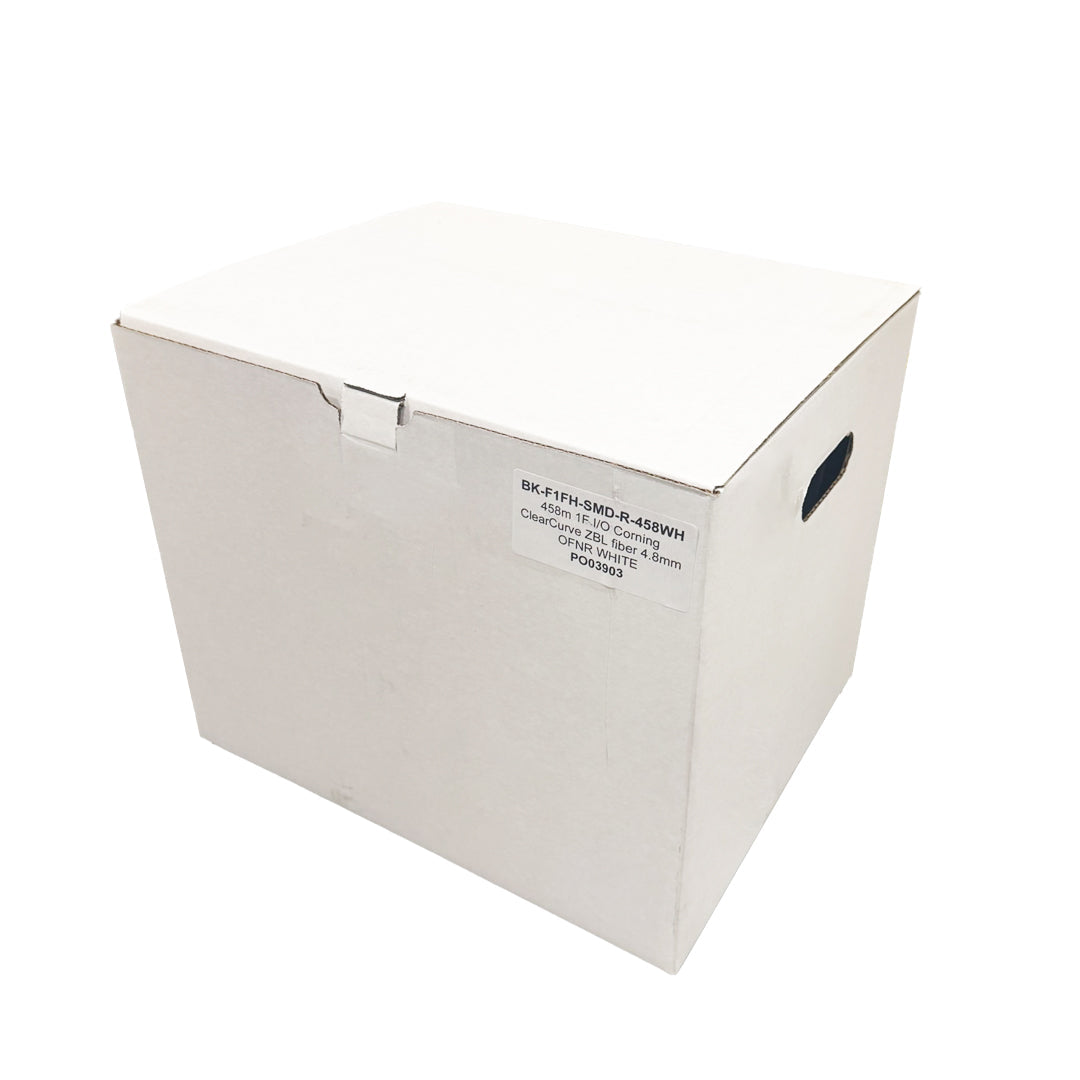

Spool |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| BK-F1FH-SMD-R-458BK | Black | 26.2 lb |
| BK-F1FH-SMD-R-458WH | White | 26.2 lb |
