OS2 Singlemode 9 Micron (Corning) Duplex Fiber Zip Cord - 1.6mm Jacket - OFNP Plenum Fiber Bulk Cable (per meter) - 2-strand

OS2 Singlemode Bulk CableSKU: BK-F2Z-SMA-P
Price:
$0.35 USD
Stock:
In stock

This item does not qualify for free shipping.

Description

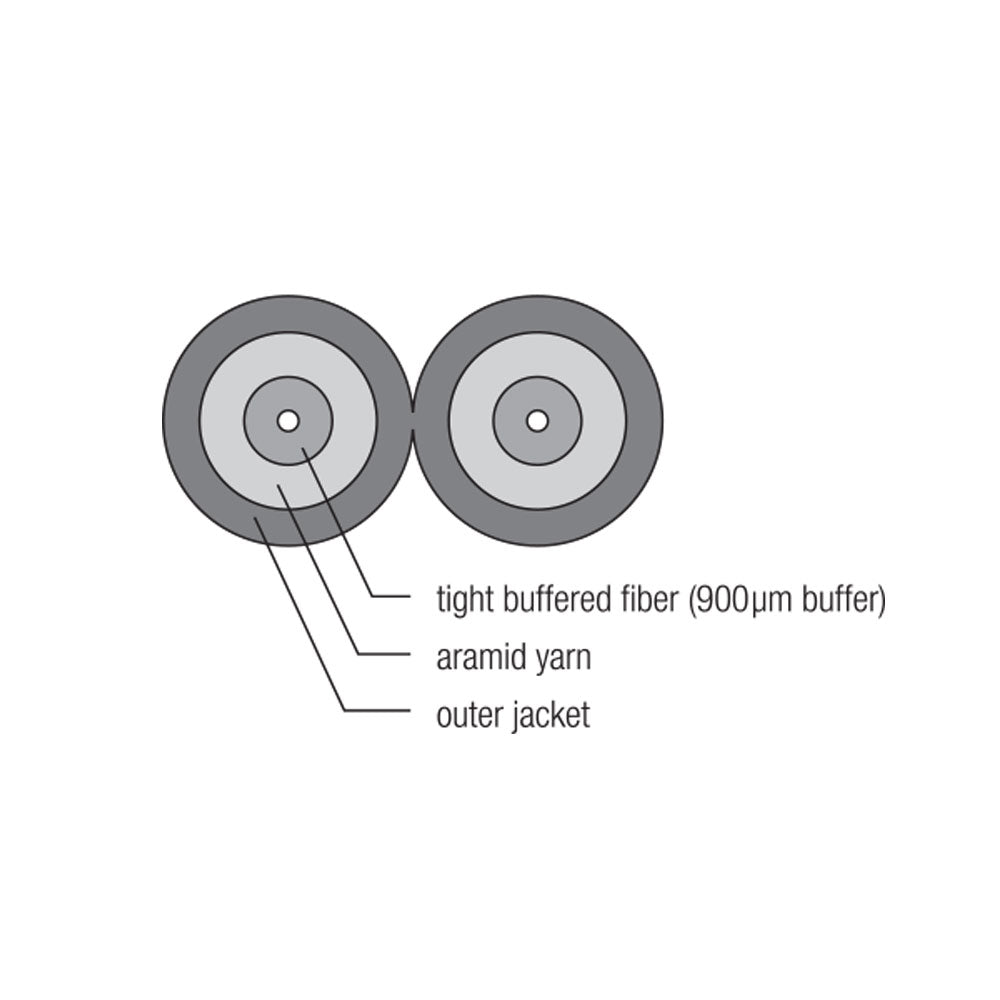

This bulk fiber optic cable is a singlemode duplex 9 micron plenum zip cord 1.6mm jacket OFNP.Ā Ā This cable is primarily used in the assembly of duplex fiber patch cords used in server rooms, data centers and other point to point indoor applications.

    Physical Characteristics
    Color Yellow
    Fiber Optic Type Plenum ZipcordĀ 1.6 Singlemode Duplex 9/125 micron
    Fiber Core Diameter 9 micron Ā±Ā 2.5 micron
    Nominal Diameter 1.6mm x 3.4mm
    Tension(Installation) 27 lbs
    Tension(Long Term) 13.5Ā lbs
    Bending Radius(Installation) 2.0cm
    Bending Radius(Long Term) 1.0cm
    Operating Temperature -10ā„ƒ ~ +60ā„ƒ
    Storage Temperature -20ā„ƒ ~ +70ā„ƒ
    Maximum Attenuation

    0.4dB/km @1310nm ~ 1625mm

    0.4dB/km @1550nm
    Macro-BendingĀ LossĀ Radius: 20mm,1 Circle

    ā‰¤0.75dB @1550nm

    ā‰¤1.5dB @1625nm
    Cable Cut-off Wavelength ā‰¤1260nm
    Max. Crush Resistance 1000Ā N/100mm2
    Fire Rating OFNP
    Certification(s)
    c(UL)us Yes
    Product Support
    RoHS Yes
    Country of Origin China

    Download attachment

    SKU Weight
    BK-F2Z-SMA-P 0.03 lb
