This bulk OS2 singlemode fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside/outside plant environments.
Features
- 900Āµm Tight Buffers
- Water blocking aramid yarn strength members
- UV resistant jacket, OFNP rated construction
- Exclusive use of CorningĀ® optical fibers
- Durable jacket offers added protection during installation and in rugged use applications
Physical Characteristics
|
Color |
Black |
Fiber Optic Type |
OS2 9 micron SinglemodeĀ Plenum Indoor/Outdoor Tight Buffered Cable |
Fiber Count |

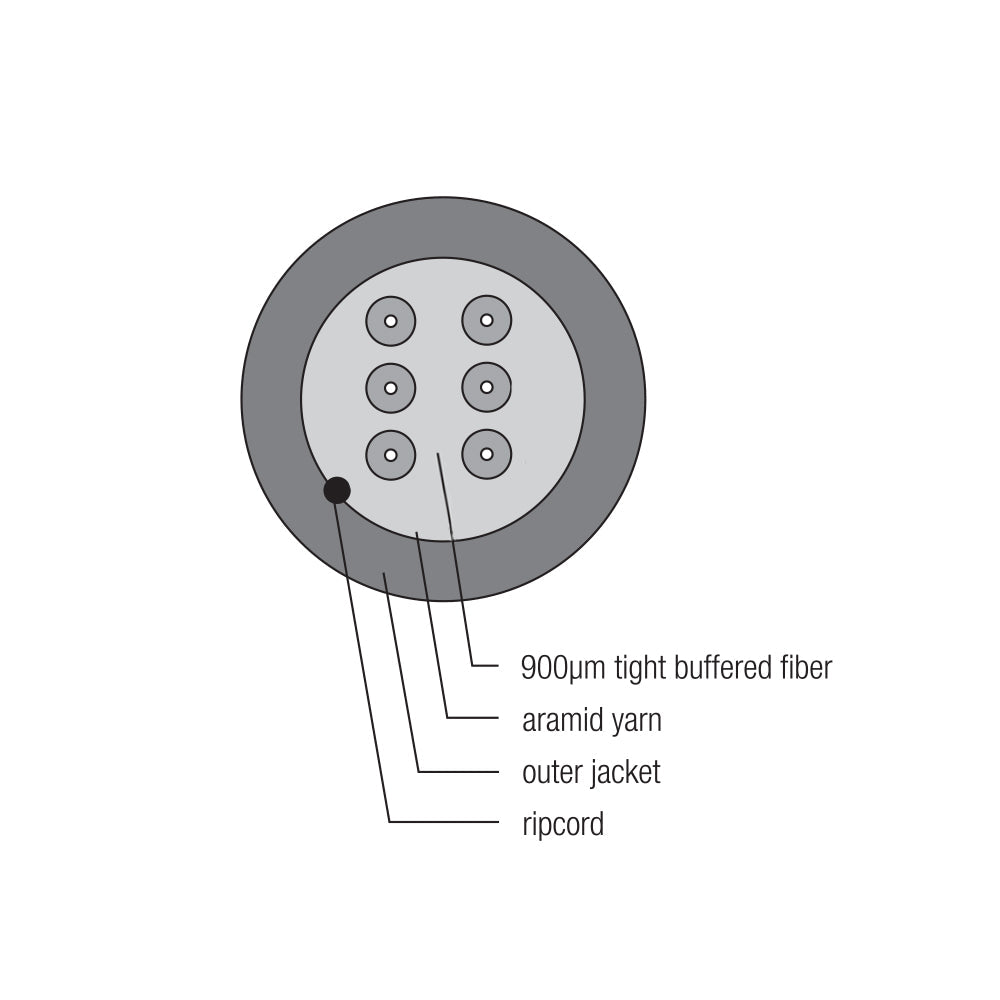

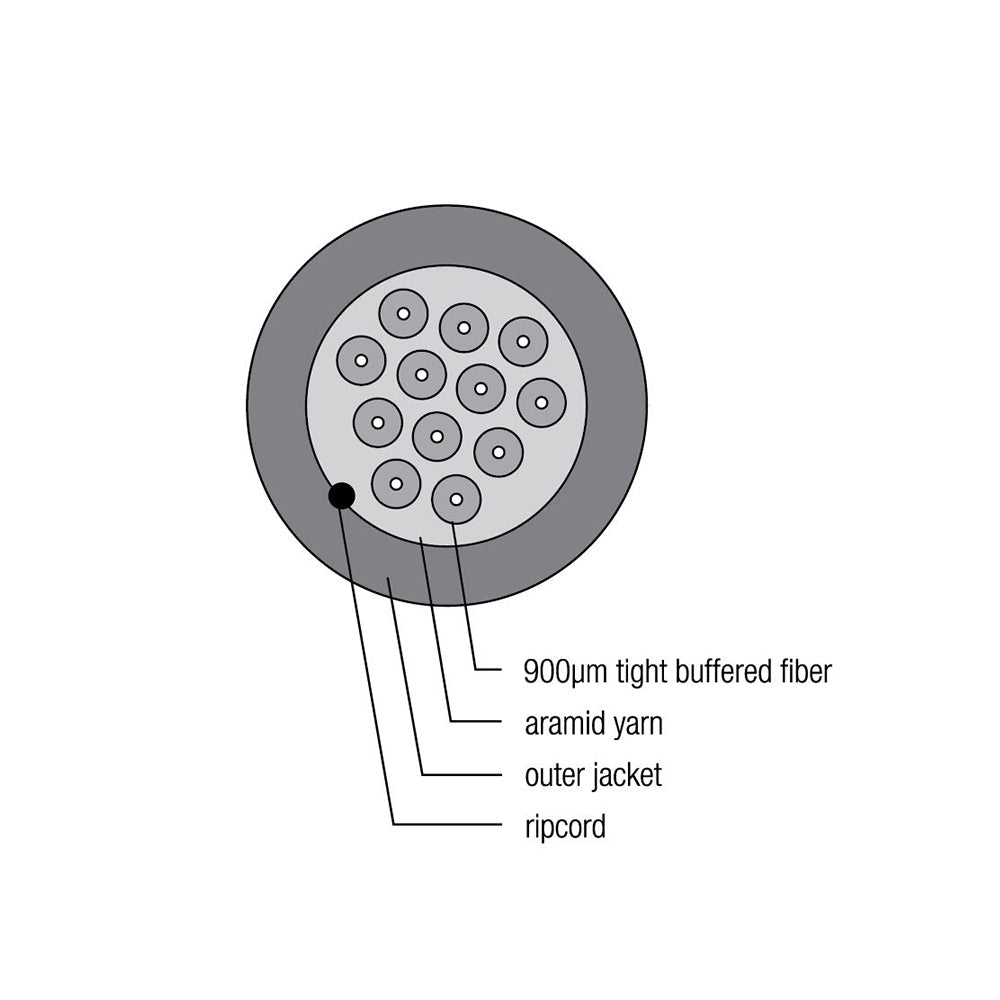

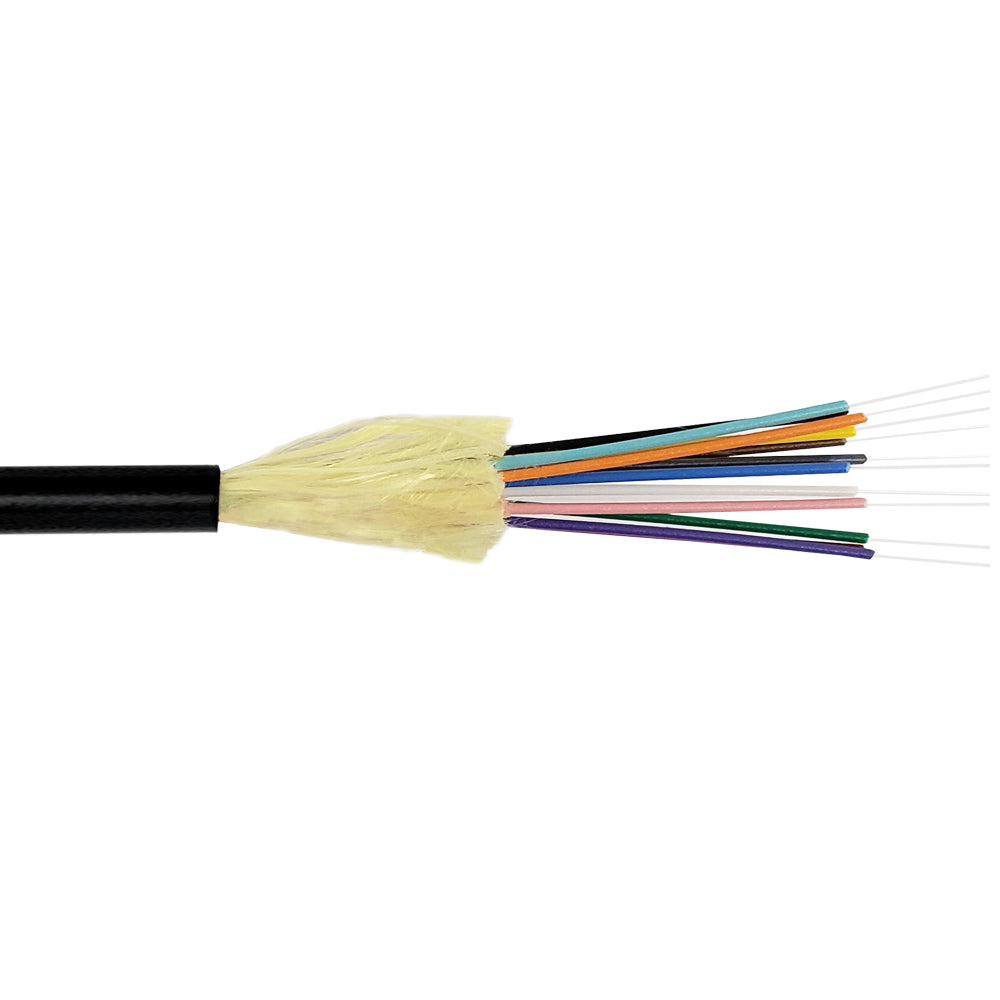

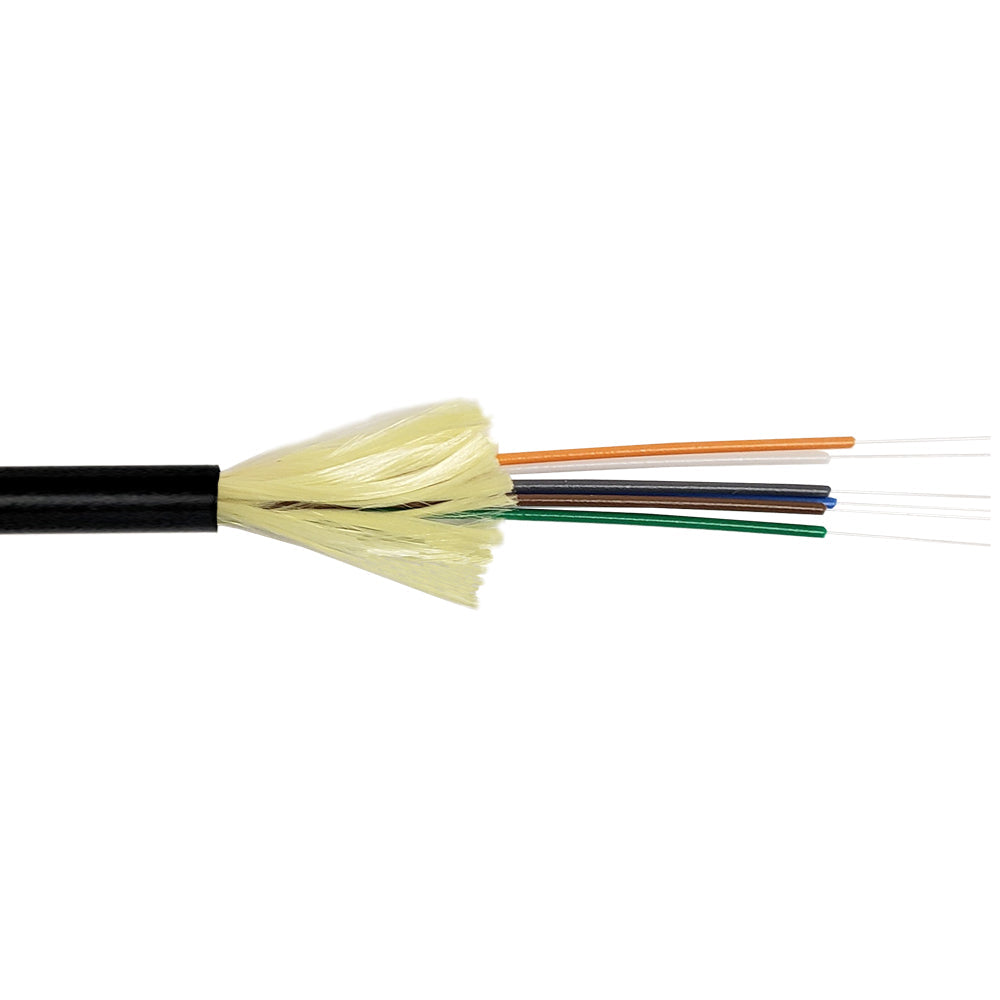

2-Strand /Ā 6-Strand / 12-Strand |
Glass Fiber
|
Corning SMF-28 Ultra |
Sub Unit Diameter |
900 Micron |
Outer Jacket MaterialĀ
|
Flame Retardant PVC, UV Resistant |
Tight Buffer Material |
Flame Retardant PVC |
Strength Member |
Aramid Yarn |
Nominal Diameter |
4.4mm (2-Strand)
4.8mm (6-Strand)
5.8mm (12-Strand)
|
Minimum Bend Radius Installation |
6.6cmĀ (2-Strand)
7.2cm (6-Strand)
8.7cm (12-Strand)
|
Minimum Bend Radius Operation |
4.4cmĀ (2-Strand)
4.8cm (6-Strand)
5.8cm (12-Strand)
|
Operating Temperature |
-40Ā°C ~ +70Ā°C |
Storage Temperature |
-40Ā°C ~ +70Ā°C |
Performance
|
Wavelength |
1310 / 1550nm |
Max Attenuation |
0.5 / 0.4 dB/km
|
Fire Rating |
OFNP Plenum, FT6
|
Certification(s)
|
UL |
Yes |
Product Support
|
RoHS |
Yes |
Country of Origin |
USA |
