Description
Overview

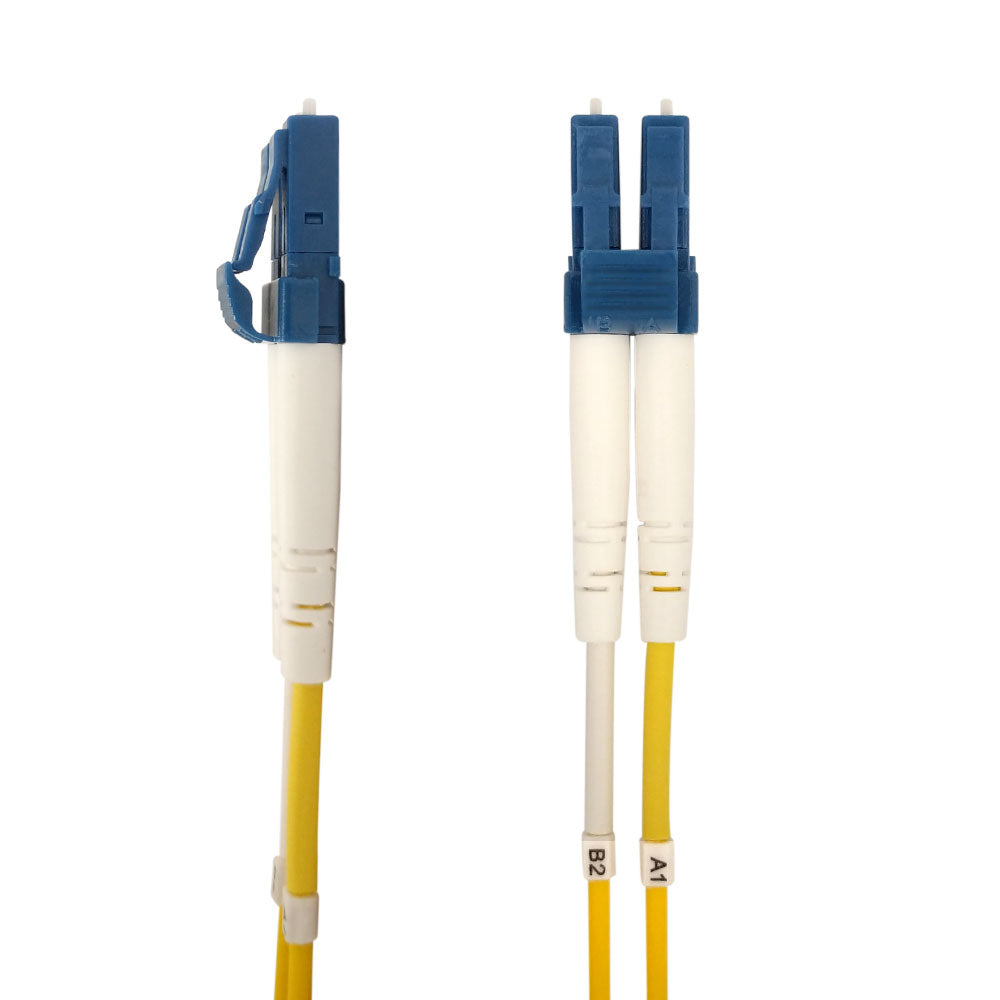

These 9 micron (OS2) fiber optic cable is made with Corning ClearCurve LBL glass fiber, which exceeds ITU-T G.657.A2/B2 and remains compatible and fully compliant with ITU-T G.652.D. It has 3mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.
Premium Cables Made with CorningĀ® Glass FibersAll of our singlemode fiber cables are made with CorningĀ® (ClearCurve LBL) glass for optimal performance and quality. |
Individually Serialized CablesEach cable is individually serialized with cable labels at both ends which allows us to quickly access saved detailed interferometer test reports, but also makes tracing quick and easy during installation. |
Dual Rated LSZH/OFNR Rated JacketThese cables have a dual rating (low-smoke-zero-halogen and riser) ideal for use in data center installations. |
100% Fully IL & RL TestedOur singlemode cables are 100% tested for insertion loss and return loss to stringent parameters and come with a test report. |
Ceramic FerruleAll our connectors are made with ceramic ferrules which have a high durability and reliable dimensional control to ensure optimal insertion and return loss. |
3D Interferometer TestedEach of our cables are individually interferometer tested for radius of curvature, apex offset and fiber height. |
CertificationsOur fiber optic cable is c(UL)us certified to meet the appropriate safety standards. |
Lifetime WarrantyOur cables come with a limited lifetime warranty against manufacturing defects. |
Application
Specifications
| Physical Characteristics | |
|---|---|
| Color | Yellow |
| Cable Diameter | 3mm |
| Fiber Size | 9/125 micron |
| Fiber Type | Singlemode |
| Glass Manufacturer | Corning Glass (ClearCurve LBL) |
| Connector Ferrules | Ceramic |
| Fiber Classification | OS2 |
| Jacket Rating | Low Smoke Zero Halogen (LSZH) & Riser (OFNR) |
| Operating Temperature | -20Ā°C ~ +70Ā°C |
| Connector(s) | |
| Connector A | LC/UPC Duplex Male |
| Connector B | LC/UPC Duplex Male |
| Performance | |
| Insertion Loss | <0.3db @ 1550nm |
| Return Loss | ā„50db |
| Interferometer Tested | 100% Tested |
| Approvals | |
| c(UL)us | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Warranty | Limited Lifetime |
| 1.5ft - 0.5m | 3ft - 1m | 5ft - 1.5m | 6ft - 2m | 10ft - 3m | 13ft - 4m | 15ft - 5m | 20ft - 6m | 23ft - 7m | 26ft - 8m | 30ft - 10m | 40ft - 12m | 50ft - 15m | 65ft - 20m | 80ft - 25m | 100ft - 30m | 115ft - 35m | 131ft - 40m | 148ft - 45m | 164ft - 50m |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.05 lbs | 0.08 lbs | 0.08 lbs | 0.09 lbs | 0.13 lbs | 0.16 lbs | 0.20 lbs | 0.23 lbs | 0.29 lbs | 0.30 lbs | 0.38 lbs | 0.44 lbs | 0.52 lbs | 0.77 lbs | 0.86 lbs | 1.03 lbs | 1.17 lbs | 1.39 lbs | 1.70 lbs | 2.05 lbs |
Product Weights
| SKU | Options | Weight |
| FO-208-01.5 | 0.5m | 0.05 lb |
| FO-208-03 | 1m | 0.07 lb |
| FO-208-05 | 1.5m | 0.07 lb |
| FO-208-06 | 2m | 0.1 lb |
| FO-208-10 | 3m | 0.15 lb |
| FO-208-13 | 4m | 0.17 lb |
| FO-208-15 | 5m | 0.2 lb |
| FO-208-20 | 6m | 0.21 lb |
| FO-208-23 | 7m | 0.24 lb |
| FO-208-26 | 8m | 0.26 lb |
| FO-208-30 | 10m | 0.33 lb |
| FO-208-40 | 12m | 0.38 lb |
| FO-208-50 | 15m | 0.5 lb |
| FO-208-65 | 20m | 0.63 lb |
| FO-208-80 | 25m | 0.77 lb |
| FO-208-100 | 30m | 0.95 lb |
| FO-208-115 | 35m | 1.1 lb |
| FO-208-131 | 40m | 1.33 lb |
| FO-208-148 | 45m | 1.4 lb |
| FO-208-164 | 50m | 1.55 lb |
