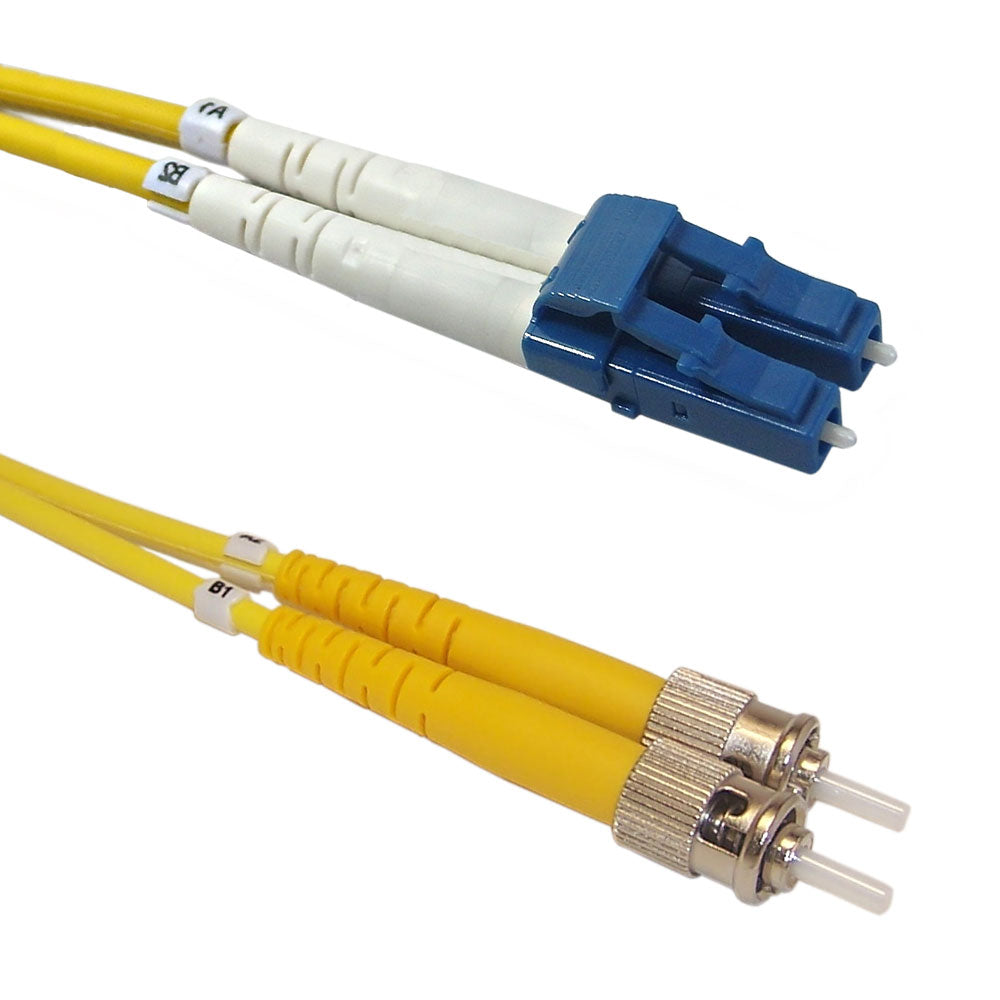

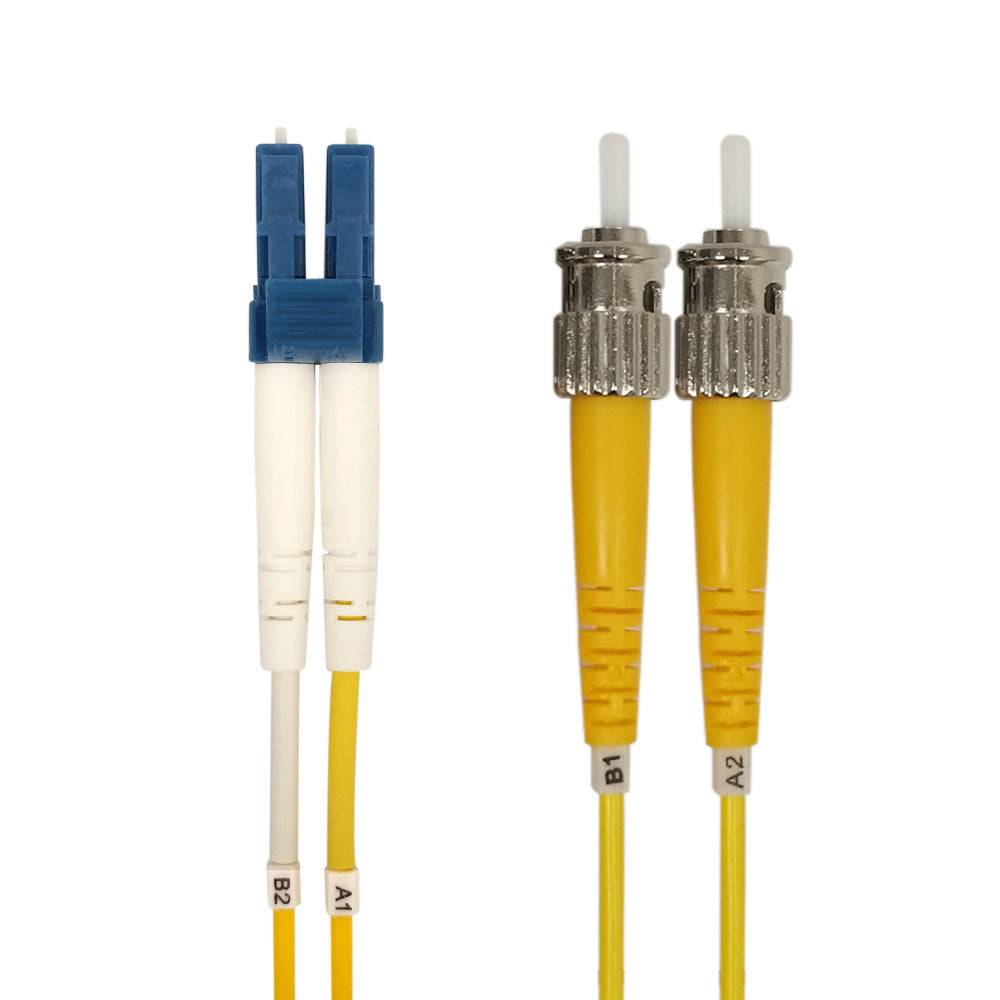

OS2 Singlemode Duplex LC/ST 9 Micron - Fiber Optic Patch Cable - 3mm Jacket - LSZH/OFNR

Overview

These 9 micron (OS2) fiber optic cable is made with Corning ClearCurve LBL glass fiber, which exceeds ITU-T G.657.A2/B2 and remains compatible and fully compliant with ITU-T G.652.D. It has 3mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.

Premium Cables Made with Corning® Glass Fibers All of our singlemode fiber cables are made with Corning® (ClearCurve LBL) glass for optimal performance and quality.	Individually Serialized Cables Each cable is individually serialized with cable labels at both ends which allows us to quickly access saved detailed interferometer test reports, but also makes tracing quick and easy during installation.
Dual Rated LSZH/OFNR Rated Jacket These cables have a dual rating (low-smoke-zero-halogen and riser) ideal for use in data center installations.	100% Fully IL & RL Tested Our singlemode cables are 100% tested for insertion loss and return loss to stringent parameters and come with a test report.
Ceramic Ferrule All our connectors are made with ceramic ferrules which have a high durability and reliable dimensional control to ensure optimal insertion and return loss.	3D Interferometer Tested Each of our cables are individually interferometer tested for radius of curvature, apex offset and fiber height.
Certifications Our fiber optic cable is c(UL)us certified to meet the appropriate safety standards.	Lifetime Warranty Our cables come with a limited lifetime warranty against manufacturing defects.

Application

Specifications

Download attachment - FO-210-xx_spec_sheet

REACH Certificate

RoHS Certificate
