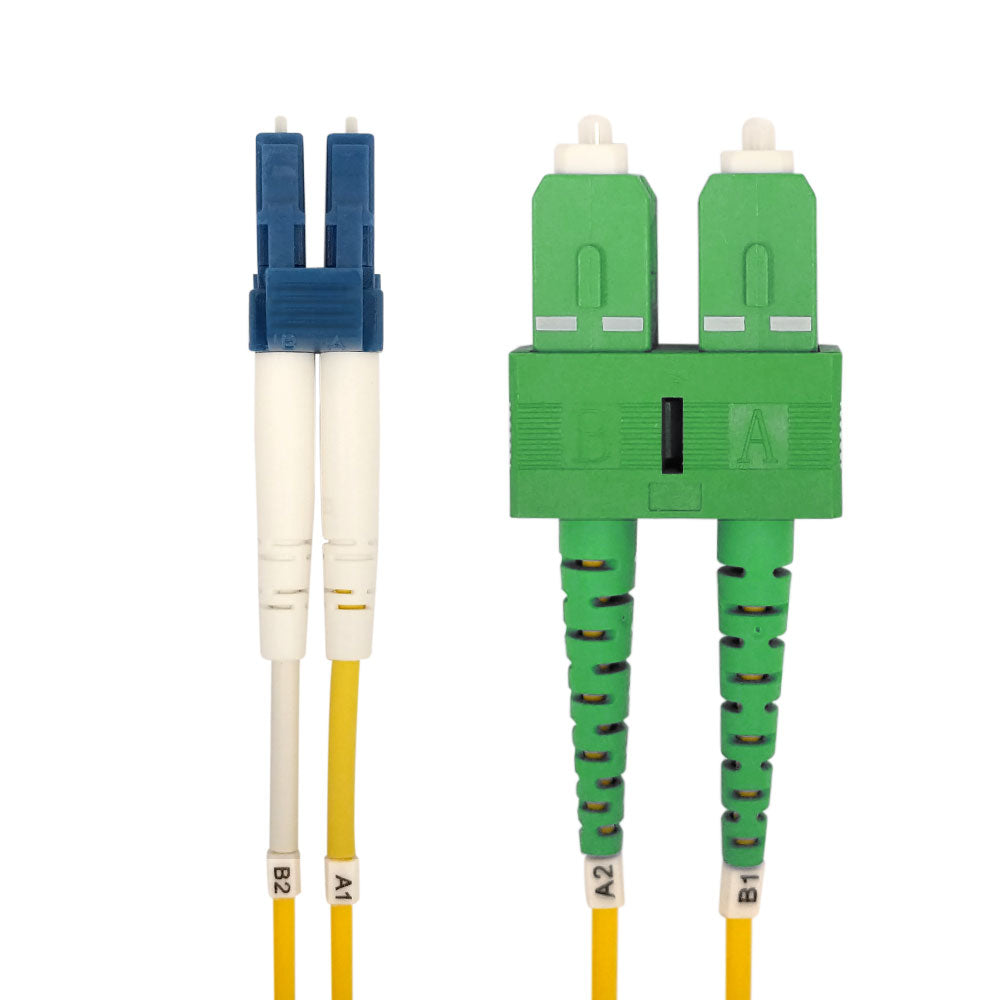

OS2 Singlemode Duplex LC to SC/APC 9 Micron - Fiber Optic Patch Cable - 3mm Jacket - LSZH/OFNR

OS2 Singlemode DuplexSKU: FO-209-03-SCA

Length: 1m
Price:
Sale price$6.22 USD
Stock:
In stock

Description

Overview

These 9 micron (OS2) fiber optic cable is made with Corning ClearCurve LBL glass fiber, which exceeds ITU-T G.657.A2/B2 and remains compatible and fully compliant with ITU-T G.652.D. It has 3mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.

Premium Cables Made with CorningĀ® Glass Fibers

All of our singlemode fiber cables are made with CorningĀ® (ClearCurve LBL)glass for optimal performance and quality.

Individually Serialized Cables

Each cable is individually serialized with cable labels at both ends which allows us to quickly access saved detailed interferometer test reports, but also makes tracing quick and easy during installation.

Dual Rated LSZH/OFNR Rated Jacket

These cables have a dual rating (low-smoke-zero-halogen and riser) ideal for use in data center installations.

100% Fully IL & RL Tested

Our singlemode cables are 100% tested for insertion loss and return loss to stringent parameters and come with a test report.

Ceramic Ferrule

All our connectors are made with ceramic ferrules which have a high durability and reliable dimensional control to ensure optimal insertion and return loss.

3D Interferometer Tested

Each of our cables are individually interferometer tested for radius of curvature, apex offset and fiber height.

Certifications

Our fiber optic cable is c(UL)us certified to meet the appropriate safety standards.

Lifetime Warranty

Our cables come with a limited lifetime warranty against manufacturing defects.

Application

Specifications

Physical Characteristics
Color Yellow
Cable Diameter 3mm
Fiber Size 9/125 micron
Fiber Type Singlemode
Glass Manufacturer Corning Glass (ClearCurve LBL)
Connector Ferrules Ceramic
Fiber Classification OS2
Jacket Rating Riser(OFNR) & Low Smoke Zero Halogen (LSZH)
Operating temperature -10 Ā°C ~ +70 Ā°C
Connector(s)
Connector A LC/UPC Duplex Male
Connector B SC/APC Duplex Male
Performance
Insertion Loss <0.3db @ 1550nm
Return Loss ā‰„50db
Interferometer Tested 100% Tested
Environmental
RoHS Yes
Conflict Minerals Yes
Packaging Information
Warranty Limited Lifetime
Cable Weights
3ft - 1m 6ft - 2m 10ft - 3m 15ft - 5m 30ft - 10m 50ft - 15m 65ft - 20m 100ft - 30m
0.08 lbs 0.09 lbs 0.13 lbs 0.20 lbs 0.38 lbs 0.52 lbs 0.77 lbs 1.03 lbs
SKU Options Weight
FO-209-03-SCA 1m 0.07 lb
FO-209-06-SCA 2m 0.1 lb
FO-209-10-SCA 3m 0.15 lb
FO-209-15-SCA 5m 0.2 lb
FO-209-30-SCA 10m 0.33 lb
FO-209-50-SCA 15m 0.5 lb
FO-209-65-SCA 20m 0.63 lb
FO-209-100-SCA 30m 0.95 lb
