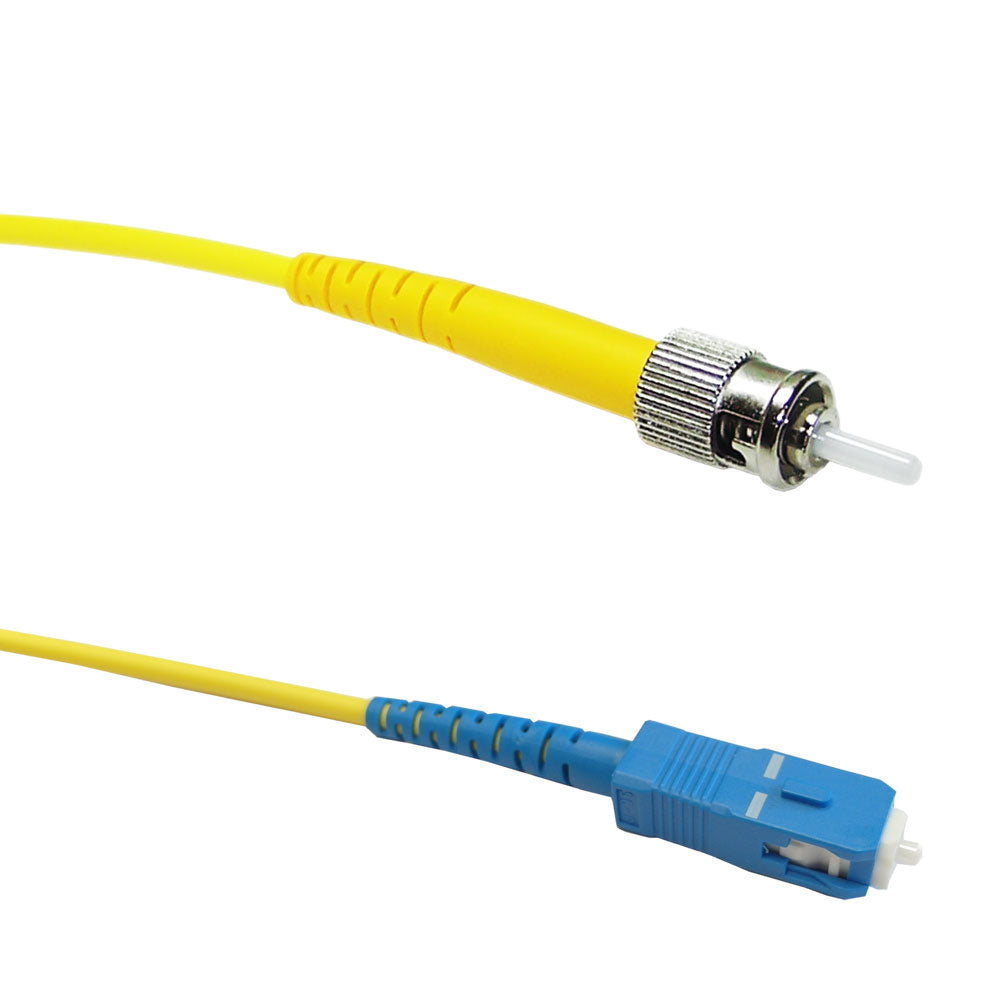

OS2 Singlemode Simplex SC/ST 9 Micron - Fiber Optic Patch Cable - 3mm Jacket - LSZH/OFNR

OS2 Singlemode SimplexSKU: FO-603-03

Length: 1m
Price:
Sale price$4.30 USD
Stock:
In stock

Description

These 9 micron (OS2) fiber optic cable is made with Corning ClearCurve LBL glass fiber, which exceeds ITU-T G.657.A2/B2 and remains compatible and fully compliant with ITU-T G.652.D. It has 3mm jacket and rated low smoke zero halogen (LSZH) & riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.

Physical Characteristics
Color Yellow
Cable Diameter 3mm
Fiber Size 9/125 micron
Fiber Type Singlemode
Glass Manufacturer Corning Glass (ClearCurve LBL)
Connector Ferrules Ceramic
Fiber Classification OS2
Jacket Rating Riser(OFNR) & Low Smoke Zero Halogen (LSZH)
Operating temperature -10 ¬įC ~ +70 ¬įC
Connector(s)
Connector A SC Simplex Male
Connector b ST Simplex Male
Performance
Insertion Loss <0.3db @ 1550nm
Return Loss ‚ȧ55db
Speed 10 Gbps
Environmental
RoHS Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft - 1m 6ft - 2m 10ft - 3m 15ft - 5m 30ft - 10m 50ft - 15m
0.04 lbs 0.05 lbs 0.06 lbs 0.09 lbs 0.20 lbs 0.22 lbs
