Description

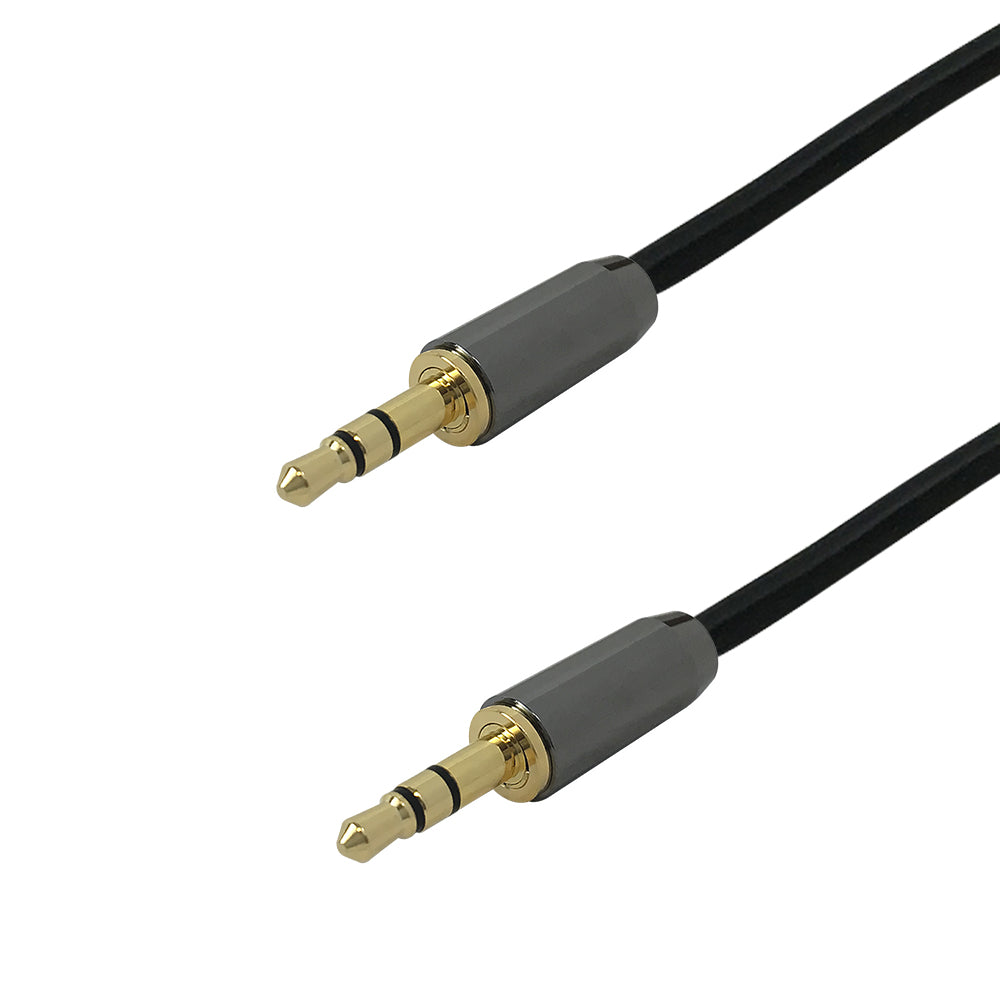

This plenum stereo audio cable has a 3.5mm male on one end and a 3.5mm male on the other. It is typically used to connect 3.5mm devices such as PCs and stereo systems to 3.5mm stereo inputs.
- Balanced cable is used to capture all highs & lows for optimum audio performance
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket
- High quality, 24K gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT6 plenum fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Cable Diameter | 4.0 mm |
| Wire Gauge | 22AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | CMP/CL3 (Plenum Rated) |
| Cable Shielding | 90% Copper Braid, 100% Mylar Foil |
| Strain Relief | Molded PVC |
| Connectors | |
| Connector A | 3.5mm Stereo Male |
| Connector B | 3.5mm Stereo Male |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|
| 0.35 lbs | 0.45 lbs | 0.55 lbs | 0.70 lbs | 1.00 lbs | 1.30 lbs | 1.75 lbs | 3.00 lbs | 3.50 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| 35MM1-03PL | 3ft | 0.19 lb |
| 35MM1-06PL | 6ft | 0.34 lb |
| 35MM1-10PL | 10ft | 0.53 lb |
| 35MM1-15PL | 15ft | 0.77 lb |
| 35MM1-25PL | 25ft | 1.25 lb |
| 35MM1-35PL | 35ft | 1.73 lb |
| 35MM1-50PL | 50ft | 2.45 lb |
| 35MM1-75PL | 75ft | 3.65 lb |
| 35MM1-100PL | 100ft | 4.85 lb |
