Description

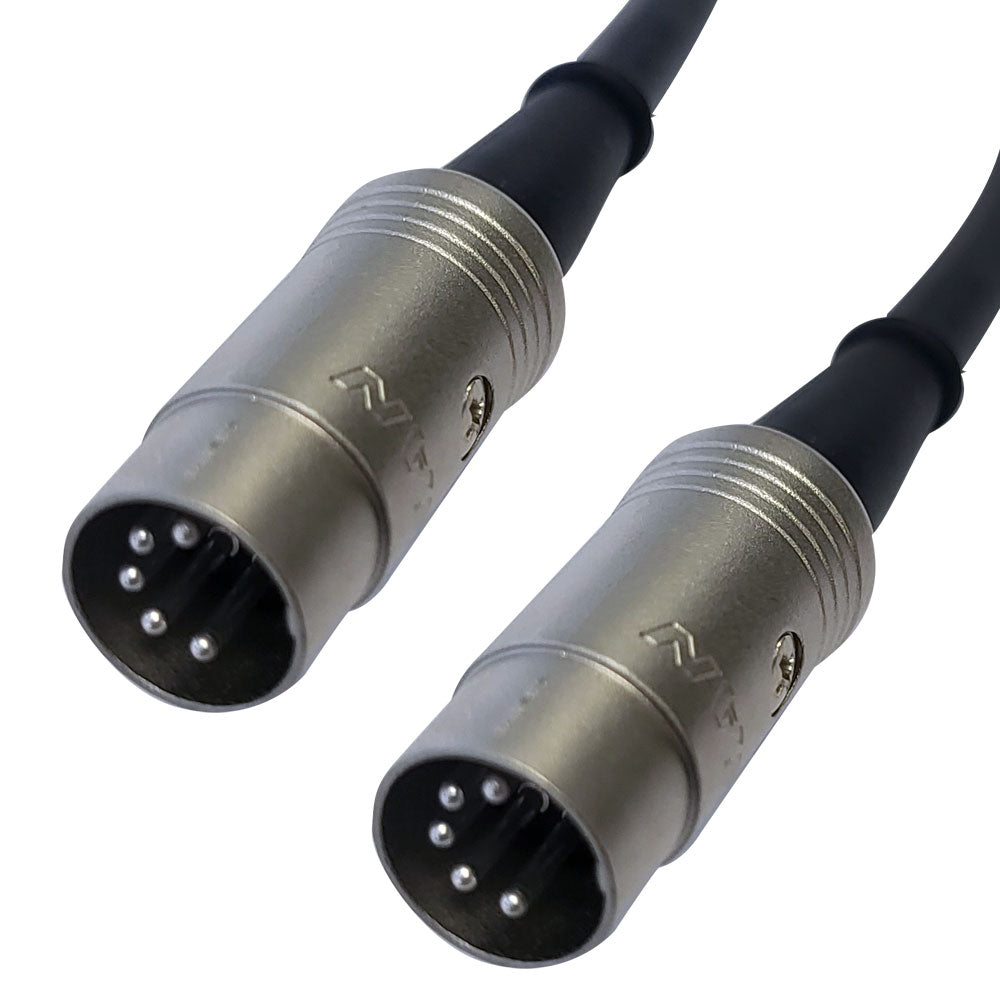

This premium 5-pin MIDI cable has a din 5-pin male on one end and a din 5-pin male on the other. It is typically used to connect MIDI equipment such as electronic musical instruments and computers.
- Hi-flex cable is used to capture all highs & lows for optimum audio performance
- Multi-stranded copper center conductors and a durable cable jacket is ultra Flexible to maximize mobility
- High quality, shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead-free solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Contact Plating | Nickel |
| Cable Diameter | 6.8mm |
| Wire Gauge | 24AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 90% Bare Copper Braid, 100% Aluminum Mylar Foil |
| Strain Relief | Metal Shell |
| Connectors | |
| Connector A | Din 5-Pin Male |
| Connector B | Din 5-Pin Male |
| Approvals | |
| cUL | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.45 lbs | 0.55 lbs | 0.70 lbs | 1.00 lbs | 1.30 lbs | 1.75 lbs | 2.75 lbs | 3.52 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| MIDI-MM-01.5 | 1.5ft | 0.11 lb |
| MIDI-MM-03 | 3ft | 0.19 lb |
| MIDI-MM-06 | 6ft | 1.02 lb |
| MIDI-MM-10 | 10ft | 0.53 lb |
| MIDI-MM-15 | 15ft | 0.77 lb |
| MIDI-MM-25 | 25ft | 1.25 lb |
| MIDI-MM-35 | 35ft | 1.73 lb |
| MIDI-MM-50 | 50ft | 2.45 lb |
| MIDI-MM-75 | 75ft | 12.75 lb |
| MIDI-MM-100 | 100ft | 4.85 lb |
