Premium Phantom Cables Balanced XLR Female To 3.5mm Locking Male Cable
Premium Phantom Cables Balanced XLR Female To 3.5mm Locking Male Cable

Premium Phantom Cables Balanced XLR Female To 3.5mm Locking Male Cable

XLR CablesSKU: XLRF-35MML-01
No reviews
Length: 1ft
Price:
$11.19 USD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities ship out same day or next day. Contact us for details: sales@infinitecables.com

Description

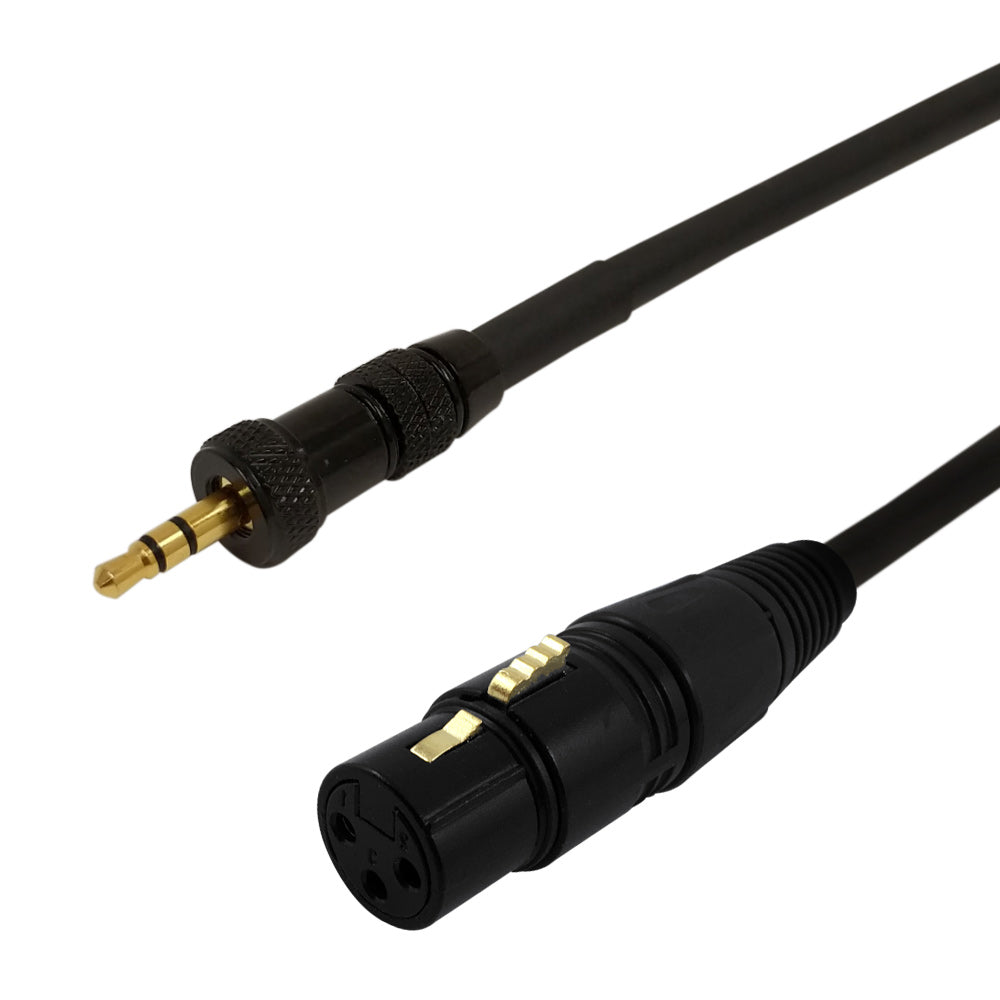

This audio cable has an XLR female on one end and a 3.5mm locking male on the other. It is typically used to connect a microphone to a wireless transmitter or camera.

  • Hi-flex balanced cable is used to capture all highs & lows for optimum audio performance
  • Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
  • Multi-stranded copper center conductors and a durable cable jacket is ultra Flexible to maximize mobility
  • High quality, 24K gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
  • FT4 riser fire rated jacket for in-wall use
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics
Color Black
Connector Plating Gold
Cable Diameter 4.0 mm
Wire Gauge 22AWG
Jacket Material PVC - Polyvinyl Chloride
Fire Rating FT4 (Riser CMR)
Cable Shielding 90% Copper Braid, 100% Mylar Foil
Strain Relief Metal Shell
Connectors
Connector A 3.5mm Stereo Locking Male
Connector B XLR Female
Approvals
c(UL)us Yes - Cable
Environmental
RoHS Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 2ft 3ft 4ft 5ft 6ft 8ft 10ft 12ft 15ft
0.25 lbs 0.30 lbs 0.35 lbs 0.40 lbs 0.45 lbs 0.50 lbs 0.55 lbs 0.60 lbs 0.65 lbs 0.70 lbs

Download attachment

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.

Product Weight

1ft
XLRF-35MML-01
0.11 lb
2ft
XLRF-35MML-02
0.15 lb
3ft
XLRF-35MML-03
0.19 lb
4ft
XLRF-35MML-04
0.17 lb
5ft
XLRF-35MML-05
0.29 lb
6ft
XLRF-35MML-06
0.34 lb
8ft
XLRF-35MML-08
0.43 lb
10ft
XLRF-35MML-10
0.53 lb
12ft
XLRF-35MML-12
0.63 lb
15ft
XLRF-35MML-15
0.77 lb
