Description

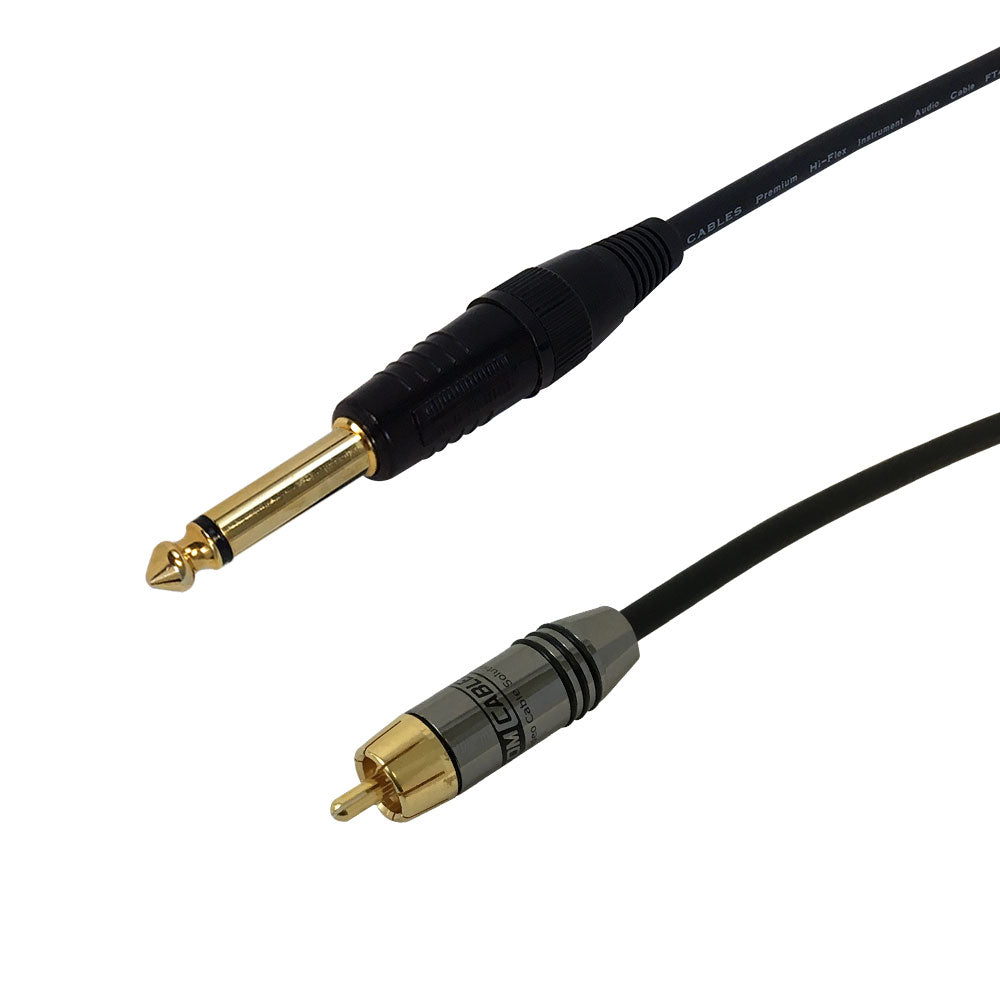

This instrument audio cable has a1/4 inch TS mono male to an RCA male. It is typically used to interconnect single channel audio equipment.
- 18 AWG OFC (oxygen-free copper) center conductor reduces resistance for increased performance
- Low-capacitance cable allows the cleanest highs possible
- Multi-strand (127/0.08) copper center conductor and a durable jacket makes for a flexible cable to maximize longevity and mobility
- High quality, gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Contact Plating | Gold |
| Cable Diameter | 6.03mm |
| Wire Gauge | 18AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95%Tinned Copper Braid + 100% Mylar Foil |
| Strain Relief | Molded PVC |
| Connectors | |
| Connector A | 1/4Inch TS Mono Male |
| Connector B | RCA Male |
| Approvals | |
| cUL | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.45 lbs | 0.55 lbs | 0.70 lbs | 1.00 lbs | 1.30 lbs | 1.75 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| TSM-RCAM-01.5 | 1.5ft | 0.11 lb |
| TSM-RCAM-03 | 3ft | 0.19 lb |
| TSM-RCAM-06 | 6ft | 0.34 lb |
| TSM-RCAM-10 | 10ft | 0.53 lb |
| TSM-RCAM-15 | 15ft | 0.77 lb |
| TSM-RCAM-25 | 25ft | 1.25 lb |
| TSM-RCAM-35 | 35ft | 1.73 lb |
| TSM-RCAM-50 | 50ft | 2.45 lb |
