Description

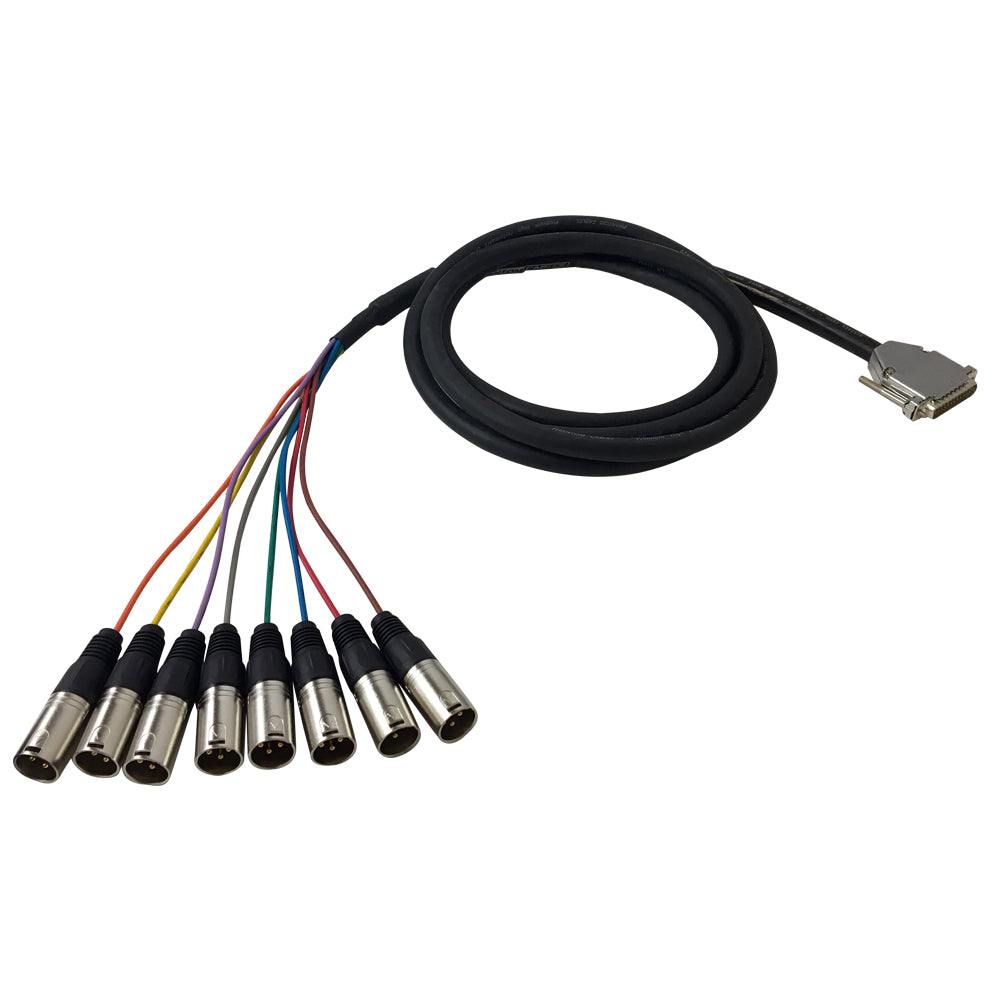

This audio snake cable has a DB25 male on one end and 8 XLR males on the other. It is typically used to connect Tascam compatible equipment such as pro audio mixers, patch bays and recorders.
- Premium twisted 24 awg Oxygen Free copper conductor (OFHC) cable is used to capture all highs & lows for optimum audio performance
- Dual 100% aluminum mylar foil shields maximize EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- High quality shielded connectors with gold plated pins, allow for optimum connectivity and maintain a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Contact Plating (DB25) | Gold |
| Connector Plating (XLR) | Nickel |
| Contact Plating (XLR) | Gold |
| Cable Shielding | Overall Foil Shielded plus Individually Shielded Pairs with Aluminum-Polyester Foil |
| Wire Gauge | 24AWG |
| Pinout | Tascam |
| Connectors | |
| Connector A | 1 - DB25 Male |
| Connector B | 8 - XLR Male |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|
| 2.45 lbs | 2.90 lbs | 3.50 lbs | 4.25 lbs | 5.75 lbs | 7.25 lbs | 9.50 lbs |
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| S8-25-XLRM-03 | 3ft | 0.19 lb |
| S8-25-XLRM-06 | 6ft | 0.34 lb |
| S8-25-XLRM-10 | 10ft | 0.53 lb |
| S8-25-XLRM-15 | 15ft | 0.77 lb |
| S8-25-XLRM-25 | 25ft | 1.25 lb |
| S8-25-XLRM-35 | 35ft | 1.73 lb |
| S8-25-XLRM-50 | 50ft | 2.45 lb |
