Description

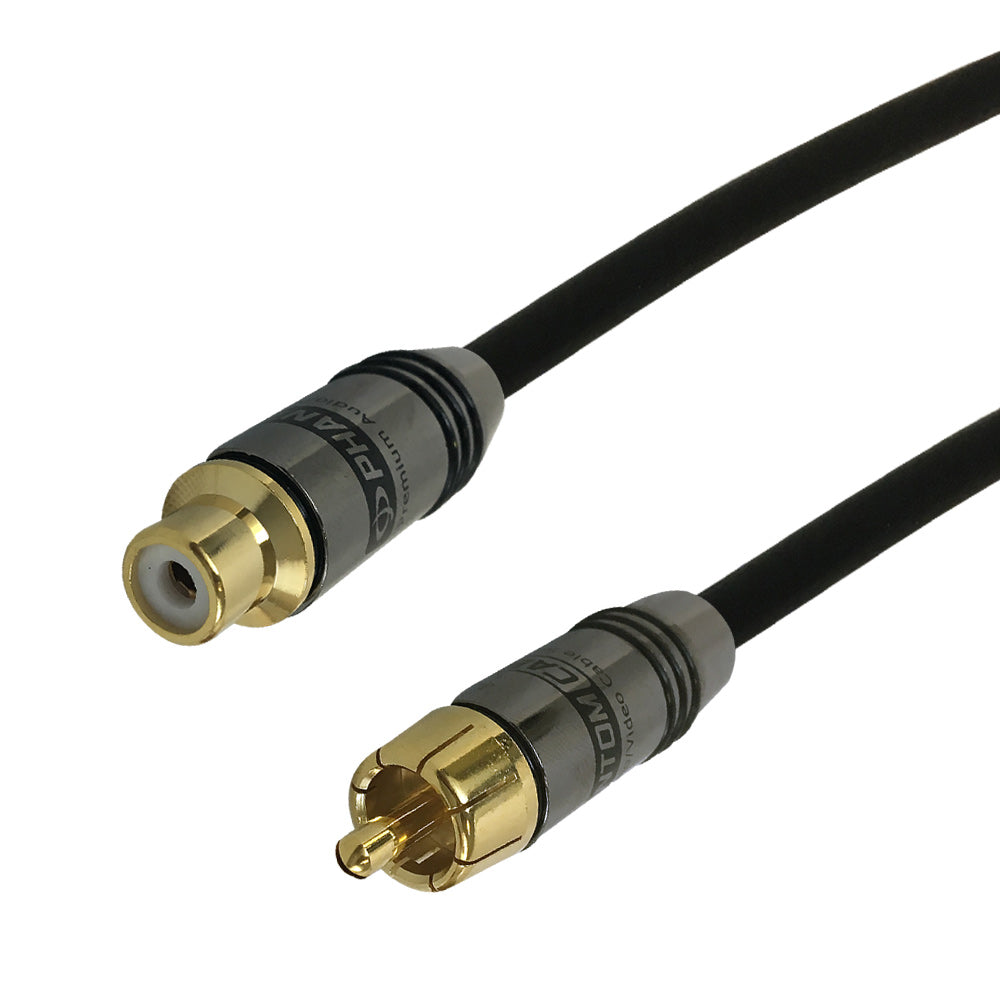

This cable consists of RCA male connector on one end, and a RCA female connector on the other end. It is typically used to extend a composite video cable.
- Constructed of low-loss, High Definition 75 ohm multi-stranded, heavy gauge cable for premium performance and maximum flexibility
- FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
- Cables nominal capacitance is an exceptional 18.6 pf/ft and has a nominal attenuation of 3.00 dB/100ft
- Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
- Durable bonded cable jacket is ultra flexible to maximize mobility
- High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
- The connector backshells are made of a durable, zinc plated metal alloy
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 22AWG Stranded |
| Cable Type | RG59 |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95% Bare Copper Braid, 100% Aluminum Mylar Foil |
| Insulation | Foam Polyethylene |
| Strain Relief | Metal Shell |
| Performance | |
| Impedance | 75 Ohm |
| Velocity of Propagation | 78% |
| Capacitance | 18.6 PF/FT |
| Connector(s) | |
| Connector A | 1 - RCA Male |
| Connector B | 1 - RCA Female |
| Approvals | |
| c(UL)us | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 - Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| RCA1PH3-03 | 3ft | 0.5 lb |
| RCA1PH3-06 | 6ft | 0.34 lb |
| RCA1PH3-10 | 10ft | 0.53 lb |
| RCA1PH3-15 | 15ft | 0.77 lb |
| RCA1PH3-25 | 25ft | 1.25 lb |
| RCA1PH3-35 | 35ft | 1.73 lb |
| RCA1PH3-50 | 50ft | 2.45 lb |
| RCA1PH3-75 | 75ft | 3.65 lb |
| RCA1PH3-100 | 100ft | 4.85 lb |
