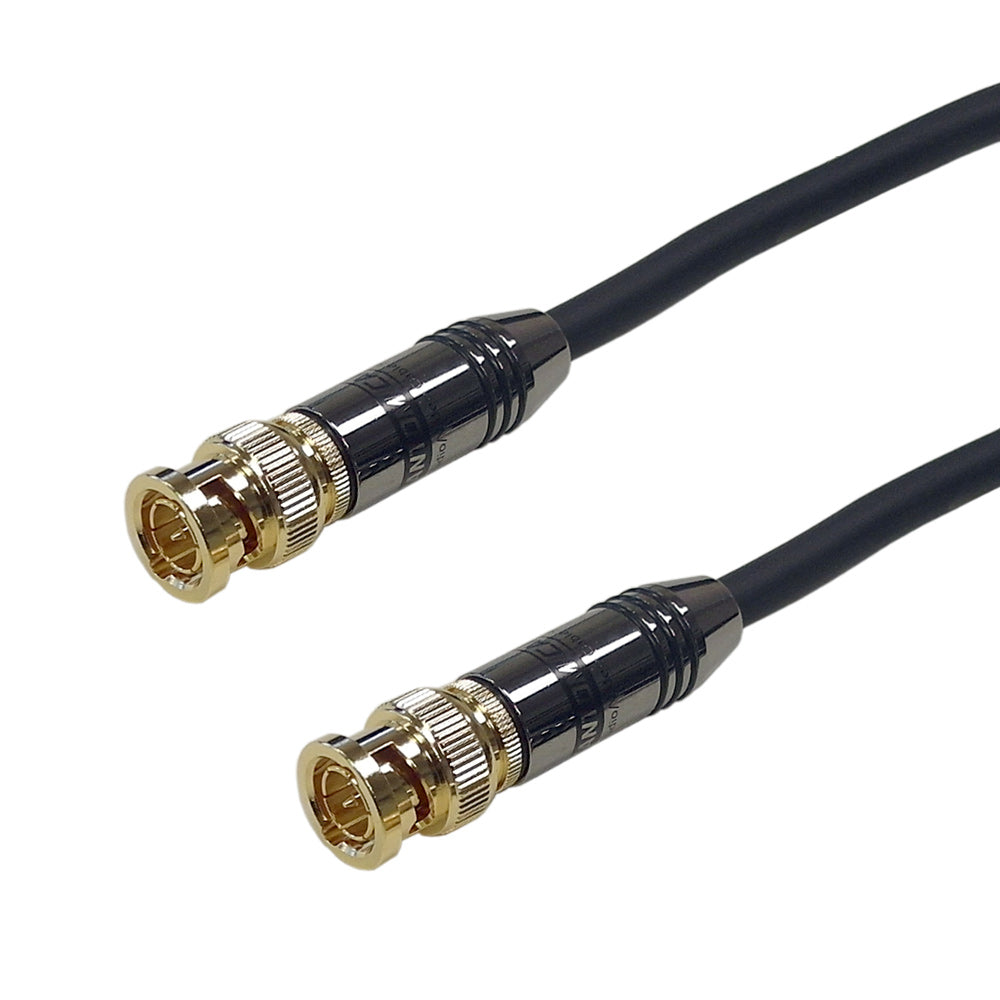

Premium Phantom Cables RG6 Composite BNC Cable Male to Male FT4

BNC CablesSKU: BNC1-03
No reviews

Length: 3ft
Price:
Sale price$13.00 USD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities typically ship out within 1-2 business days. Contact us for detailssales@infinitecables.com

Description

This premium double shielded RG6 cable consists of BNC male connectors on both ends. It is typically used to connect a video cameras BNC composite output to a monitors BNC composite input.

  • Constructed of low-loss, High Definition 75 ohm RG6 solid 18 awg cable
  • FPE dielectric insulation allows for a stable velocity of propagation therefore minimizing possible timing delays
  • Dual shielding includes a 100% aluminum/mylar foil, plus a 95% tinned copper braid
  • Cables nominal capacitance is an exceptional 17.3 pf/ft and has a nominal attenuation of 3.10 dB/100ft @ 200Mhz
  • High quality, gold plated, heavy duty shielded connectors optimizes connectivity and maintains a clear signal integrity
  • The connector backshells are made of a durable, zinc plated metal alloy
  • FT4 riser fire rated jacket for in-wall use
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity

Physical Characteristics
Color Black
Connector Plating Gold
Cable Type RG6
Cable Diameter 6.86mm
Wire Gauge 18AWG
Jacket Material PVC - Polyvinyl Chloride
Fire Rating FT4 (Riser CMR)
Cable Shielding Dual Shielding 100% aluminum/mylar foil, plus a 95% tinned copper braid
Connectors
Connector A BNC Male
Connector B BNC Male
Approvals
c(UL)us Yes - Cable
Environmental
RoHS Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
3ft 6ft 10ft 15ft 25ft 35ft 50ft 75ft 100ft 125ft 150ft
0.40 lbs 0.55 lbs 0.75 lbs 1.00 lbs 1.50 lbs 2.00 lbs 2.75 lbs 4.00 lbs 5.25 lbs 6.50 lbs 7.75 lbs

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.

SKU Options Weight
BNC1-03 3ft 0.19 lb
BNC1-06 6ft 0.34 lb
BNC1-10 10ft 0.53 lb
BNC1-15 15ft 0.77 lb
BNC1-25 25ft 1.25 lb
BNC1-35 35ft 1.73 lb
BNC1-50 50ft 2.45 lb
BNC1-75 75ft 3.65 lb
BNC1-100 100ft 4.85 lb
BNC1-125 125ft 6.05 lb
BNC1-150 150ft 7.25 lb
