Premium Phantom Cables Single RCA Female to 2x RCA Male Audio Cable FT4

RCA Audio CablesSKU: RCA1F2M-01.5
No reviews

Length: 1.5ft
Price:
Sale price$16.19 USD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities typically ship out within 1-2 business days. Contact us for detailssales@infinitecables.com

Description

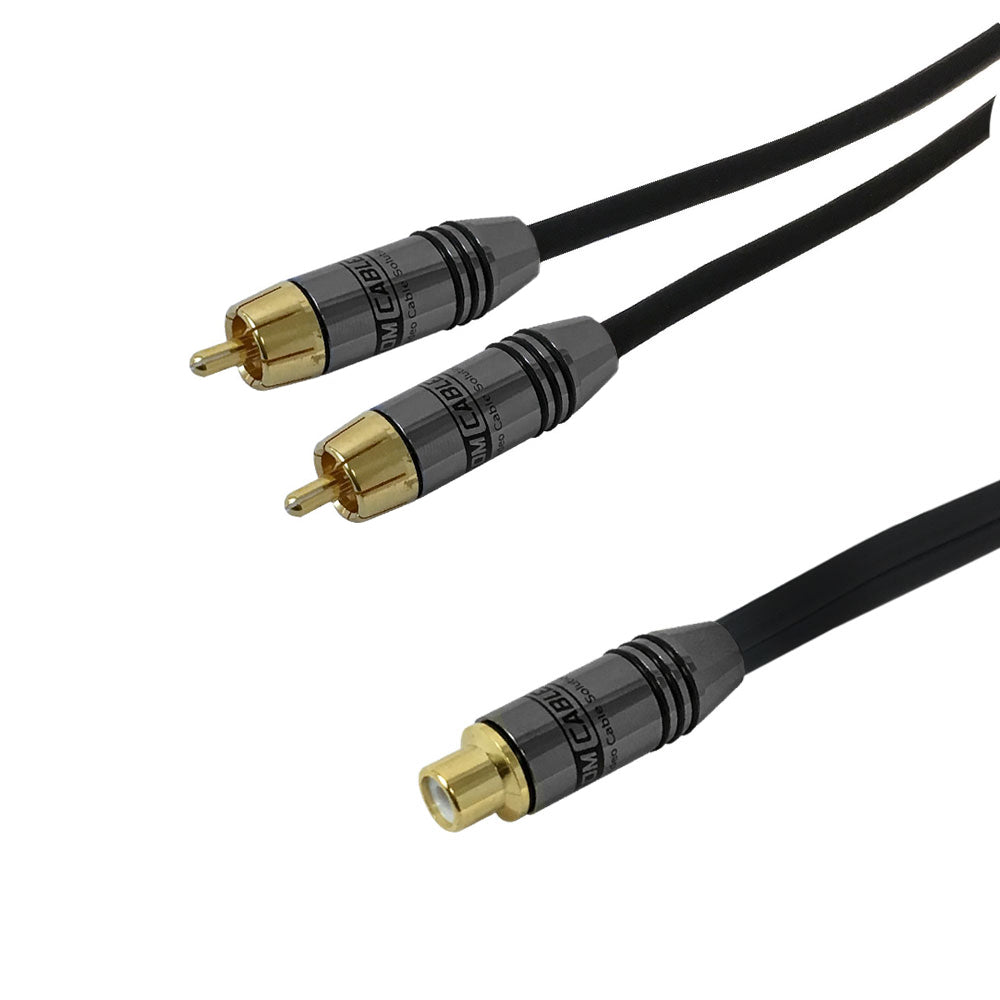

This audio cable has a RCA female on one end and two RCA males on the other. It is typically used to split a mono RCA signal audio signal to left and right channel audio inputs.

  • 22 gauge, heavy duty cable is used to capture all highs & lows for optimum audio performance
  • Constructed of "Siamese" cable for easy installation of left and right audio
  • Constructed of low-loss, stranded 22 gauge OFHC (Oxygen Free Copper) with a foam polyethylene insulation around center conductors
  • 95% braided copper shield surrounds dielectric for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
  • Multi-stranded copper center conductors allows for extra flexible cables
  • High quality, 24K gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
  • FT4 riser fire rated jacket for in-wall use
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity

Physical Characteristics
Length 1.5 foot
Color Black
Connector Plating Gold
Cable Diameter 5.0mm x 10.0mm
Wire Gauge 22AWG
Jacket Material PVC - Polyvinyl Chloride
Fire Rating FT4 (Riser CMR)
Cable Shielding 95% Bare Copper Braid
Strain Relief Metal Shell
Connectors
Connector A RCA Female - Black
Connector B RCA Male - White
Connector C RCA Male - Red
Approvals
cUL Yes - Cable
Environmental
RoHS Yes
Package Information
Package Quantity 1
Product Weight 0.2 lbs [0.09kg]
Warranty Information
Warranty Limited Lifetime

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.

SKU Options Weight
RCA1F2M-01.5 1.5ft 0.11 lb
RCA1F2M-03 3ft 0.5 lb
RCA1F2M-06 6ft 0.34 lb
RCA1F2M-10 10ft 0.53 lb
RCA1F2M-15 15ft 0.77 lb
RCA1F2M-25 25ft 1.25 lb
RCA1F2M-35 35ft 1.73 lb
RCA1F2M-50 50ft 2.45 lb
