Description

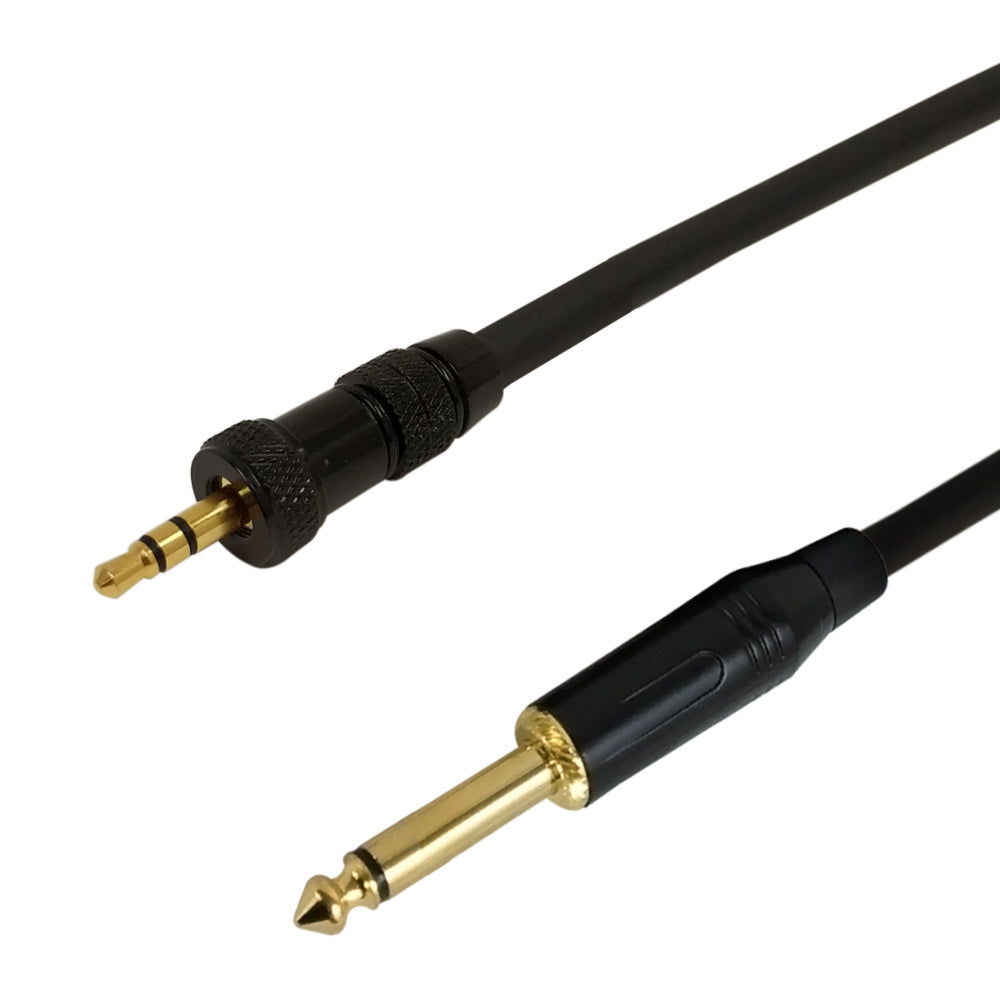

This mono audio cable has a 1/4 inch TS male on one end and a 3.5mm locking male on the other. It is typically used to connect instruments or equipment with mono outputs to a wireless transmitter.
- Hi-flex balanced cable is used to capture all highs & lows for optimum audio performance
- Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- Multi-stranded copper center conductors and a durable cable jacket is ultra Flexible to maximize mobility
- High quality, 24K gold plated shielded connectors allows for optimum connectivity and maintains a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Gold |
| Cable Diameter | 6.0 mm |
| Wire Gauge | 18AWG |
| Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | FT4 (Riser CMR) |
| Cable Shielding | 95% Copper Braid, 100% Mylar Foil |
| Strain Relief | Metal Shell |
| Connectors | |
| Connector A | 3.5mm Stereo Locking Male |
| Connector B | 1/4 Inch TS Male |
| Approvals | |
| c(UL)us | Yes - Cable |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 1.5ft | 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|---|
| 0.30 lbs | 0.35 lbs | 0.45 lbs | 0.55 lbs | 0.70 lbs | 1.00 lbs | 1.30 lbs | 1.75 lbs | 3.00 lbs | 3.50 lbs |
Spec Sheets
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| TSM-35MML-01 | 1ft | 0.11 lb |
| TSM-35MML-02 | 2ft | 0.15 lb |
| TSM-35MML-03 | 3ft | 0.19 lb |
| TSM-35MML-04 | 4ft | 0.17 lb |
| TSM-35MML-05 | 5ft | 0.29 lb |
| TSM-35MML-06 | 6ft | 0.34 lb |
| TSM-35MML-08 | 8ft | 0.43 lb |
| TSM-35MML-10 | 10ft | 0.53 lb |
| TSM-35MML-12 | 12ft | 0.63 lb |
| TSM-35MML-15 | 15ft | 0.77 lb |
