Description
- Description
- Lead-time
- Product Weights
Description

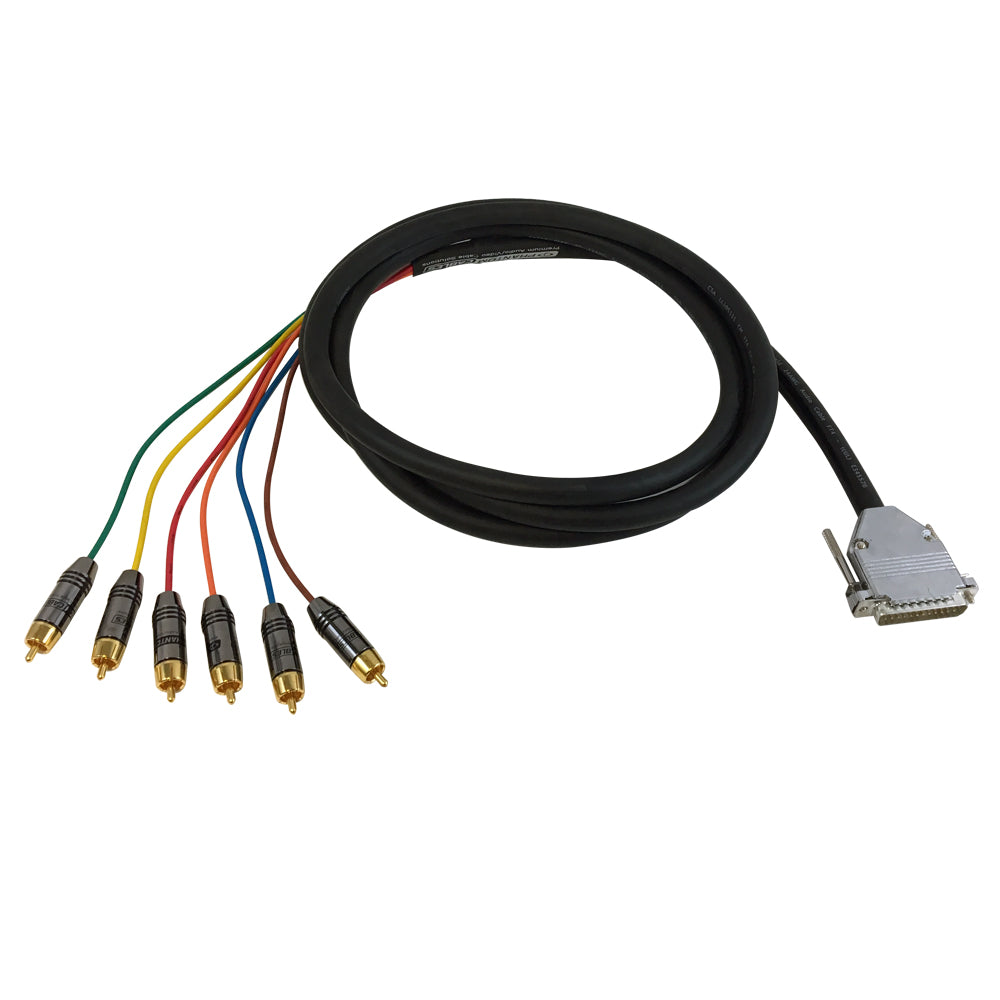

This audio snake cable has a DB25 male on one end and six RCA males on the other. It has a THX pinout and is typically used to connect a 5.1 surround sound source to a preamp or receiver.
- Premium twisted 24 awg Oxygen Free copper conductor (OFHC) cable is used to capture all highs & lows for optimum audio performance
- Dual 100% aluminum mylar foil shields maximize EMI/RFI noise rejection therefore maintaining the cleanest signal possible
- High quality, gold plated shielded connectors allow for optimum connectivity and maintain a clean signal integrity
- FT4 riser fire rated jacket for in-wall use
- Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating (DB25) | Nickel |
| Connector Plating (RCA) | Gold |
| Cable Shielding Plating (RCA) | Overall Foil Shielded plus Individually Shielded Pairs with Aluminum-Polyester Foil |
| Wire Gauge | 24AWG |
| Pinout | THX |
| Connectors | |
| Connector A | 1 - DB25 Male |
| Connector B | 6 - RCA Male |
| Environmental | |
| RoHS | Yes |
| Package Information | |
| Package Quantity | 1 |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft |
|---|---|---|---|---|---|---|
| 1.70 lbs | 2.15 lbs | 2.75 lbs | 3.50 lbs | 5.00 lbs | 6.50 lbs | 8.75 lbs |
Lead-time
This item is assembled once an order is received.
All parts required to assemble this item are in stock and small quantities typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at
Product Weights
| SKU | Options | Weight |
| S6-25-RCA-03 | 3ft | 0.19 lb |
| S6-25-RCA-06 | 6ft | 0.34 lb |
| S6-25-RCA-10 | 10ft | 0.53 lb |
| S6-25-RCA-15 | 15ft | 0.77 lb |
| S6-25-RCA-25 | 25ft | 1.25 lb |
| S6-25-RCA-35 | 35ft | 1.73 lb |
| S6-25-RCA-50 | 50ft | 2.45 lb |
