Premium SVGA + 3.5mm Audio Cable HD15 Male to Male CL2/FT4 Rated

VGA CablesSKU: SVGA1A-01
No reviews

Length: 1ft
Sale price$6.92 USD
In stock

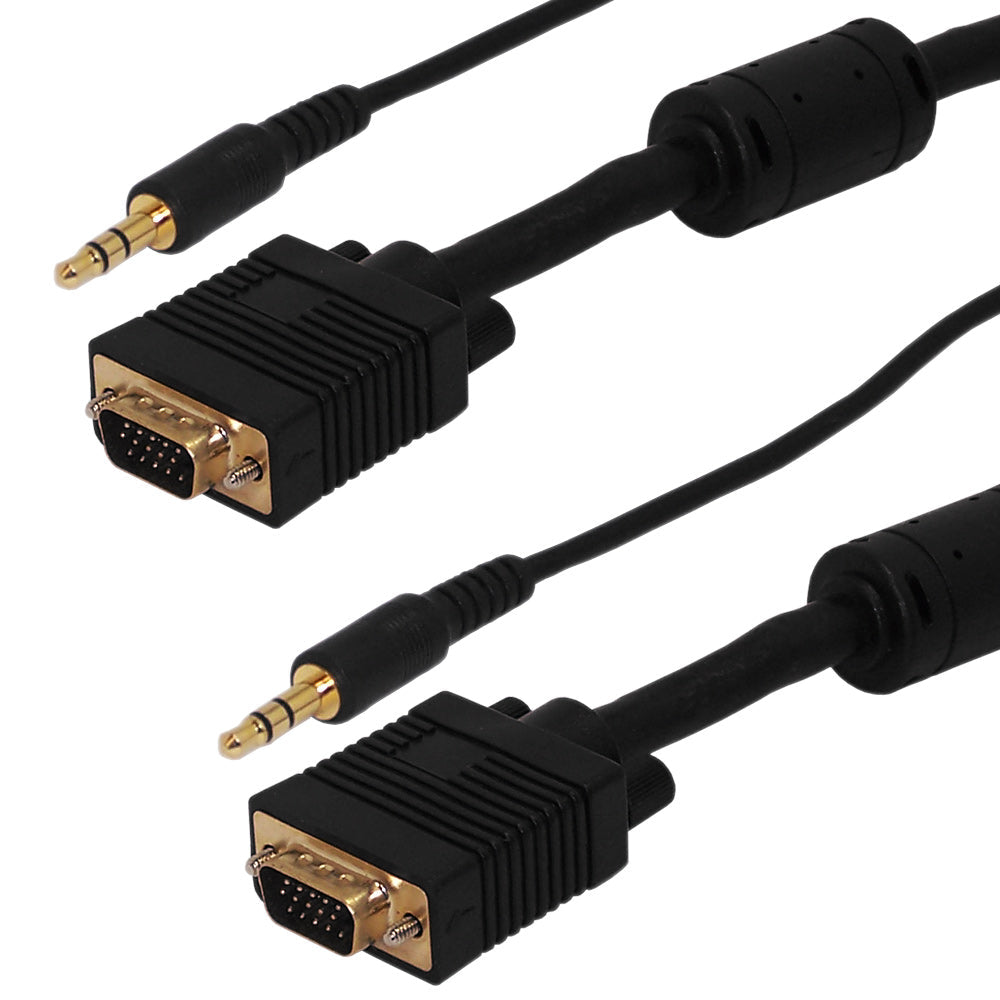

This SVGA cable consists of a HD15 male plus 3.5mm male on one end and a HD15 male plus 3.5mm male on the other end. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as a VGA monitor.

  • Constructed of a combination of 3 mini coax cables and 9 conductors for optimal SVGA video quality
  • This premium double shielded construction is designed to minimize any signal loss or ghosting that may appear with lesser quality cables
  • Ferrite cores placed at either end of the cable further enhance the video quality
  • Fully CL2/FT4 fire rated for in-wall use

Physical Characteristics
Color Black
Connector Plating Gold
Wire Gauge - Coax 3 - 28AWG Mini-Coax
Wire Gauge - Conductors 4.5 - 24AWG Pairs
Wire Gauge - Audio 2C - 24AWG Conductors
Cable Diameter 9.0 mm
Shielding 85% Copper Braid, 100% Mylar Foil, Ferrite Cores
Jacket Fire Rating CL2/FT4
Jacket Material PVC
Strain Relief Molded PVC
Connector A 1 - SVGA HD15 Male
1 - 3.5mm Male
Connector B 1 - SVGA HD15 Male
1 - 3.5mm Male
Resolution 1600 x 1200px
Impedance 75 ohm
c(UL)us Approved Cable
RoHS Yes
Reach Yes
Packaging Information
Package Quantity 1 - Cable
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 3ft 6ft 10ft 15ft 20ft 25ft 30ft 35ft 50ft 75ft 100ft
0.15 lbs 0.55 lbs 0.75 lbs 1.05 lbs 1.45 lbs 2.00 lbs 2.15 lbs 3.00 lbs 3.50 lbs 4.05 lbs 6.00 lbs 7.50 lbs
