Description

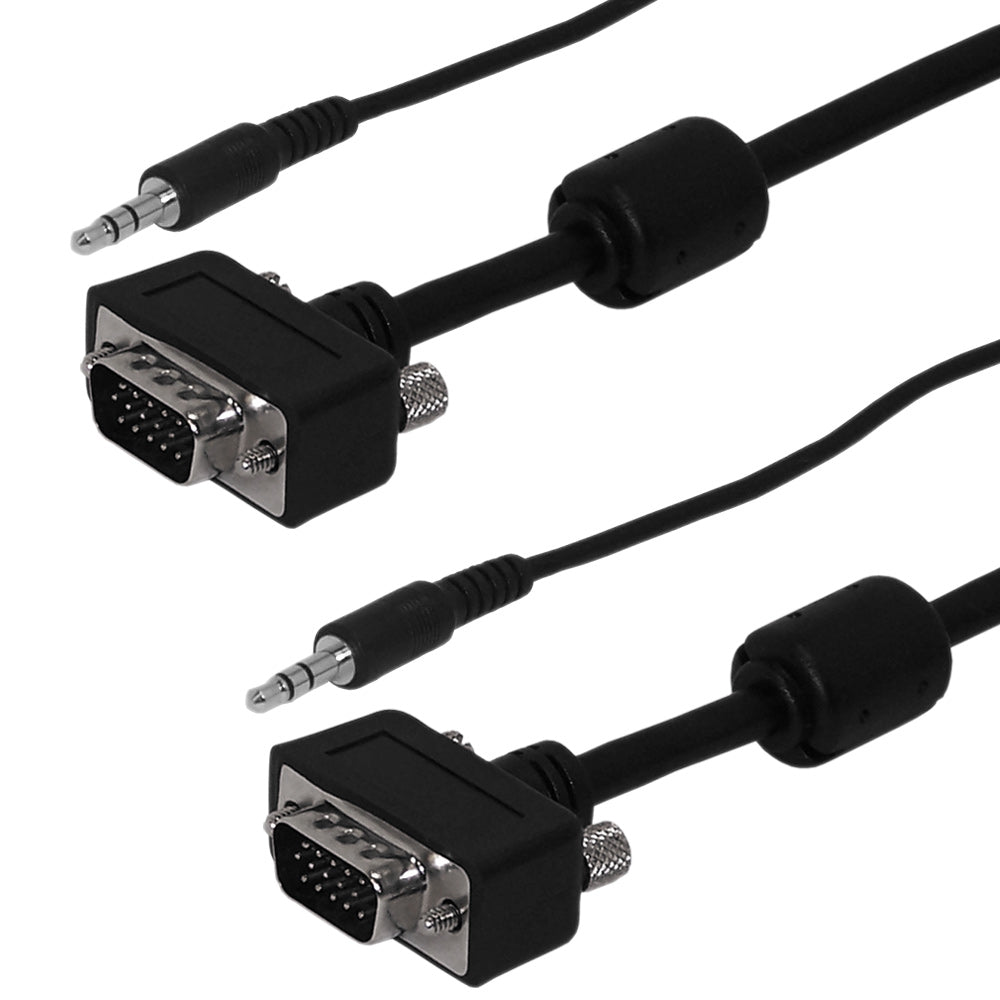

This ultra-thin SVGA cable consists of a HD15 male and 3.5mm stereo male on both ends. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as VGA flat panel monitors.
- Constructed of a combination of 3 mini coax cables and 9 conductors for optimal SVGA video quality
- This premium double shielded construction is designed to minimize any signal loss or ghosting that may appear with lesser quality cables
- Ferrite cores placed at either end of the cable further enhance the video quality
- Fully CL2/FT4 fire rated for in-wall use
| Physical Characteristics | |
|---|---|
| Color | Black |
| Connector Plating | Nickel |
| Wire Gauge - Coax | 3 - 30AWG Mini-Coax |
| Wire Gauge - Conductors | 9 - 30AWG Conductors |
| Wire Gauge - Audio | 2C - 30AWG Conductors |
| Cable Diameter | 6.50 mm |
| Shielding | AEB Braid, 100% Mylar Foil, Ferrite Cores |
| Jacket Fire Rating | CL2/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
| Connector(s) | |
| Connector A | 1 - SVGA HD15 Male 1 - 3.5mm Stereo Male |
| Connector B | 1 - SVGA HD15 Male 1 - 3.5mm Stereo Male |
| Performance | |
| Resolution | 1600 x 1200px |
| Impedance | 75 ohm |
| Approvals | |
| c(UL)us | Approved Cable |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Package Quantity | 1 Cable |
| Warranty Information | |
| Warranty | Limited Lifetime |
| 3ft | 6ft | 10ft | 15ft | 25ft | 35ft | 50ft | 75ft | 100ft |
|---|---|---|---|---|---|---|---|---|
| 0.25 lbs | 0.40 lbs | 0.55 lbs | 0.70 lbs | 1.05 lbs | 1.40 lbs | 1.90 lbs | 2.70 lbs | 3.50 lbs |
Spec Sheets
Product Weights
| SKU | Options | Weight |
| SVGA1A-03UT | 3ft | 0.15 lb |
| SVGA1A-06UT | 6ft | 0.21 lb |
| SVGA1A-10UT | 10ft | 0.33 lb |
| SVGA1A-15UT | 15ft | 0.5 lb |
| SVGA1A-25UT | 25ft | 0.77 lb |
| SVGA1A-35UT | 35ft | 1.1 lb |
| SVGA1A-50UT | 50ft | 1.55 lb |
| SVGA1A-75UT | 75ft | 2.26 lb |
| SVGA1A-100UT | 100ft | 3.0 lb |
