Premium Phantom Cables XLR Male to 2x XLR Female Balanced Splitter Cable

XLR CablesSKU: XLR-MFF-01
No reviews

Length: 1ft
Price:
Sale price$14.81 USD
Stock:
*Parts in stock - see below for lead-time

*Assembled at time of order. Small quantities ship out same day or next day. Contact us for details: sales@infinitecables.com

Description

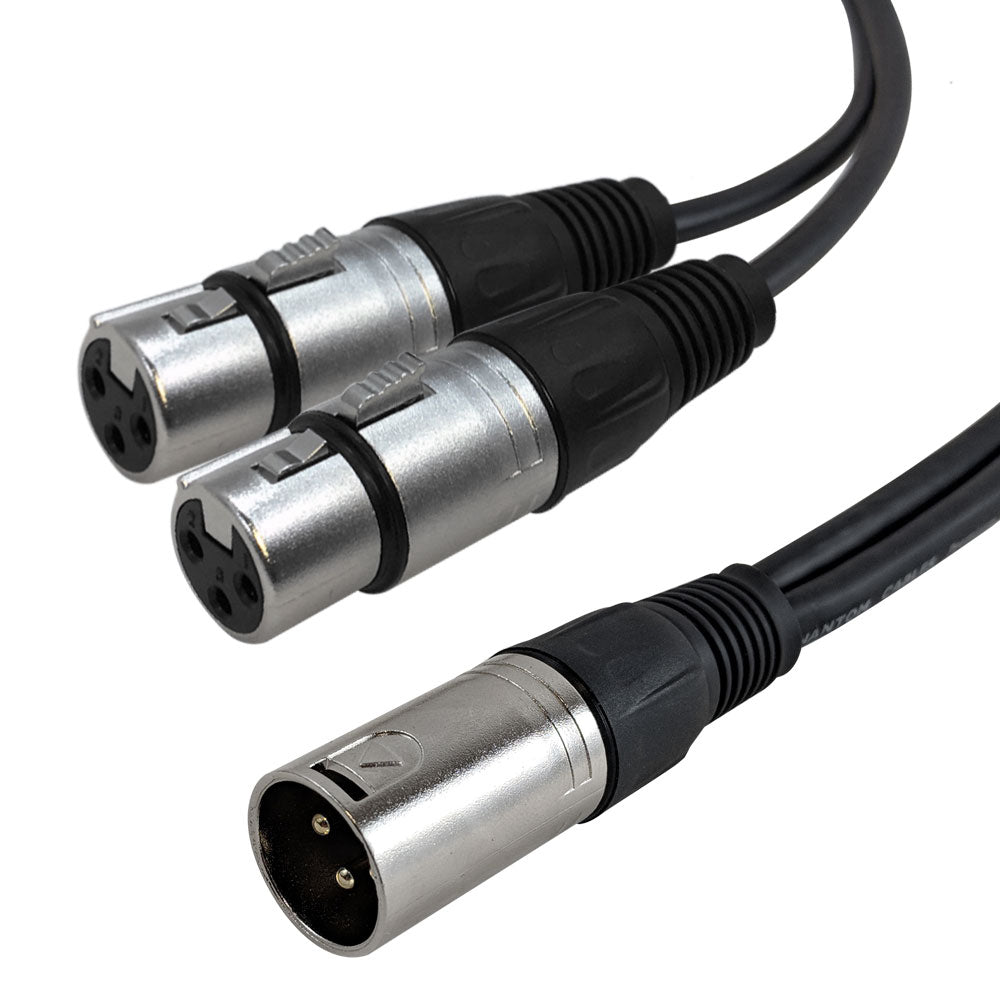

This splitter cable has an XLR male on one end and two XLR females on the other. It is typically used to split a microphone or XLR output into two duplicate balanced channels.

  • Two separate 24AWG cables breakout directly from the source connector
  • Breakout begins directly from the source connector
  • Hi-flex balanced cable is used to capture all highs & lows for optimum audio performance
  • Braided shield surrounds center conductors for maximum EMI/RFI noise rejection therefore maintaining the cleanest signal possible
  • Multi-stranded copper center conductors and a durable cable jacket is ultra-flexible to maximize mobility
  • FT4 riser fire rated jacket for in-wall use
  • Lead Free, "silver laced" solder is used in order to reduce loss and maximize conductivity
Physical Characteristics
Color Black
Connector Plating Nickel
Contact Plating Gold
Cable Diameter 5.0mm
Wire Gauge 24AWG
Jacket Material PVC - Polyvinyl Chloride
Fire Rating FT4 (Riser CMR)
Cable Shielding 90% Bare Copper Braid, 100% Aluminum Mylar Foil
Strain Relief Metal Shell
Connectors
Connector A XLR Male
Connector B XLR Female
Connector C XLR Female
Approvals
cUL Yes - Cable
Environmental
RoHS Yes
Package Information
Package Quantity 1
Warranty Information
Warranty Limited Lifetime
Cable Weights
1ft 3ft 6ft 10ft
0.30 lbs 0.35 lbs 0.45 lbs 0.55 lbs

This item is assembled once an order is received.

All parts required to assemble this item are in stock and small quantities typically ship out the same business day or the next business day.

For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time.
